Hardware Setup - Leightronix UltraNEXUS HD Blade Product Quick Manual

1

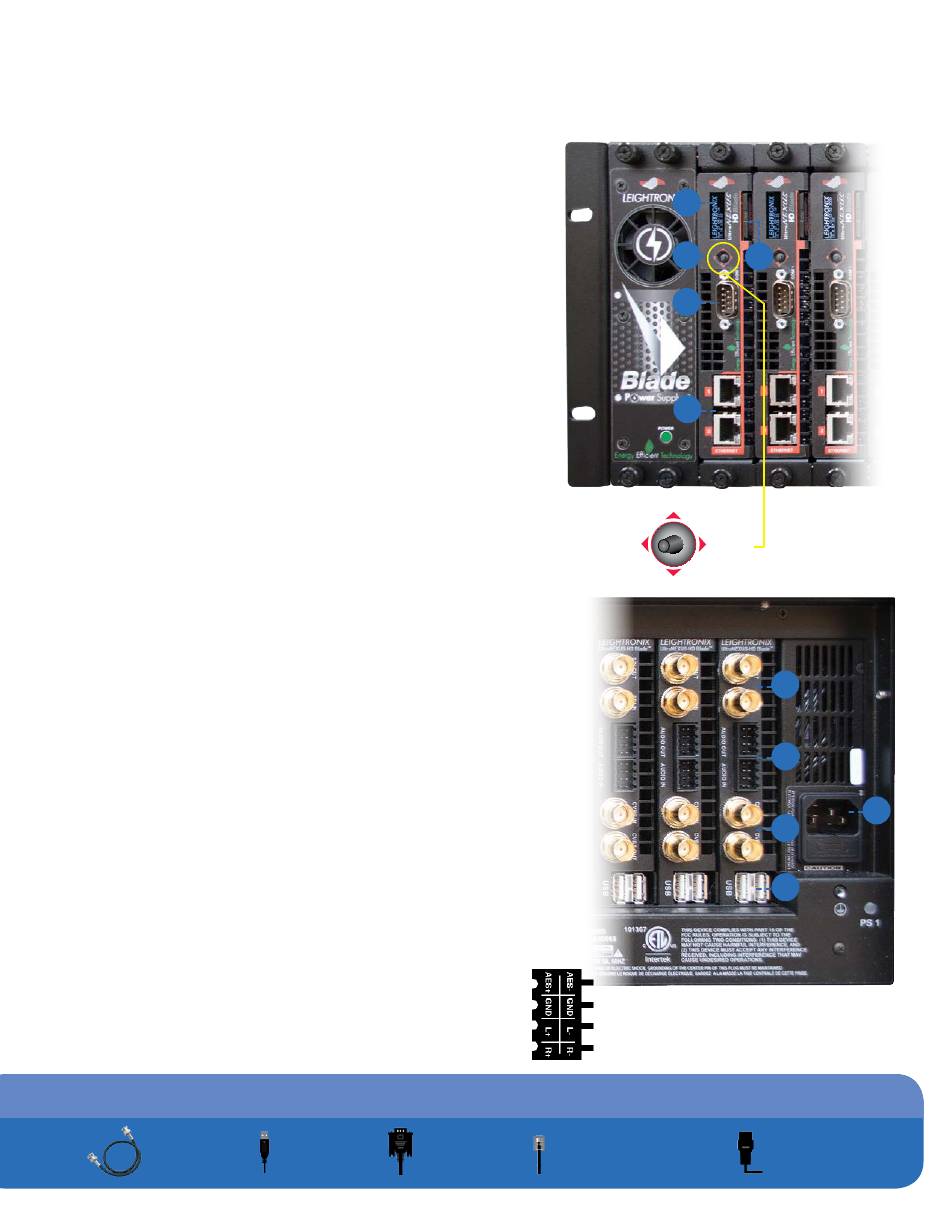

Hardware Setup

1.a
Display — View system status, diagnostic information, and current
configurations.
1.b
Multidirectional Switch — The UltraNEXUS-HD Blade
5-way switch for navigating system status displays and configuration
menus. The multidirectional switch can be pressed up, down, left,
right, and inward (refer to figure 1.b).
1.c
2 Ethernet Ports — Port 1: Using the included Ethernet cable,
connect the UltraNEXUS-HD Blade directly to a 100/1000 switch on
the network. Port 2: To be used for future expansion.
1.d
COM 1 Port — RS-232 serial port with 9-pin male connector for use
with LEIGHTRONIX supported audio/video routers with a maximum
supported matrix size of 250 inputs by 250 outputs.
1.e
Secured Digital (SD) Card — The UltraNEXUS-HD Blade SD card
contains operating system and other system files.
WARNING: Do not remove the SD card during operation.
Serious damage may occur.
2.a
Serial Digital Interface (SDI) Input and Output Connectors —
Connect the SDI source and destination signals to the SDI IN and SDI
OUT connectors respectively.
is highly recommended.
2.b
Audio Input and Output Terminal Blocks — If used, connect AES or
analog audio source and destination signals to the AUDIO IN and AUDIO
OUT terminal blocks (refer to figure 2.b). Detailed information regarding
wire preparation can be found in the full product manual.
2.c
Composite Video Output Connector — If used, connect
composite video destination signal to the CVBS OUT connector. The
BNC composite video outputs a scaled-down version of the high-
definition signal.
2.d
USB 2.0 Ports — Connect up to two (2) LEIGHTRONIX external hard
drive units for up to four terabytes (4TB) of increased digital media
storage capacity.
2.e
Connect the included power cables into the power cord receptacles
of the UltraNEXUS-HD Blade's two redundant power supplies, and
then plug the other ends into a MAINS AC power source.
NOTE: Use of an uninterruptible power supply (UPS) with the
UltraNEXUS-HD Blade is highly recommended.
Components Key
BNC Cables
NOTE: Use of HD-SDI rated coaxial cable
USB Cable Serial Cable
uses a
™
Figure 1.b
UP
UltraNEXUS-HD Blade Audio
Terminal Block Wire Location
Figure 2.b
(see full manual for details)
Ethernet Cable
1
.a
1
1
.b
.e
1
.d
1
.c
RIGHT
Switch is oriented relative to
DOWN
an UltraNEXUS-HD Blade's
display.
LEFT
2
.a
2
.b
2
.c
2
.d
Power Cords
(included)
2
.e
(included)
