Drive Unit / Folder Adaptor Mounting

Once set-up is completed, mounting of the drive unit to the adaptor bar is needed. The drive unit should be pre-attached to the folder

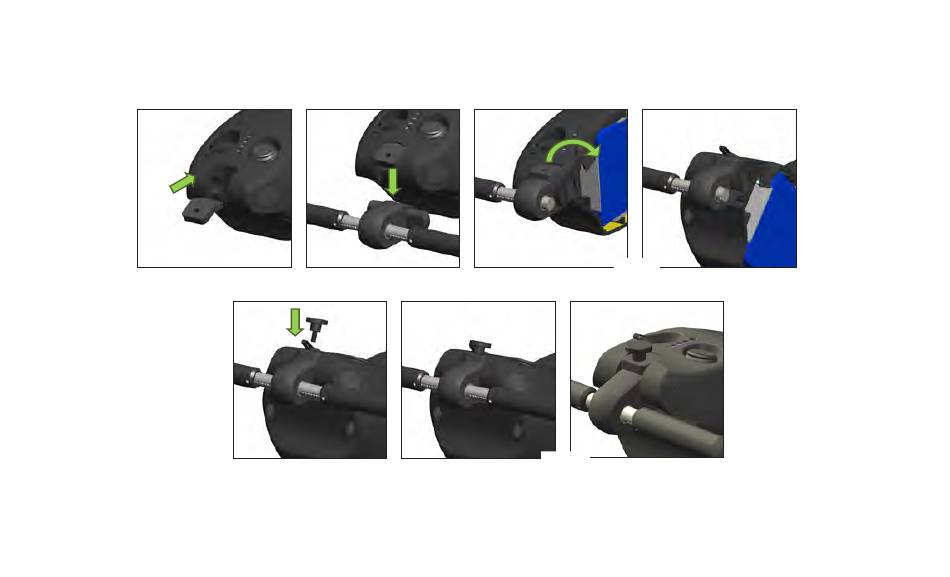

adaptor bar prior to installation onto the wheelchair. First, slide the custom fit rubber stopper into the gap on the drive unit (Fig. I).
Lower the drive unit over the attachment protrusions (Fig. J) and rotate downward until it stops (Fig. K).
Fig. I
Fig. J
Fig. K
Fastened together using the provided thumb screw (Fig. L), thus securing the drive unit to the adaptor bar (Fig. M).
Fig. L
Fig. M
