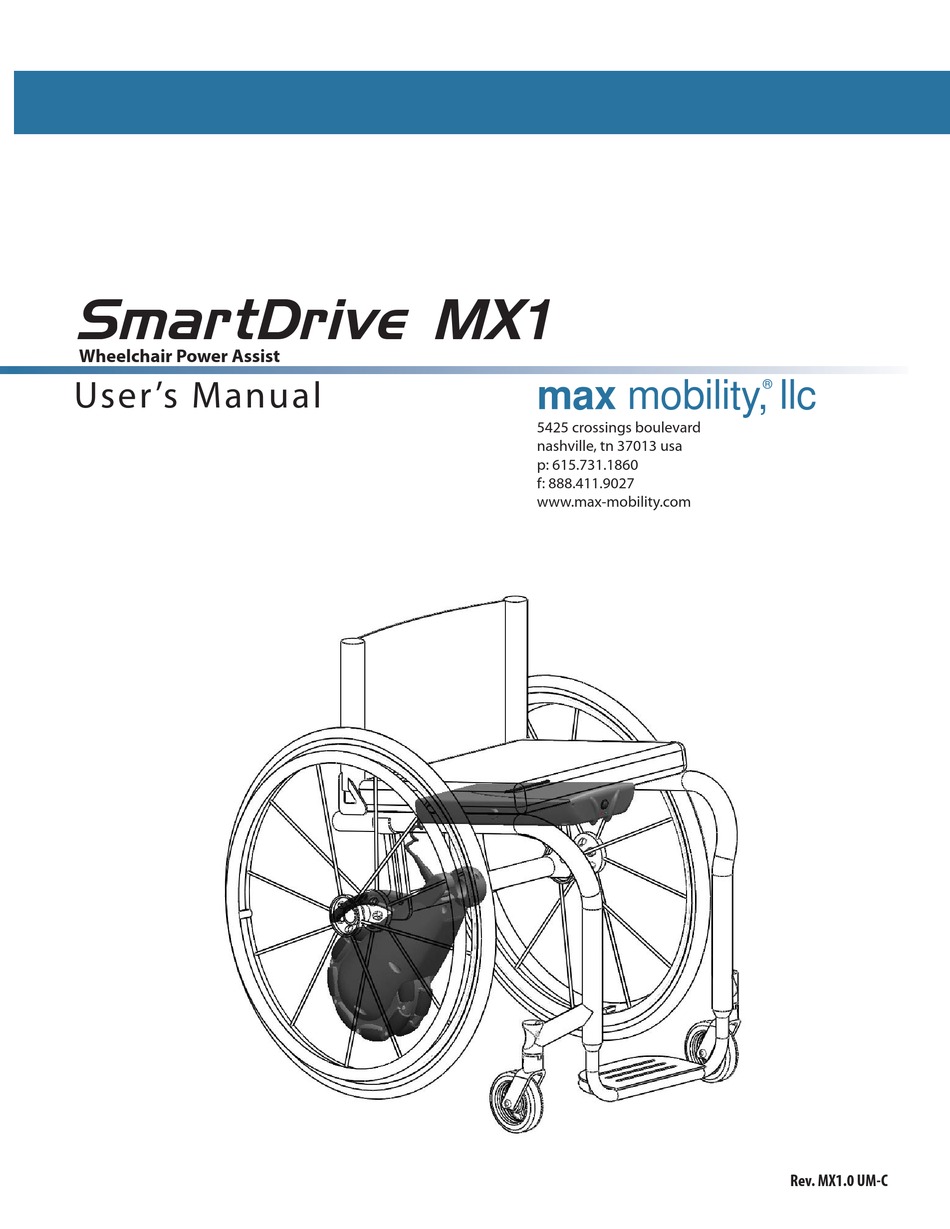

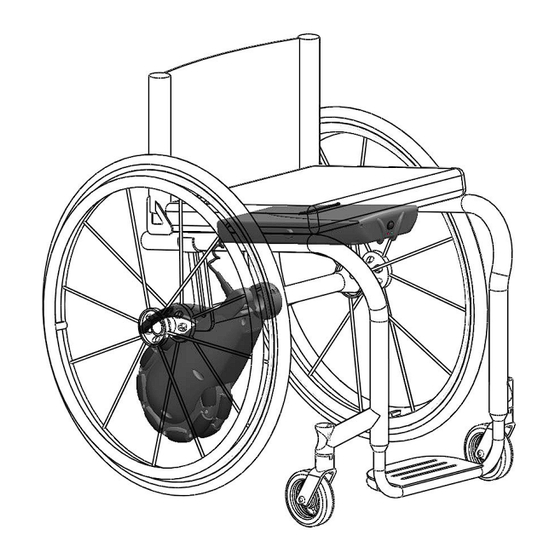

- Page 1 SmartDrive MX1 Wheelchair Power Assist max mobility, llc ® User ’s Manual 5425 crossings boulevard nashville, tn 37013 usa p: 615.731.1860 f: 888.411.9027 www.max-mobility.com Rev. M X1.0 UM-C...
- Page 2 SmartDrive User’s Manual Specifi cation Sheet ® Manufacturer: Max Mobility, LLC SmartDrive MX1 Address: 5425 Crossings Blvd. Wheelchair Power Assist Nashville, TN 37013 Range: 10 miles Maximum speed (level surface): 4.5 mph Maximum speed (6o incline): 4.0 mph Motor power:...
-
Page 3: Table Of Contents
® Table of Contents Specifi cation Sheet Table of Contents Introduction Intended Use of the SmartDrive ..1 Must Read Prior-to-Use Information ..1 Warnings and Safety Precautions ..1 Electromagnetic Interference (EMI) . -
Page 4: Introduction
Any contrary use to the directions of this user’s manual, to the recommendations of one’s mobility equipment dealer, or to the technical limitations defi ned by either Max Mobility and one’s wheelchair manufacturer is considered to be misuse of the SmartDrive. - Page 5 ® max mobility Do not shift your weight or sitting position toward powering off the unit to reduce the chance of ac- the direction you are reaching as one’s wheelchair cident or injury. may tip over backwards or sideways. As for driving up and down slopes, please adhere to the...
-
Page 6: Electromagnetic Interference (Emi)
If any unintentional activation of the SmartDrive occurs, turn off the unit as soon as it is safe to do so and report the incident to Max Mobility [please indicate any source of EMI that was in close proximity when the incident occurred]. - Page 7 ® max mobility...
-
Page 8: Smartdrive Set-Up
SmartDrive User’s Manual 2. SmartDrive Set-Up Adaptive Clamp Mounting Th e SmartDrive adaptive clamp is designed to permanently mount to the axle tube of a wheelchair while presenting a simple means of attaching/removing the drive unit. Remove the backing of the adhesive on both parts of the clamp, and use a 3/16” allen wrench to signifi cantly tighten all the four (4) screws to mount the clamp to the axle receiving tube. -
Page 9: Drive Unit Attachment And Removal
® Drive Unit Attachment and Removal Th e SmartDrive drive unit is designed to easily attach to the adaptive clamp so the user can quickly attach/remove whenever desired or necessary. Use of the handle and the drop and lock interaction make attaching the SmartDrive simple for all users. -
Page 10: Battery Unit Clipping
SmartDrive User’s Manual Battery Unit Clipping Th e Battery Unit is equipped with an oversized clip for attachment to the seat of the wheelchair. Th e unit is made to latch onto and hang below the upholstered seat. Th ere is a connector holder in the back of the battery unit to aid in cord manage- ment when handling the unit, in addition to the handle to assist in carrying/lifting. - Page 11 ® max mobility 4. Finally, take the connector out of the connector storage holder and plug into the top of the drive unit. Th e green LED on top of the drive unit will light up and the unit will beep two (2) times when proper connection is made.
-
Page 12: Operating The Smartdrive
If any malfunctions or push detection/braking/push-button issues are experienced with the SmartDrive, cease use of the device and contact Max Mobility for assistance. Th e SmartDrive is able to recognize all types of pushes. Do not alter the way that you push for this could lead to injuries in the future. -
Page 13: Button Activation
If any malfunctions or push detection/braking/push-button issues are experienced with the SmartDrive, cease use of the device and contact Max Mobility for assistance. Th e acceleration of the SmartDrive could cause the wheelchair to tip-over backwards, causing injury. It is recom- mended that the user lean slightly forward to prevent this tipping. -
Page 14: Powerpush
If any part of the SmartDrive is accidentally gotten wet, the user should cease usage and allow 12 hours for it to air dry before attempting to use again. Th e operating temperatures of the SmartDrive are -25 oC and 50 oC. If any malfunctions or issues are experienced with the SmartDrive, cease use of the device and contact Max Mobility for as- sistance. -
Page 15: Battery
Only use the provided charger to recharge the battery of the SmartDrive. Other chargers may damage your unit, or cause a fi re. Do not throw away the battery unit. Please properly dispose of the battery unit by recycling at the end of its life or send it back to Max Mobility. -
Page 16: Maintenance
4) defects are due to cause beyond control like lightning, abnormal voltage or while in transit at the purchaser’s place of business. Max Mobility is not responsible for any damage to one’s wheelchair caused by the attachment or operation of the SmartDrive. Manufacturer’s Contact Information... - Page 17 5425 crossings boulevard, nashville, tn 37013 usa • p: 615.731.1860 • f: 888.411.9027 • www.max-mobility.com...
