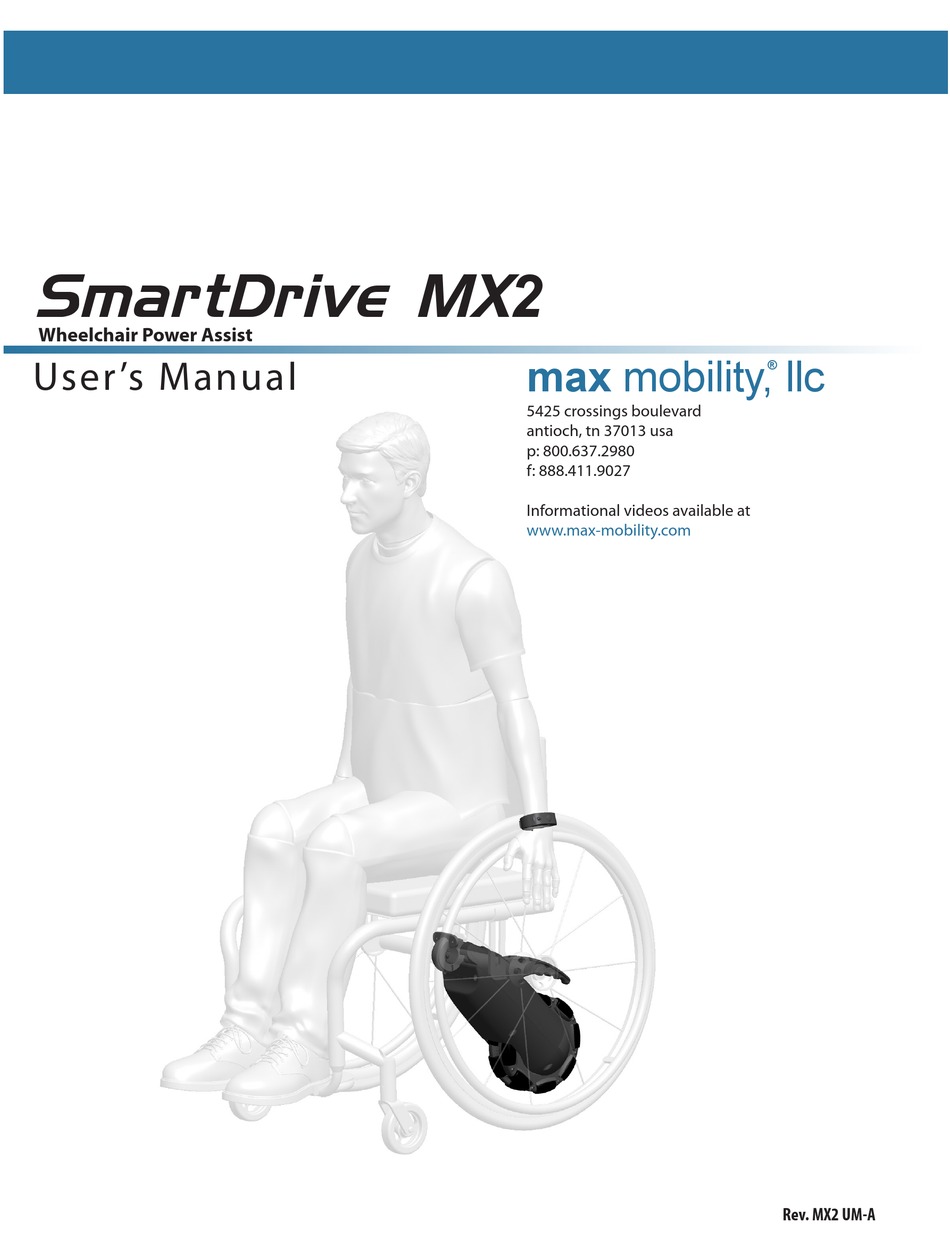

- Page 1 SmartDrive MX2 Wheelchair Power Assist max mobility, llc User ’s Manual ® 5425 crossings boulevard antioch, tn 37013 usa p: 800.637.2980 f: 888.411.9027 Informational videos available at www.max-mobility.com Rev. MX2 UM-A...
-
Page 2: Table Of Contents
® Table of Contents Introduction Intended Use of the SmartDrive Must Read Prior-to-Use Information Warnings and Safety Precautions Electromagnetic Interference (EMI) Bluetooth Wireless Communication List of Components SmartDrive Set-Up Drive Unit Attachment Wristband Install and Attachment Thumb Throttle Buttons... -
Page 3: Introduction
If any issues or malfunctions exist, cease the use of the SmartDrive and contact Max Mobility for service/further instruction. Any contrary use to the directions of this user’s manual, to the recommendations of one’s mobility equipment dealer, or to the technical limitations defined by either Max Mobility and one’s wheelchair manufacturer is considered to be misuse of the... - Page 4 ® Do not operate over significantly rough terrain, very The optional buttons are designed to be used with slick surfaces, extreme slopes, or loose ground. This a seat cushion as to prevent sitting directly on the may cause a loss of traction, leading to injury or damage to cables.
-
Page 5: Electromagnetic Interference (Emi)
Be aware that adding accessories or components to your wheelchair may make it more susceptible to EMI [Note: There is not easy way to evaluate their effect on the overall immunity of the device]. Report all incidents of unintended movement to Max Mobility, and note whether there is a source of EMI nearby. USA / Canada This device complies with Part 15 of the FCC rules. -
Page 6: List Of Components
® List of Components 1. Thumb Throttle Buttons [sold separately as optional accessory] 2. Attachment Hardware 3. Drive Unit 4. Rollers 5. Drive Unit Handle 6. Drive Unit LEDs 7. Drive Unit Toggle Switch 8. Drive Unit Charger Cover 9. -
Page 7: Smartdrive Set-Up
SmartDrive User’s Manual 2. SmartDrive Set-Up Drive Unit Attachment The SmartDrive is designed to easily and quickly attach to all types of manual wheelchairs, both rigid and folding. Refer to the Specification Sheet to verify the compatibility of the wheelchair. Use the separate directions provided with your drive unit attachment hardware for correct set-up prior to use. -
Page 8: Cruising Power Assist
If any malfunctions or push detection/deactivation/thumb throttle button issues are experienced with the SmartDrive, cease use of the device and contact Max Mobility for immediate assistance. The SmartDrive is able to recognize all types of pushes. Do not alter the way that you push for this could lead to injuries in the future. -
Page 9: Anti-Rollback
The operating temperature of the SmartDrive is between -25 oC and 50 oC If any malfunctions or issues are experienced with the SmartDrive, cease use of the device and contact Max Mobility for as- sistance. -
Page 10: Battery
The battery charger is to be used indoors and in dry locations. Use an easily accessible outlet that is close to drive unit that is to be charged. Do not use or attempt to repair a damaged/defective charger. Contact Max Mobility if a charger is damaged and do not dispose of in your household garbage. -
Page 11: Travelling And Shipping
Inspection Always inspect the drive unit, omni-drive wheel, wristband, attachment hardware and thumb throttle buttons for missing parts/damage prior to each use. Cease use and contact Max Mobility or your mobility equipment dealer if you notice any of the following: •... -
Page 12: Other Maintenance
Max Mobility is not responsible for any damage to one’s wheelchair caused by the attachment or operation of the Smart- Drive. An extended warranty for the SmartDrive may be purchased. Contact Max Mobility if you are interested in extending your warranty. - Page 14 Training Certification SmartDrive MX2 It is important for your safety and the safety of those around you that you are properly trained to use the SmartDrive. Please take this training seriously and be sure to fill-in all information. If you do not understand something, just ask.
