Folder Adaptor Bar Mounting Instructions
NOTE: Refer to the separate directions provided for axle clamp mounting.
Folder Adaptor Set-Up
The attachment hardware for folding frame wheelchairs is an adjustable length adaptor bar that attaches to the drive unit and engages
the wheelchair's quick-release axle tips [or other part if these are recessed/inaccessible - see separate Insert instructions].
First, verify that you have the correct adaptor attachment based on the size of the rear wheels. The attachment size is labeled on it's
bottom side with either a 24,
22" (501) Wheel / Tire
24" (540) Wheel / Tire
25" (559) Wheel / Tire
26" (590) Wheel / Tire
Next you will want to adjust the adaptor bar to the correct width for the wheelchair. Loosen the set screws [do not remove completely]
on the end tubes so that the bars can slide along the shaft of the adaptor attachment (Fig. B). The chart above specifies which end
tubes most likely work with differ-
ent folding wheelchair seat widths.
NOTE: If the quick-release axle tips
are recessed or not accessible, use the
provided inserts and instructions to
engage another part of the wheelchair
before continuing.
25
or
26
(Fig. A). See the chart below for the mount that goes with each wheelchair rear wheel/tire size.

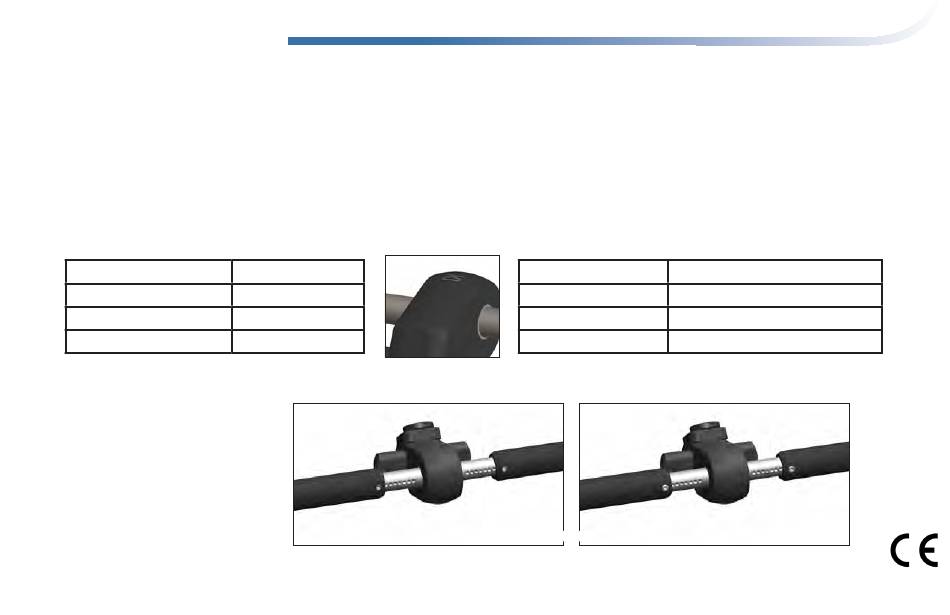

Fig. A
Use
24
attachment
Use
24
attachment
Use
25
attachment
Use
26
attachment
End Tube
Wheelchair Seat Widths
Narrow [MX2-4FN]
Regular [MX2-4FR]
14" (356 mm) to 18" (457 mm)
Wide [MX2-4FW]
19" (483 mm) and Up
Fig. B
Up to 13" (330 mm)
Rev. MX2 FM-D
