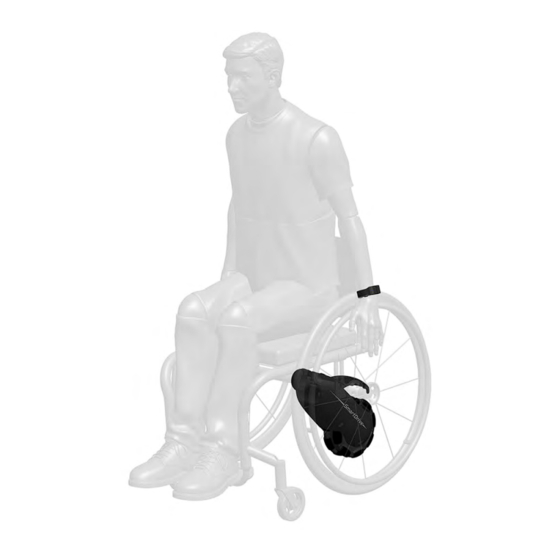

- Page 1 SmartDrive MX2 Wheelchair Power Assist User ’s Manual max mobility, llc ® It is STRONGLY recommended to contact MAX Mobility directly for service if you live inside the U.S. and your device is still under warranty! SDMX2-DUM Rev. A...
- Page 2 Spec Sheet SmartDrive User’s Manual Specifi cation Sheet ® Manufacturer: Max Mobility, LLC SmartDrive MX2 Wheelchair Power Assist Range (level / no resistance conditions): 12.3 miles (19.8 km) Maximum speed (level surface): Adjustable [4 mph (6 km/h) default] Maximum speed (6o incline):...
-
Page 3: Table Of Contents
® Table of Contents Introduction Intended Use of the SmartDrive Must Read Prior-to-Use Information Warnings and Safety Precautions Electromagnetic Interference (EMI) Bluetooth Wireless Communication List of Components SmartDrive Set-Up SmartDrive Attachment PushTracker Band Thumb Throttle Buttons Operating the SmartDrive... -
Page 4: Introduction
SmartDrive outdoors until it can be safely operated indoors without difficulty. If any issues or malfunctions exist, cease the use of the SmartDrive and contact Max Mobility for service / further instruction. Any contrary use to the directions of this user’s manual, to the recommendations of one’s mobility equipment dealer, or to the technical limitations defined by either Max Mobility and one’s wheelchair manufacturer is considered to be misuse of the... - Page 5 ® Do not operate over significantly rough terrain, very The optional buttons are designed to be used with slick surfaces, extreme slopes, or loose ground. This a seat cushion as to prevent sitting directly on the may cause a loss of traction, leading to injury or damage to cables.
-
Page 6: Electromagnetic Interference (Emi)
Be aware that adding accessories or components to your wheelchair may make it more susceptible to EMI [Note: There is not easy way to evaluate their effect on the overall immunity of the device]. Report all incidents of unintended movement to Max Mobility, and note whether there is a source of EMI nearby. USA / Canada This device complies with Part 15 of the FCC rules. -
Page 7: List Of Components
® List of Components 1. Thumb Throttle Buttons [sold separately as optional accessory] 2. Attachment Hardware 3. SmartDrive / Drive Unit 4. Rollers 5. SmartDrive Handle 6. SmartDrive LEDs 7. SmartDrive Toggle Switch 8. SmartDrive Charger Cover 9. Charger / Button Receptacle 10. -
Page 8: Smartdrive Set-Up
SmartDrive User’s Manual 2. SmartDrive Set-Up SmartDrive Attachment The SmartDrive is designed to easily and quickly attach to all types of manual wheelchairs, both rigid and folding. Refer to the Specification Sheet to verify the compatibility of the wheelchair. Custom SmartDrive attachment solutions are also avail- able if the existing hardware does not work for the desired wheelchair. -
Page 9: Power Assist Deactivation
If any malfunctions or push detection / braking / thumb throttle button issues are experienced with the SmartDrive, cease use of the device and contact Max Mobility for assistance. The push activated power assist can ALWAYS be deactivated by pressing the Power Assist Button on the Push- Tracker as this turns power assist OFF / wirelessly disconnects it from the SmartDrive. -
Page 10: Mx2 Control Mode
If any malfunctions or push detection / deactivation / thumb throttle button issues are experienced with the SmartDrive, cease use of the device and contact Max Mobility for immediate assistance. The SmartDrive is able to recognize all types of pushes. Do not alter the way that you push for this could lead to injuries in the future. -
Page 11: Mx1 Control Mode
If your device has been stored in extreme temperatures, allow time for it to warm up or cool down prior to use. The operating temperature of the SmartDrive is between -25 oC and 50 oC If any malfunctions or issues are experienced with the SmartDrive, cease use of the device and contact Max Mobility for as- sistance. -
Page 12: Battery
The battery charger is to be used indoors and in dry locations. Use an easily accessible outlet that is close to the Smart- Drive that is to be charged. Do not use or attempt to repair a damaged / defective charger. Contact Max Mobility if a charger is damaged and do not dispose of in your household garbage. -
Page 13: Travelling And Shipping
Always inspect the SmartDrive, omni-drive wheel, PushTracker, attachment hardware and thumb throttle buttons [if present] for missing parts / damage prior to each use. Cease use and contact Max Mobility or your mobility equipment dealer if you notice any of the following: •... -
Page 14: Other Maintenance
Max Mobility is not responsible for any damage to one’s wheelchair caused by the attachment or operation of the Smart- Drive. An extended warranty for the SmartDrive may be purchased. - Page 15 Must be completed to ensure customer satisfaction. Training Certification SmartDrive MX2 + It is important for your safety and the safety of those around you that you are properly trained to use the SmartDrive. Please take this training seriously and be sure to fill-in all information. If you do not understand something, just ask. SmartDrives are shipped in MX2+ control mode with moderate Maximum Speed and Acceleration settings which allow for familiarity and PushTracker deactivation practice prior to extensive use.
