- Page 1 Operating and Maintenance Manual CF 3-II H CF 3/60 H 0100321, 0100323 CF 3-II H...
- Page 2 CF 3-II H...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses CF 3-II H... -
Page 4: Introduction
This operating and maintenance manual must always be available at the implementation site of the soil compactor. If necessary, you can obtain additional information from your authorized WEBER MT dealer, or you can obtain information from one of the contact addresses on the last page. -
Page 5: Safety Guidelines
The soil compactor should only be used if it is in a technically faultless condition, as intended, in a safety-conscious and hazard-conscious manner, in compliance with the instructions in the operating manual. Malfunctions that impair safety must be eliminated without delay. The CF 3-II H soil compactor is designed exclusively for compacting – sand, – gravel, –... - Page 6 Exercise particular caution when operating the engine in the vicinity of people and livestock. Maintenance and repair work Only use original Weber MT spare parts to ensure reliable and safe operation for maintenance or repair work. Hydraulic hose lines must be checked at regular intervals in accordance with standard engineering practice, or they must be replaced at appropriate intervals, even if no signs of safety-relevant defects are present.
- Page 7 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves CF 3-II H...
-
Page 8: Graphic Presentation

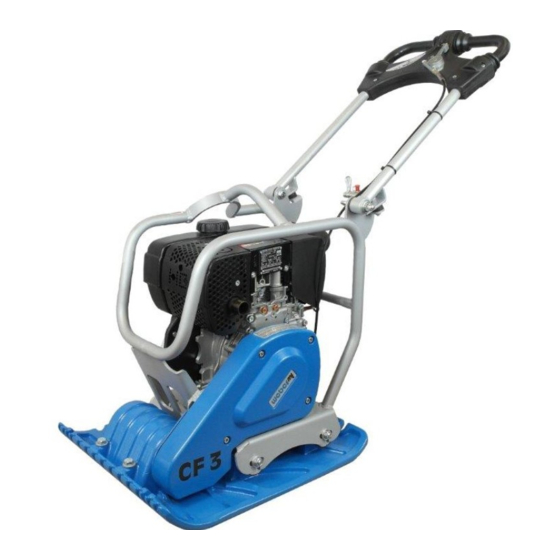

Graphic presentation Overall view CF 3-II H 1 Engine 2 Guide bar 3 Engine bracket 4 Base plate 5 Gas lever 6 Exciter 7 Hearing protection (sticker) 8 Undercarriage (accessory), no image 9 Water tank (accessory), no image 10 Vulkollan plate (accessory), no image... -
Page 9: Device Description
Device description The CF 3-II H soil compactor is used for road-building and landscaping compaction tasks. Drive The compactor is propelled by an air-cooled Hatz diesel engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Hatz diesel engine with the attached reversing starter. After starting, vibration is switched on via the centrifugal clutch attached to the engine. -
Page 10: Technical Data
Technical data CF 3-II H Weight Operating weight CECE in kg (basic device) Dimensions 1100 Overall length (in mm) Overall width Height with folded guide bar (in mm) Base plate length (base in mm) 400 x 500 Pressure surface (in mm) - Page 11 1 Description 2 TYPE ........................3 Serial number 4 Year of construction ........................5 Mass 6 Rated power kW ........................CF 3-II H...
-
Page 12: Activities Prior To Starting Work
Use the screws (3) to fasten the undercarriage (2) to the engine console Arrest the guide bar (4) with the spring bolt (5). Pivot the hand truck under the base plate. The manual guidance rod must be locked during transport. CF 3-II H... - Page 13 Fire, naked light, and smoking is forbidden! Installing the protective mat Hook in the protective mat at the rear. Fasten with holder, screws, spring-lock washers and nuts (3) on the base plate front. Ensure that the protective mat rests under the base plate. CF 3-II H...
-
Page 14: Starting
Allow the handle (2) to glide back into the initial position, and then forcefully and completely pull it through with both hands. If ambient temperatures are below minus 5 degrees Celsius, comply with the instructions in the operating manual provided by the engine manufacturer! CF 3-II H... -
Page 15: Compacting
The engine can only be switched off via the switch-off button! During breaks – even if they are short – the machine must be shut down. Parked devices that represent an obstacle must be safeguarded against through conspicuous measures. CF 3-II H... -
Page 16: Maintenance Overview
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. CF 3-II H... -
Page 17: Maintenance Work
Press the oil filter into the crankcase as far as it will go. Prior to tightening the screws ensure that the tension springs rest on the oil filter with both ends (4). CF 3-II H... - Page 18 Dispose of waste oil in an envi- ronmentally friendly manner (regulation on waste oils). Wipe up / off oil slick and oil residue and dispose of fuel-soaked cleaning cloths in an environmentally re- sponsible manner. CF 3-II H...
- Page 19 Checking the V-belt Remove the V-belt guard (1). Check the V-belt (2) for cracks, damaged flanks, and wear. If there is excessive wear – replace the V-belt as specified in the repair manual. CF 3-II H...
-
Page 20: Operating Fluids And Fill Levels
Operating fluids and fill levels Assembly Operating material Quantity Summer Winter CF 3-II H Quality Engine Engine oil SAE 10 W 40 0.9 l (– 10 ~ + 50 °C) API – CD CE-CF-CG or SHPD or CCMC – D4 – D5 – PD2... -
Page 21: Storage
All bare parts / gas lever / accelerator – Oil / grease control cables / fastening bolts If the machine is to be stored for longer than six months, then contact the Weber service organization to discuss additional measures. CF 3-II H... -
Page 22: Contact Addresses
Notiz / note: CF 3-II H... - Page 23 Notiz / note: CF 3-II H...
- Page 24 Weber Maschinentechnik GmbH Im Boden 5-8, 10 · 57334 Bad Laasphe · Germany Phone +49 2754 398 0 · Fax +49 2754 398 101 info@webermt.de · www.webermt.de 085100104-104 / CF 3-II H_2020-03 Original instructions CF 3-II H...
