Main Menu Options

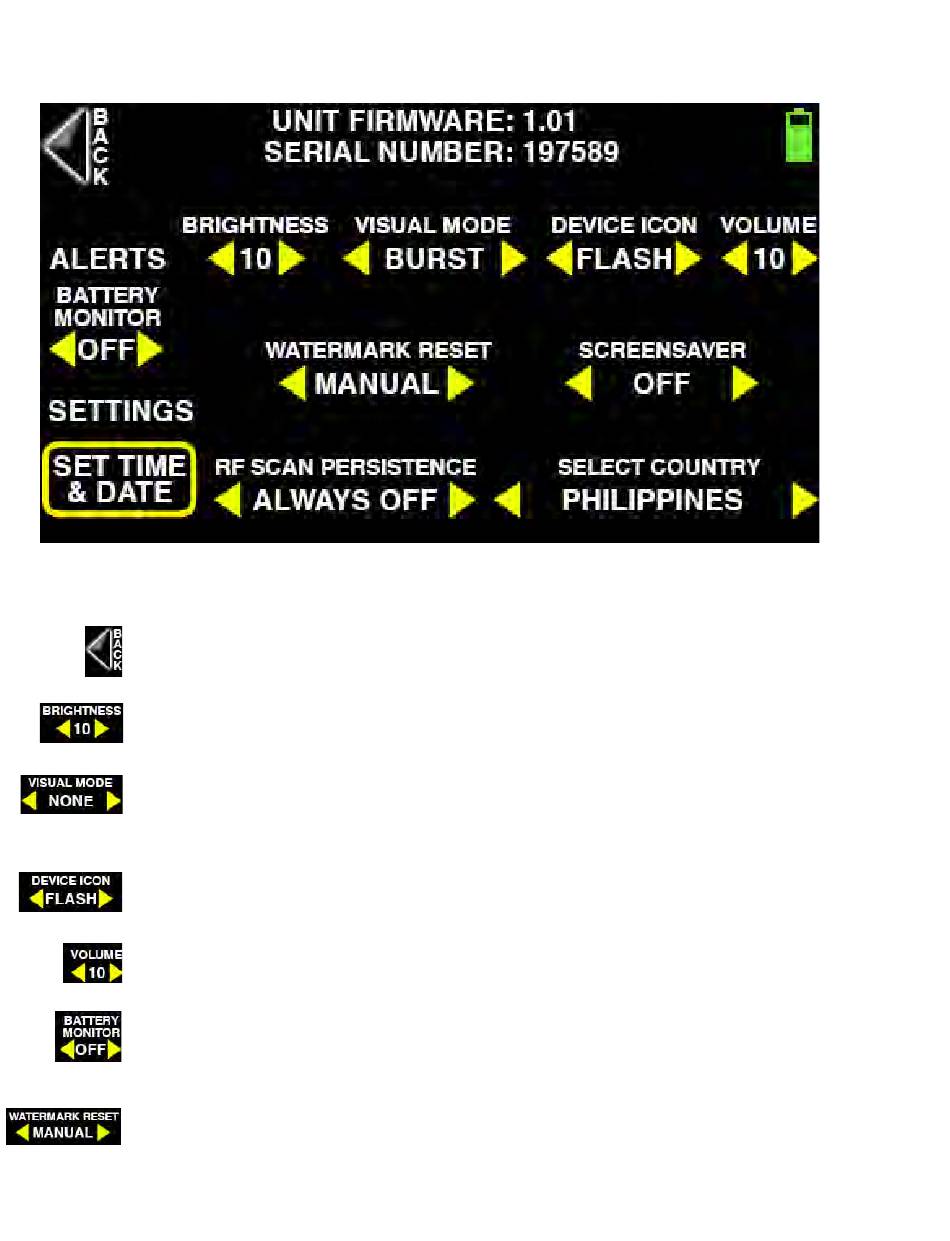

WallHound-Pro Main Menu screen can be reached from nearly any other screen by touching the rectangular
icon with three lines. This screen provides many adjustments as well as the unit's serial number and firmware.
Touch this button at any time in any screen to return to the previous screen.
Press the left yellow arrow to decrease brightness of the main alert display on a scale of 1 to 10.
Press the right yellow arrow to increase brightness.
Press the left or right yellow arrow to toggle between 3 different visual alert modes: burst, strobe or
none. Burst is a gradual fade up and down. Strobe flashes on and off. None turns off the large
visual alerts.
Press the left or right yellow arrow to toggle between 2 different visual alert modes on the LCD
touchscreen: flash or none. The device detected will flash on and off when flash is shown. There
will be no device icon shown at all if none is shown
Press the left or right yellow arrow to adjust siren or voice alert volume on a scale from 1 to 10.
Press the left or right yellow arrow to toggle the battery audible alert ON or OFF. WallHound-Pro
normally operates on AC power, so this monitor only refers to the power remaining in the internal
sealed backup battery. The internal battery provides 2-5 hours of power depending upon amount of
nearby wireless activity.
Choose between watermark reset choices: MANUAL, 5 SECS or 30 SECS. Selecting MANUAL
allows users to view a profile of signals built up over time such as overnight when security
personnel might not be present. The other two selections will simply erase the watermarks automatically after 5
5
