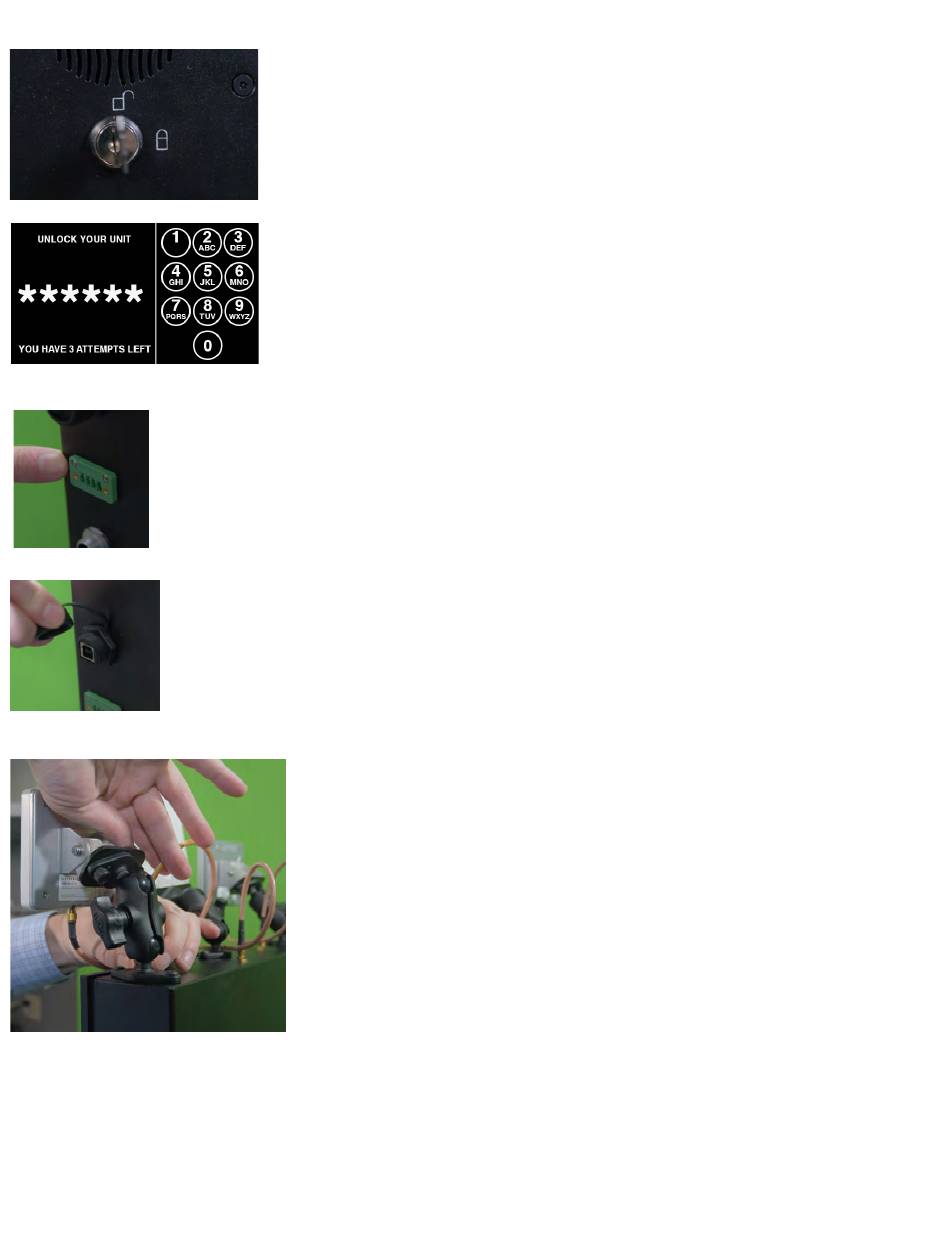

WallHound-Pro includes a provision to securely lock all settings with a physical
key to prevent tampering. Settings such as thresholds, alerts and even power may
not be changed while the WallHound-Pro is locked. In addition, WallHound-Pro's
touch screen requires a six digit PIN code in order to make any changes using the
touchscreen even while the unit is physically unlocked. The PIN code is preset at
the factory. If you lose your PIN code, contact BVS at 732-548-3737 or
support@bvsystems.com.
WallHound-Pro includes dry contacts allowing users to connect external alarms and recording
devices upon wireless detection by WallHound-Pro. Consult this manual further down for a
wiring diagram or contact your BVS sales or support representative for answers to questions.
WallHound-Pro includes a USB port for firmware updates. Contact your BVS support
representative for firmware updating procedures to your unit.
WallHound-Pro supports an optional direction finding antenna kit including
(2) dual band directional antennas to cover both 2.4 GHz and 5 GHz, (1)
wideband directional antenna covering 700 MHz to 2.7 GHz, mounting
brackets and cables. Simply unscrew the SMA mounted omni-directional
antennas that are included with your unit and replace them with the
directional antennas. Be sure to connect the larger wide band antenna to the
center SMA connector and smaller directional antennas on either side of the
larger one. All of these antennas cover the frequency range of any common
wireless threat, but the directional antennas allow much more flexibility in
your unit's placement and coverage. For example, you may have to
experiment a little if you wish to only detect wireless activity in a narrow
corridor and secure rooms but exclude a nearby area in the opposite direction
where wireless devices are more commonly used and not prohibited.
