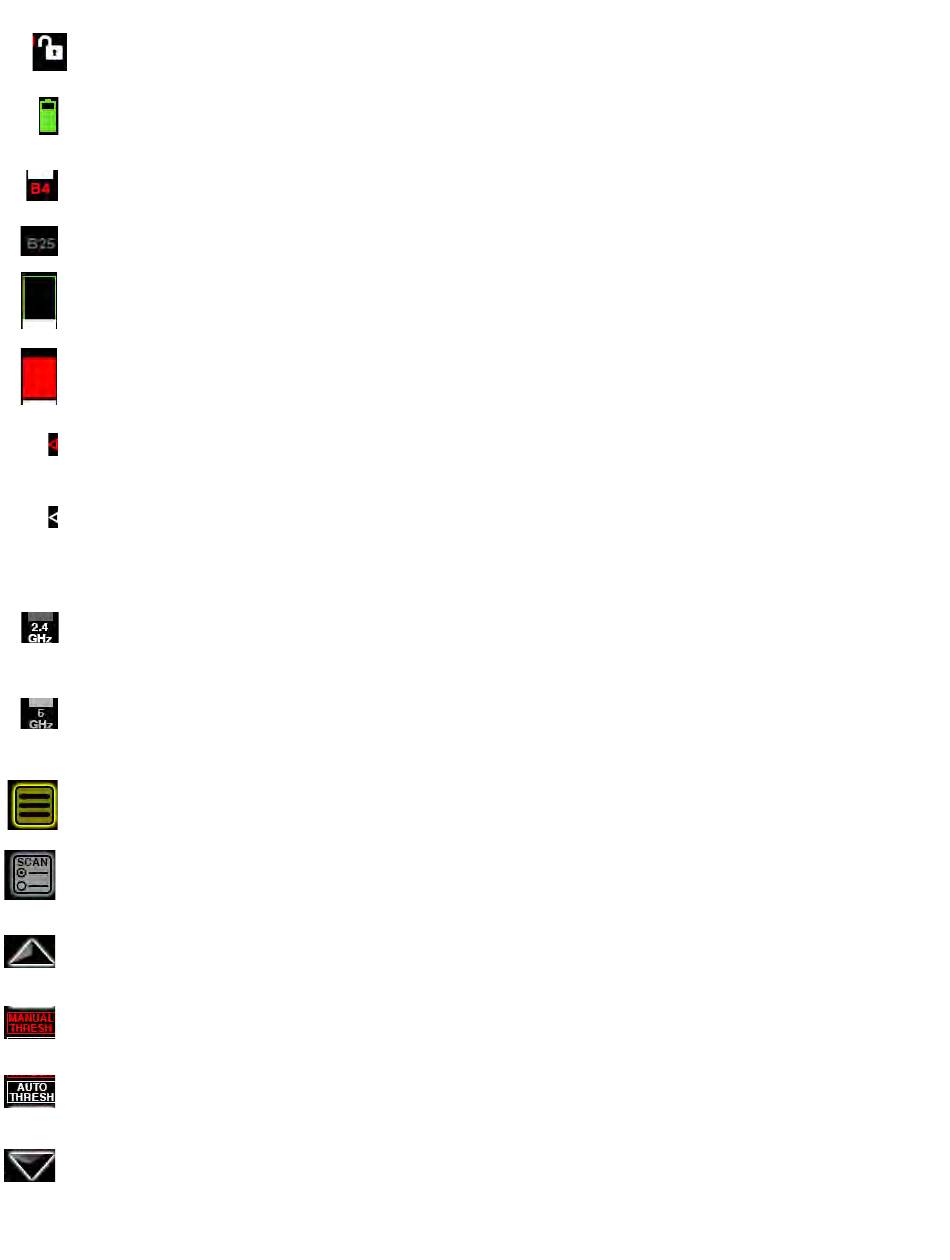

Shows security status of physical lock and key. A locked lock icon does not allow any changes.
Displays current charge to internal battery system. Internal battery lasts 2-5 hours depending upon
amount of nearby wireless activity.
Cellular band being actively scanned (red indicates active).
Cellular band not being actively scanned (grey indicates no scanning).
Thin green watermark indicates strongest signal strength detected since last watermark reset.
Red bar indicates signal has surpassed the currently set threshold.
Manual threshold setting indicated by red color. Touch this indicator and once it blinks, it can be
adjusted using the up/down threshold arrows only while the 'manual thresh' button blinks.
Auto threshold setting indicated by white color. Auto threshold can be toggled on and off by tapping the
white 'auto thresh' button. If you have already manually adjusted any thresholds, you will probably see
those white indicators automatically move into their auto threshold spots.
2.4 GHz continuous wave (CW) energy measurement. This measurement does not reflect any
demodulated signals used in Bluetooth or Wi-Fi devices. 2.4 GHz CW can originate from cellular
phones and also a variety of devices including wireless cameras, baby monitors and microwave ovens.
5 GHz continuous wave (CW) energy measurement. This measurement does not reflect any
demodulated signals used in Bluetooth or Wi-Fi devices. 5 GHz CW can originate from cellular phones
and also a variety of devices including wireless cameras, drones and baby monitors.
Navigates to main menu where users can fine tune a variety of alert and scan settings.
Inhibits scanning of all cellular, Wi-Fi, bluetooth, BLE, 2.4 GHz CW and 5 GHz CW signals. Simply
touch this button and then choose one or more buttons on the top to inhibit.
Raises the threshold manually for any blinking red indicators. This should decrease the amount of alerts
triggered for those particular signals.
Toggles thresholds to be adjusted manually. This button will continue to blink while in manual mode
allowing each signal's threshold to be manually adjusted.
Toggles thresholds into automatic mode allowing WallHound-Pro to determine the noise floor and most
reliable threshold settings by itself.
Lowers the threshold manually for any blinking red indicators. This should increase the amount of alerts
triggered for those particular signals.
