- Page 1 USER GUIDE 4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning NS-RGFGSS1 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents Before you begin ..................3 IMPORTANT SAFETY INSTRUCTIONS . -
Page 3: Before You Begin
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Setting the clock....................33 Selecting the 12-hour or 24-hour display setting . -
Page 4: Important Safety Instructions
Safety Symbols What the icons and signs in this user manual mean: You can be killed or seriously injured if you do not follow instructions. WARNING Minor injury or property damage can result if you don’t follow instructions. CAUTION Do NOT attempt. Do NOT disassemble. -
Page 5: Anti-Tip Device
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning ANTI-TIP DEVICE Tip-Over Hazard WARNING • A child or adult can tip the range and be killed. • Install anti-tip device to range and/or structure per installation instructions. WARNING • Engage the range to the anti-tip device installed to the structure. •... - Page 6 Danger to children Do not store any object of interest to children on the cooktop or back guard of the range. Children climbing on the range to reach items could be killed or seriously injured. Do not let little children touch the range. The cooktop grates and griddle (if equipped) are heavy and presents a risk of injury if dropped on a foot.
- Page 7 4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Do not attempt to operate this appliance if it is damaged, malfunctioning, or has missing or broken parts. Never place plastic, paper, or other items that could melt or burn near the oven vents or any of the surface burners.
-
Page 8: Electrical Warnings
ELECTRICAL WARNINGS Comply with the following electrical instructions and requirements to avoid death, personal injury from electric shock, and/or property damage from fire: WARNING Plug into a grounded 3-prong outlet. DO NOT remove ground prong. DO NOT use an adapter. NEVER use an extension cord. -
Page 9: Surface Burner Warnings
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning This appliance must be properly grounded. Plug your range into a 120- volt grounded outlet that is only used for this appliance. Do not remove the grounding (third) prong from the plug. Firmly plug the power cord into the wall outlet. -
Page 10: Oven Warnings
Keep pot holders away from open flames when lifting cookware. Never use a towel or bulky cloth in place of a pot holder. Keep all plastic away from the surface burners or any open flame. When using glass cookware, make sure it is designed for top-of-range cooking. Always make sure cookware handles are turned to the side or rear of the cooktop, but not over other surface burners. -
Page 11: Features
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Keep the oven free from grease buildup. Reposition oven racks when the oven is cool to prevent burning or personal injury. Do not heat unopened containers. Pressure in the container could build up, resulting in explosion and/or personal injury. -

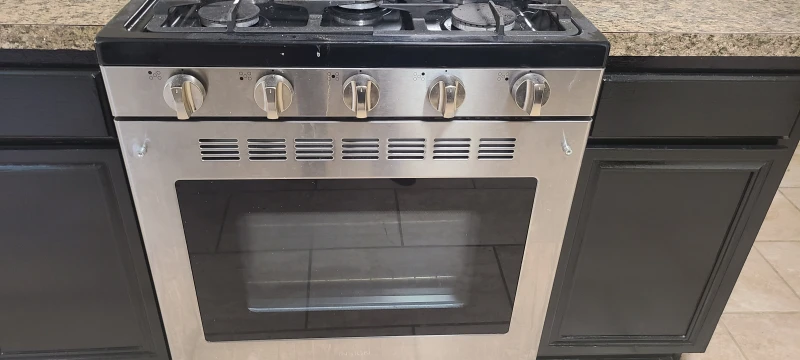

Page 12: Main Components
Main components Control panel Oven vent Burner control knobs Oven racks (2) Removable oven floor Removable oven door Removable storage drawer Oven components Broil oven burner Oven rack position guide Oven light Bake oven burner www.insigniaproducts.com... -
Page 13: Oven Control Panel
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Oven control panel TOUCHPAD DESCRIPTION... Turns on the fan while baking. Provides more consistent heat by circulating Bake the air inside the oven while baking. Cooks large amounts of baked goods on multiple shelves at the same time. -
Page 14: Range Dimensions
TOUCHPAD DESCRIPTION... 17 Timer On / Off Turns on the kitchen timer for the amount of time you want. Press and hold for three seconds to turn off the control panel touch pads to (lock) prevent the oven from accidentally being turned on. Touch pads stay locked until you turn this function off. - Page 15 4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Side 26.9 in. (68.3 cm) 23.9 in. (60.7 cm) www.insigniaproducts.com...
-
Page 16: Installing
Installing 4.8 Cu.Ft Freestanding Convection Range with Steam Cleaning Selecting a location ................. .17 Clearances and dimensions . -
Page 17: Selecting A Location
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Selecting a location Clearances and dimensions BEFORE YOU BEGIN to install your range, refer to the following information, dimensions, and clearances. Do not locate your range where it may be subject to strong drafts. Provide adequate clearances between your range and adjacent combustible surfaces. -
Page 18: Locations For Gas Piping And Electrical Outlets
Locations for gas piping and electrical outlets Back of the range Gas pipe connection 10.8 in. (27.4 cm) 5.2 in. (13.1 cm) Electrical outlet 2.8 in. 3.6 in. (7.1 cm) (9.1 cm) Gas requirements Your range is convertible for use with natural or propane gas. The factory default is natural gas. If you decide to use this range on LP gas, conversion must be made by a qualified LP installer before attempting to operate the range. -
Page 19: Installing Your Gas Range
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning • Ground Fault Circuit Interrupters (GFCIs) are not required or recommended for the gas range receptacles. • NEVER connect the ground wire to plastic plumbing lines, gas lines, or water pipes. Installing your gas range WARNING: We recommend that a professional installer install your range. -
Page 20: Optional: Converting To Lp Gas
6 When all connections have been made, make sure that all range controls are in the OFF positions, then turn on the main gas supply valve. 7 Use a liquid leak detector at all joints and connections to check for leaks. WARNING: Do not use a flame to check for gas leaks. -
Page 21: Installing The Anti-Tip Device
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Installing the anti-tip device WARNING: To reduce the risk of tipping, your range must be secured by the provided anti-tip device. • All ranges can tip, resulting in personal injury. •... -
Page 22: Leveling Your Range
Leveling your range Your range should be level. If your range is not level, the door may not close or seal correctly which can cause uneven heating and gas wastage problems. Notes: • To make it easier to adjust the feet, have someone push against the top of the range to tilt it slightly. •... -
Page 23: Assembling The Top Burners
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Assembling the top burners CAUTION: Do not operate the surface burners without all burner parts in place. 1 Position surface burner heads on top of the surface burner manifolds. The electrodes fit into the slot in the bottom of the heads. -
Page 24: Installing The Oven Door Handle
Installing the oven door handle You range may have a “KD handle” that you need to install. 1 Check your installation kits for the handle and hex wrench. Screw hole Handle Hex wrench 2 Make sure that the side with screw holes faces towards the oven door. 3 Place the door handle against to the oven door and fit it on the connection part. -
Page 25: Checking The Ignition Of The Burners
Checking the ignition of the burners Check the operation of all cooktop and oven burners after your range has been installed and assembled, gas supply lines have been carefully checked for leaks, and electrical power cord has been plugged in. All surface and oven burners have electronic ignition. -
Page 26: Using
Using 4.8 Cu.Ft Freestanding Convection Range with Steam Cleaning Before you begin using your range ..............27 Tips for saving gas . -
Page 27: Before You Begin Using Your Range
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Before you begin using your range WARNING: All electrical and gas equipment with moving parts can be dangerous. Making sure that you read and understand all safety information. See IMPORTANT SAFETY INSTRUCTIONS on page 4. Pay particular attention to SURFACE BURNER WARNINGS on page 9 and OVEN WARNINGS on page 10. -
Page 28: Using The Surface Burners
Using the surface burners WARNINGS: Before using the surface burners, make sure to follow all the safety warnings and precautions as listed. Failure to do so could result in product damage, personal injury, and/or death. When you want to move a pot or pan onto another burner, lift it up and place it on the other burner. Do not slide a pot or pan from one burner to another. -
Page 29: Lighting A Burner
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning What your cookware is made of determines how evenly and quickly heat is transferred from the surface burner to the pan bottom. MATERIAL DESCRIPTION Aluminum Excellent heat conductor. Some types of food cause aluminum to darken. -
Page 30: Using The Oven
Using the oven WARNING: Stand away from the oven when opening the oven door. Escaping hot air or steam can burn your hands, face, or eyes. Let hot air or steam escape before removing or replacing food. Your oven has six oven functions: FUNCTION MINIMUM SETTING MAXIMUM SETTINGS... -
Page 31: Positioning The Oven Racks
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Positioning the oven racks You can remove and reposition the oven racks in any of the six rack positions. Each oven rack has a built-in stop to prevent it from accidentally being pulled completely out. Correct positioning of the oven racks provides the best cooking results. Note: The rack position above 6 is not usable. -
Page 32: Tips For Baking
Replacing an oven rack 1 Place the back edge of the rack on the a rack support. 2 Lift up the front of the rack and slide it into the oven. Baking layer cakes Note: Correct positioning of food items in the oven helps you achieve the best cooking results. •... -
Page 33: Setting The Clock
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Setting the clock The clock must be set to the correct time of day for the automatic oven timing functions to work correctly. You can adjust the clock to show a 12-hour or 24-hour display. The 12-hour display is the default setting. The time of day can only be changed when your range is not in use (standby). -
Page 34: Fan Baking And Roasting
Fan baking and roasting The Fan Bake and Fan Roast functions lets you program the oven to bake or roast at any temperature between 150° F (66° C) and 550° F (288° C). The fan in the back of the oven cavity circulates the hot air evenly throughout the oven cavity. As a result, foods are more evenly cooked and browned in less time than with regular heat. -
Page 35: Programming A Delayed Start Time
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Programming a delayed start time The Delay Start function lets you use the kitchen timer to automatically start and stop another cooking program (Bake, Fan Bake, or Fan Roast). You can set a delay from 1 minute to 10 hours. The clock must be set to the correct time of day for Delay Start to work correctly. -
Page 36: Switching Between Fahrenheit Or Centigrade
Switching between Fahrenheit or Centigrade You can program the oven control to display temperatures in Fahrenheit or Centigrade. The oven was preset at the factory to display in Fahrenheit. 1 Press and hold °F / °C for one second. The display shows F or C. The default is F. 2 Press and hold °F / °C for one second to change between F and C. -
Page 37: Maintenance
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Maintenance 4.8 Cu.Ft Freestanding Convection Range with Steam Cleaning Cleaning and maintaining................38 Cleaning the control panel . -
Page 38: Cleaning And Maintaining
Cleaning and maintaining WARNINGS: • Always make sure that the controls are off and all surfaces are cool before removing or cleaning any of the range parts. This will prevent you from getting burned. • If your range is pulled out from the wall for any reason, make sure that the anti-tip device is reengaged after your range has been pushed back into place. -
Page 39: Cleaning The Oven Door
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning 4 To replace the rack, place the back edge of the rack on the a rack support, then lift the front of the rack and slide it into the oven. If a rack becomes difficult to slide, rub the side rails with wax paper or a cloth containing a small amount of cooking oil. -
Page 40: Cleaning The Surface Burner Control Knobs
3 Clean the outside door stainless steel surfaces by following the instructions in Cleaning stainless steel surfaces on page 38. 4 Clean the glass window with glass cleaner or warm, soapy water with a thorough rinse. Do not let moisture get inside the door assembly. -
Page 41: Cleaning Surface Burner Grates And Assemblies
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Cleaning surface burner grates and assemblies 1 Turn off all controls and make sure that all parts have cooled. 2 Lift up and remove the burner grates from the cooktop. Make note of the burner sizes and locations. 3 Lift up and remove the burner caps from the burner heads. - Page 42 7 Set all burner heads on top of the manifold valves in the same locations you removed them from. The hole on the side of a burner head goes over the electrode. The burner heads are correctly installed when they are flat on the top of the manifold valves.
-
Page 43: Cleaning The Cooktop
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning 9 Replace the burner grates on top of the range cooktop. 10 Push in and turn each surface burner control knob to the LITE position, let each burner light, then set each control knob back to a burner setting to make sure each burner operates correctly. -
Page 44: Removing And Replacing The Oven Door
Removing and replacing the oven door WARNINGS: • The oven door is heavy. Do not lift the door by its handle. Be careful not to drop the door during removal. Incorrect handling could result in personal injury. • Disconnect the electrical power to your range before removing the oven door. This prevents the oven from accidentally being turned on while the door is removed. - Page 45 4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning 3 Hold the door firmly on both sides. www.insigniaproducts.com...
- Page 46 4 Disengage the hinges and remove the door gently with a 30° angle between the door and the oven. Place the door on a protected surface. www.insigniaproducts.com...
- Page 47 4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Replacing the door 1 Hold the door firmly in almost half open position. Notch 2 Insert the hinge tongues into the slots making sure that the notches on both sides drop into place. 3 Open the door fully.
-
Page 48: Removing And Replacing The Storage Drawer
4 Fully close the levers on the left and right hinges, then close the door. Removing and replacing the storage drawer The storage drawer is a good place to store cookware and bakeware. Do not store plastics or flammable material in the drawer. -
Page 49: Steam Cleaning The Oven
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning 2 To replace the drawer, make sure that the white wheel on the drawer aligns with the rails well, then slide the drawer back into your range. Steam cleaning the oven 1 Remove all accessories from the oven. -
Page 50: Troubleshooting
Troubleshooting Cooktop If the solutions in this section do not solve a problem, contact a qualified service technician or Insignia customer service. PROBLEM PROBABLE CAUSE POSSIBLE SOLUTION I smell gas There is a gas leak. Clear the room, building, or area of all occupants. - Page 51 4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning PROBLEM PROBABLE CAUSE POSSIBLE SOLUTION Very large or yellow oven The oven burner air Call for a qualified service technician. burner flames adjustment shutters need to be adjusted. Gas supply is not correctly See Connecting to gas on page 19.
-
Page 52: Error Codes
Error codes ERROR CODE POSSIBLE CAUSE SOLUTION Press Off/Clear, then restart the oven. If the • The temperature sensor may be damaged problem persists, disconnect all power from and the circuit open. your range for at least 30 seconds, then reconnect the power. If this does not solve the •... -
Page 53: Specifications
4.8 Cu. Ft. Freestanding Gas Convection Range with Steam Cleaning Specifications Dimensions (H × W × D) 46.9 × 29.9 × 26.9 in. (119 × 75.9 × 68.3 cm) Gross Weight: 224.9 lbs. (102 kg) Weight Net Weight: 196.2 lbs. (89 kg) 120 V/60 Hz Power requirements Power cord length... -
Page 54: One-Year Limited Warranty
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 55 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2020 Best Buy. All rights reserved.
