Summary of Contents for Insignia NS-RGRCESS4

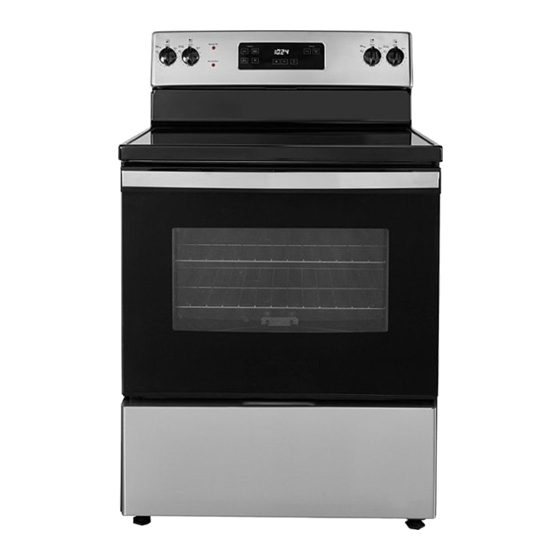

- Page 1 USER GUIDE 4-Burner Electric Range NS-RGRCESS4 183D6379P119 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents IMPORTANT SAFETY INFORMATION........4 Using the radiant surface units . - Page 3 4-Burner Electric Range Cleaning the oven door ..........26 Lift-off oven door .
-
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING Read all safety instructions before using the product and save these instructions. Failure to follow these instructions may result in fire, electrical shock, serious injury or death. Anti-Tip Device WARNING Tip Over Hazard •... - Page 5 4-Burner Electric Range IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING General Safety Instructions • Use this appliance only for its intended purpose as described in this Owner’s Manual. • FIRE HAZARD: Never leave the range unattended with the cooktop ON. Keep flammable items away from the cooktop.
- Page 6 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE • Avoid scratching or impacting glass doors, cook tops or control panels. Doing so may lead to glass breakage. Do not cook on a product with broken glass. Shock, fire or cuts may occur. •...
- Page 7 4-Burner Electric Range IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE • To avoid oil spillover and fire, use a minimum amount of oil when shallow pan-frying and avoid cooking frozen foods with excessive amounts of ice. • Use proper pan size—select cookware having flat bottoms large enough to cover the surface heating element.
- Page 8 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING OVEN SAFETY INSTRUCTIONS • Stand away from the range when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes. • Do not use the oven if a heating element develops a glowing spot during use or shows other signs of damage.
-
Page 9: Using The Radiant Surface Units
4-Burner Electric Range IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING FIRE HAZARD: Never leave the range unattended with the cooktop ON. Keep flammable items away from the cooktop. Turn off all controls when done cooking. Failure to follow these instructions can result in fire, serious injury or death. -
Page 10: Temperature Limiter
Even after the surface units are turned off, the glass cooktop retains enough heat to continue cooking. To avoid overcooking, remove pans from the surface units when the food is cooked. Avoid placing anything on the surface unit until it has cooled completely. •... -
Page 11: Stainless Steel
4-Burner Electric Range Stainless steel: Recommended Aluminum: Heavy weight recommended Good conductivity. Aluminum residues sometimes appear as scratches on the cooktop, but can be removed if cleaned immediately. Because of its low melting point, thin-weight aluminum should not be used. Copper bottom: Recommended Copper may leave residues which can appear as scratches. -
Page 12: Surface Cookware Tips
Surface cookware tips The following information will help you choose cookware which will give good performance on coil cooktops. 1” Not over 1 inch Use medium- or heavy-weight cookware. Aluminum cookware conducts heat faster than other metals. Cast-iron and coated cast-iron cookware are slow to absorb heat, but generally cook evenly at low to medium heat settings. -
Page 13: Using The Surface Units
4-Burner Electric Range Using the surface units How to set Push the knob in and turn in either direction to the setting you want. At both OFF and Max the control clicks into position. You may hear slight clicking sounds during cooking, indicating the control is keeping the power level you set. -
Page 14: Using The Oven Controls
Using the oven controls Oven control, clock and timer features and settings ITEM FUNCTION Bake pad Touch this pad to select the bake function. Flashes while in edit mode–you can change the oven temperature at this point. Glows when the oven is in bake mode. Start Pad Must be touched to start any cooking or cleaning function. -
Page 15: Using The Oven
4-Burner Electric Range ITEM FUNCTION Broil High/Low Touch this pad to select the broil function. Flashes while in edit mode–you can switch from HI to LO BROIL at this point. Glows when the oven is in broil mode. Off Pad Touch this pad to cancel ALL oven operations except the clock and timer. - Page 16 When placing and removing cookware, pull the rack out until it stops. To remove a rack, pull it toward you, tilt the front end up and pull it out. To replace, place the end of the rack (stop-locks) on the support, tilt up the front and push the rack in.
-
Page 17: Preheating And Pan Placement
4-Burner Electric Range TYPE OF FOOD RACK POSITION Frozen pies (on cookie sheet) Angel food cake, bundt or pound cakes B Biscuits, muffins, brownies, cookies, B or C cup cakes, layer cakes, pies Casseroles B or C Turkey R or A Roasting R, A or B Preheating and pan placement... -
Page 18: How To Set The Oven For Broiling
How to set the oven for broiling Note: Close the door before start any broiling function. Use LO Broil to cook foods such as poultry or thick cuts of meat thoroughly without overbrowning them. 1 Place the meat or fish on a broiler grid in a broiler pan designed for broiling. 2 Follow suggested rack positions in the Broiling guide on page 18. - Page 19 4-Burner Electric Range QUANTITY SECOND RACK* FIRST SIDE FOOD AND/OR SIDE TIME COMMENTS POSITION TIME (MIN.) THICKNESS (MIN.) Ground 454 g (1 lb.) (4 7-10 Space evenly. beef patties) 1.25 to 1.9 cm (1⁄2 to 3⁄4”) thick 1.8 kg (4 lbs.) (16 patties) Beef 1.9 to 2.5 cm (3⁄4 to...
- Page 20 QUANTITY SECOND RACK* FIRST SIDE FOOD AND/OR SIDE TIME COMMENTS POSITION TIME (MIN.) THICKNESS (MIN.) Salmon 2 (2.5 cm [1”] thick) Turn carefully. Do not turn Steaks 2 (1.25 to 1.9 cm [1⁄2 skin side to 3⁄4”] thick) Fillets down. 1.25 cm (1⁄2”) thick Slices 2.5 cm (1”) thick...
-
Page 21: Using The Clock And Timer
4-Burner Electric Range Using the clock and timer To set the clock The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during a timed baking. -
Page 22: To Reset The Timer
To reset the timer If the display is still showing the time remaining, you may change it by touching the TIMER pad, then touch the + or – pads until the time you want appears in the display. If the remaining time is not in the display (clock is in the display), recall the remaining time by touching the TIMER pad and then touching the + or –... -
Page 23: Using The Sabbath Feature
4-Burner Electric Range Using the Sabbath feature (Designed for use on the Jewish Sabbath and Holidays) The Sabbath feature can be used for baking/roasting only. It cannot be used for broiling. Note: The oven light comes on automatically when the door is opened and goes off when the door is closed. -
Page 24: Adjust The Oven Thermostat? Easy To Do Yourself
4 Tap the CLOCK pad until ON or OFF appears in the display. ON indicates that the oven will automatically turn off after 12 hours. OFF indicates that the oven will not automatically turn off. See 12 Hour shut-off on page 22. 5 Touch the START/ON pad. -
Page 25: Care And Cleaning Of The Range
4-Burner Electric Range Care and cleaning of the range Be sure that all controls are off and all surfaces are cool before cleaning any art of the range. WARNING If your range is removed for cleaning, servicing or any reason, be sure the anti-tip device is reengaged properly when the range is replaced. -
Page 26: Cleaning The Oven Door
Cleaning the oven door The gasket is designed with a gap at the bottom to allow for proper air circulation. Do not rub or clean the door gasket-it has an extremely low resistance to abrasion. If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced. - Page 27 4-Burner Electric Range To remove the door: 1 Fully open the oven door. 2 With thumb and forefinger, pull the hinge lock on each hinge up to the unlocked position. Pull hinge locks up to unlock 3 Firmly grasp both sides of the door near the top. 4 Close door until the top of the door is approximately 3"...
- Page 28 To replace the door: 1 Firmly grasp both sides of the door near the top. 2 With the door at the same angle as the bottom of the left hinge arm on the bottom edge of the left hinge slot. The notch in the hinge arm must be fully seated onto the bottom of the slot.
-
Page 29: Oven Heating Elements
4-Burner Electric Range Oven heating elements Do not clean the bake element or the broil element. Any soil will burn off when the elements are heated. To clean the oven floor, gently lift the bake element. Clean with warm soapy water. -
Page 30: Storage Drawer Removal
To replace the cover: 1 Place it into groove of the light receptacle. Pull wire forward to the center of the cover until it snaps into place. 2 Connect electrical power to the range. Storage drawer removal To remove the storage drawer: 1 Pull the drawer out all the way. -
Page 31: Stainless Steel Surfaces
4-Burner Electric Range Stainless steel surfaces Do not use a steel wool pad; it will scratch the surface. To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the grain. Follow the cleaner instructions for cleaning the stainless steel surface. -
Page 32: Burned-On Residue
Burned-on residue WARNING DAMAGE to your glass surface may occur if you use scrub pads other than those recommended. 1 Allow the cooktop to cool. 2 Spread a few drops of ceramic cooktop cleaner on the entire burned residue area. 3 Using the included cleaning pad for ceramic cooktops, rub the residue area, applying pressure as needed. -
Page 33: Metal Marks And Scratches
4-Burner Electric Range Metal marks and scratches 1 Be careful not to slide pots and pans across your cooktop. It will leave metal markings on the cooktop surface. These marks are removable using the ceramic cooktop cleaner with the cleaning pad for ceramic cooktops. 2 If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave black discoloration on the cooktop. -
Page 34: Before You Call For Service
Before you call for service..Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. PROBLEM POSSIBLE CAUSES WHAT TO DO COOKTOP Surface units will not Improper cookware being Use pans which are flat and match maintain a rolling boil or used. - Page 35 4-Burner Electric Range PROBLEM POSSIBLE CAUSES WHAT TO DO Surface units not The surface units are not With the controls off, check to functioning properly plugged in solidly. make sure the surface unit is plugged completely into the receptacle. The surface unit controls Check to see the correct control is improperly set.
- Page 36 PROBLEM POSSIBLE CAUSES WHAT TO DO Display flashes “bAd” The installed connection Contact installer or electrician to then “linE” with a loud from the house to the unit is correct miswire. tone miswired. The words “CLOSE DOOR” This is a normal condition. This is normal.
-
Page 37: Specifications
4-Burner Electric Range PROBLEM POSSIBLE CAUSES WHAT TO DO Display flashes Power failure. Reset the clock. Unable to get the display Oven control pads were not The BAKE and BROIL pads must to show “SF” pressed properly. be pressed at the same time and held for 3 seconds. -
Page 38: One-Year Limited Warranty
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. - Page 39 4-Burner Electric Range • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” • Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.) •...
- Page 40 1-877-467-4289 (U.S. and Canada) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V1 ENGLISH ©2023 Best Buy. All rights reserved. 23-0198...
