Mercia Garden Products 01JER0806-V1 Manual

01JER0806-V1
Please retain product label and instructions for future reference
Before
assembly make sure you
have a suitable base
ready to erect your
building

Dimensions

Depth = 182cm
Width = 244cm
Height = 225cm
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.

TIMBER

As with all natural materials, timber can be a ected during various weather
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are delivered pre-treated with a water based timber treatment
however this only helps to protect during transit of your garden item. To
validate your guarantee and for better protection against weathering it is
ESSENTIAL that you treat the garden building with a wood preserver within 3
months of assembly. This will need to be re-applied annually to ensure longevity
of your building. Care must be taken when constructing the garden building
that it is not touching the ground and is on a suitable base.

BUILDING A BASE

When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and
annual treatment.

TYPES OF BASE

- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions, The base should be slightly
smaller than the external measurement of the building, i.e. The cladding should overlap the base, creating a run o for water. It is also recommended
that the oor be at least 25mm above the surrounding ground level to avoid ooding.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products independently tested to EN71 level, we
cannot accept responsibility for your safety whilst erecting or using this product.
x2
This building should be erected by
two people.
For ease of assembly, it is advisable to
pilot drill all screw holes and ensure
all screw heads are countersunk.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
For Assistance Please
Contact Customer Care on
01636 880514
1
2

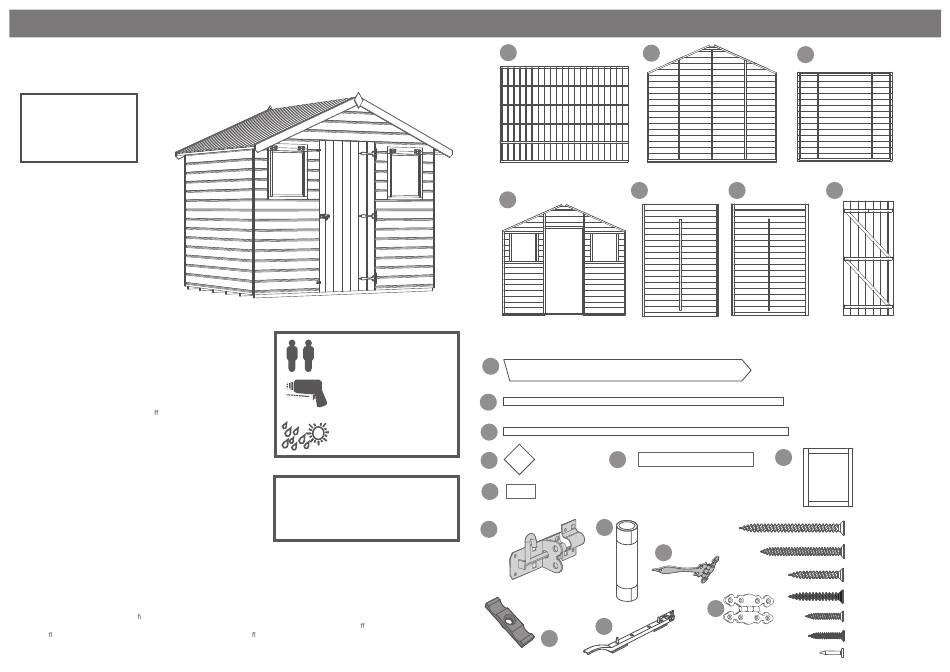

Floor
5
4
Door Gable Roof Panel Left
Fixing Kit
8
9
10
13 2x Window Strip
11 2x Finial
2x Window Strip
12 4x Fascia block
Pad bolt
17
Felt
15
19
Hinge x3
Turn
button x2
18
16
casement stay x2
3
Plain Side x2
Plain Gable
6 7
Roof Panel Right Door Panel
4x Front Fascia- 95 x1460mm
4x Corner strips- 30 x 1652mm
x2 Beading strips- 30 x 1662mm
14
2x Window
50mm Screw x 22
40mm Screw x 40
30mm Screw x 60
30mm Black Screw x 19
20
20mm Screw x 15
Hinge x4
16mm Screw x 16
Felt Tacks x 100
