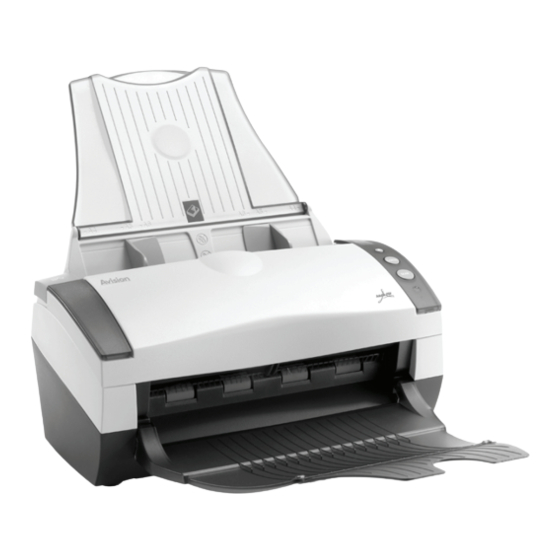

Document Scanner
Getting Started Guide
Trademarks
Microsoft is a U.S. registered trademark of Microsoft
Corporation.
Windows, Windows Vista, Windows 7 and Windows 8 are either
registered trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
Other brands and product names herein are trademarks or
registered trademarks of their respective holders.
©
Copyright
2015 Avision Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV100CS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avision AV100CS

Summary of Contents for Avision AV100CS

  • Page 1 Windows, Windows Vista, Windows 7 and Windows 8 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Other brands and product names herein are trademarks or registered trademarks of their respective holders. © Copyright 2015 Avision Inc.

  • Page 2: Table Of Contents

    Table of Contents Introduction ............. 1-1 Scanner Installation..........2-1 Unlocking Your Scanner ........2-1 Installing the Scanner Driver and Connecting the Cables...........2-2 2.2.1 Connecting to Power ........2-2 2.2.2 Turning on the Power.........2-3 2.2.3 Installing the Scanner Driver ....2-3 2.2.4 Connecting to Computer ......2-4 Completing Your First Scan........

  • Page 3: Introduction

    Getting Started 1. Introduction Congratulations on your purchase of the color sheet-fed image scanner. With this scanner, you can you scan your multi-page documents from the auto document feeder at a rated speed or scan irregular single-page document from the flatbed.

  • Page 4: Scanner Installation

    Getting Started 2. Scanner Installation 2.1 Unlocking Your Scanner The scan unit is locked during transport to protect the scanning mechanism from being damaged. Be sure to unlock the scan unit before using the machine.  Turn over the machine to ...

  • Page 5: Installing The Scanner Driver And Connecting The Cables

    2.2 Installing the Scanner Driver and Connecting the Cables NOTE: 1). The Windows system CD may be required when installing on some PC’s. To ensure your computer can identify the USB scanner, please install scanner driver first before connecting the scanner to your computer.

  • Page 6: Turning On The Power

    Getting Started 2.2.2 Turning on the Power Press the Power Switch button on the front panel, the Power LED will flash. When it is finished and ready to scan, the LED indicator will stop flashing and become steadily on. To turn off the scanner, press the Power Switch button for about 3 seconds, the Power LED will be off.

  • Page 7: Connecting To Computer

    Click Install Button Manager V2 to install the Button Manager V2 software and then click Install Scanner Driver to install the scanner driver on your computer. 2.2.4 Connecting to Computer Connect the square end of the USB cable to the USB port of your scanner.

  • Page 8: Completing Your First Scan

    Getting Started Completing Your First Scan Loading Your Paper 3.1.1 Placing Your Document on the Flatbed Open document cover. Place your document FACE DOWN on the document glass and align the document to the reference mark as indicated. Close document cover.
  • Page 9 3.1.2 Loading Your Document in the ADF Paper Tray 3.1.3 Notice on Using the ADF Before using the ADF, please make sure that your paper meets the following specifications:  Document(s) should be square or rectangular and in good condition (not fragile or worn). ...
  • Page 10 Getting Started Fanning Your Document Standard paper size should feed easily through the scanner. To avoid occasional paper jam when automatically feeding multiple documents, loosen the paper before loading. Document Feeding 1. Load the stack of document face down with the top of the pages pointing into the feeder.
  • Page 11 3.1.4 Loading Your Cards in the ADF Paper Tray 1. Place the stack of cards face down with the long dimension parallel to the paper guide. 2. Adjust the paper guides to center the original. Make sure the paper guides touch the edges of the original.

  • Page 12: Verifying Your Scanner Installation

    Getting Started Verifying Your Scanner Installation To verify if your scanner installation is correct, Avision provides you a useful test program called Avision Capture Tool. With this tool, you can perform simple scans and view the captured images. In addition, it helps you complete your scan at a rated speed.
  • Page 13 Select your driver type and scanner model and click OK. The following Avision Capture Tool dialog box will be displayed. Save File Path File Format Scan Setup In the Scan Validation dialog box, click the Scan button ) or choose Scan from the File menu.
  • Page 14 Getting Started 3.3.1 A Glance of the Scanner Properties Dialog Box 1. Tab Options Choice: Image, Compression, Color Dropout, Paper, Multi-Feed Detection, Preview, Options, Settings, Imprinter, Information. 2. Image Choose your image type and the side of Selection Box document you wish to scan. Options vary based on type of scanner.

  • Page 15: Isis Interface Operation

    Getting Started ISIS Interface Operation * Please refer to the preceding chapter, Scanner Installation, to install ISIS scanner driver. You may start your ISIS-compliant software application to scan via the ISIS user interface. The ISIS driver operation method is similar to the TWAIN’s. Every function on the ISIS interface screen is briefly described as below: Mode: Select one of scan modes, including B&W, gray, color...

  • Page 16: Using The Buttons

    Getting Started Using the Buttons 5.1 Installing Button Manager V2 Button Manager V2 provides you an easy way to scan your document and then link the scanned image to your designated software application. All this can be done by a simple touch of the button on the scanner.
  • Page 17 The Button Panel shows the first five scanning buttons. Right-click the button (function) you wish to check. The Button Properties window appears. Name of the Selected Button Button Name Image Mode Basic Selection Scan Param eters Folder and file name for the scanned image...

  • Page 18: Scanning From One Touch Of The Buttons

    V2, please refer to the user’s manual in the supplied CD. You may also using Button Manager V2 on your desktop by starting Button Manager V2 from All Programs or double clicking the Avision Scanner Utility from the Control Panel.

  • Page 19: Maintenance

    Getting Started Maintenance Cleaning the Flatbed Glass The procedures Wet a soft lint-free cloth with some isopropyl alcohol. (95%) Open the document cover as shown below. Gently wipe the surface of the glass of flatbed. Close the document cover. Your scanner is now ready for use.

  • Page 20: Cleaning The Adf

    6.2 Cleaning the ADF From time to time, the Friction Roller and the Feeding Rollers may be contaminated with ink, toner particles, or paper dust. In this case, the paper may not be fed smoothly. Please follow the following steps to clean the Friction Roller and the Feeding Rollers to ensure the best of the scanner.

  • Page 21: Cleaning The Calibration Area

    Getting Started 6.3 Cleaning the Calibration Area Press the Paper Jam Clearing button. Open the front door to the left. Wet a clean cloth with some isopropyl alcohol. (95%) Wipe the glass and the white area as illustrated below by moving the swab from side to side to rid the dust or dirt.

  • Page 22: Troubleshooting

    Getting Started 7. Troubleshooting 7.1 Clearing a Paper Jam In the event of a paper jam, follow the procedures below to remove the paper: Press the ADF Release Button on the right side. Gently open the Scanner Front Door to the left. Carefully pull the paper out of the ADF unit.
