Landrover Freelander II 2007 -->
EXAMPLE
Use this hole
Use this hole
Remark: The fi xing position can be different between Audio and Multimedia unit!
2-DIN

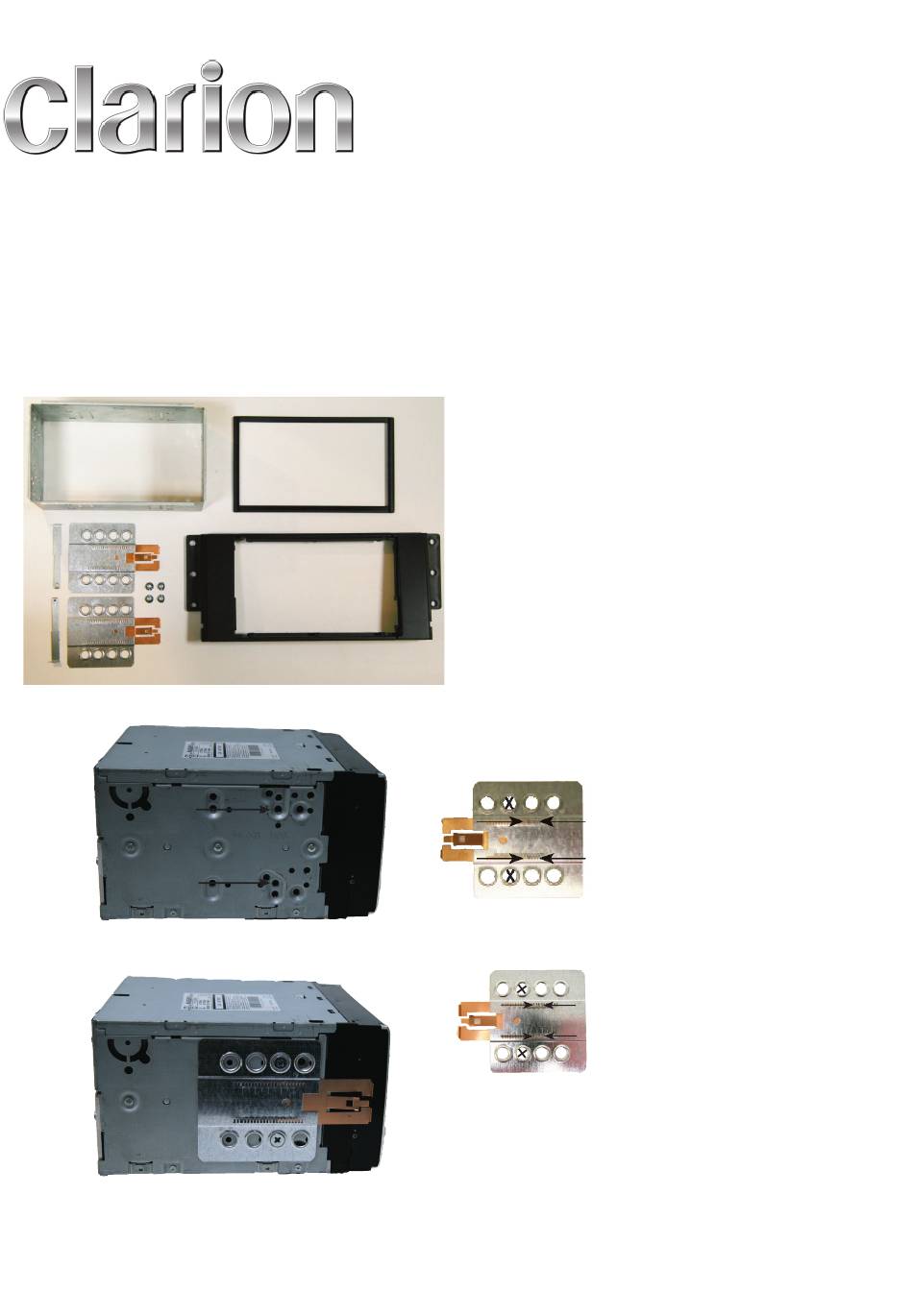

Installation manual for:
* Mount the plates.
BKX-1260-02
Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1X Replacement frame
* 1X Radio trim
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws
* 2X Radio removal keys
We advice to use the following positions.
Other positions are also possible.
Use position 2 marked with a cross.
Use position 16 & 18 marked with an arrow.
Measured from left to right.
We advice to use the following positions.
Other positions are also possible.
Use position 2 marked with a cross.
Use position 16 & 18 marked with an arrow
Measured from left to right.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clarion BKX-1260-02
Summary of Contents for Clarion BKX-1260-02
- Page 1 2-DIN BKX-1260-02 Installation manual for: Landrover Freelander II 2007 --> Installation kit includes the following items: * 1X 2-ISO 100 mm. metal bracket * 1X Replacement frame * 1X Radio trim * 2X Mounting plates * 2X Mounting spacers * 4X Screws...
- Page 2 2-DIN BKX-1260-02 2-DIN 12.301260-02 Remove the rubber plaid. Remove the dashboard panel at the loca- tion of the arrows. Remove the four screws at the location of Remove the dashboard panel. the arrows. Remove the radio. This is tighten by four screws at the location of the arrows.
- Page 3 2-DIN 2-DIN 12.301260-02 BKX-1260-02 Place the 2-Din metal bracket. Place the the dashboard panel. Place the headunit and radio trim.
