RealTek RTL8101L
(For AX4PER-GN)
Game Port Connector
CD-IN Connector
Onboard AC'97 CODEC
Front Audio Connector
IrDA Connector
32-bit PCI Expansion Slot x6
USB 2.0 Connector
SYSFAN3 Connector
JP14 CMOS Clear Jumper
Front Panel Connector
FDC Connector
4Mbit Flash ROM BIOS
Case Open Connector

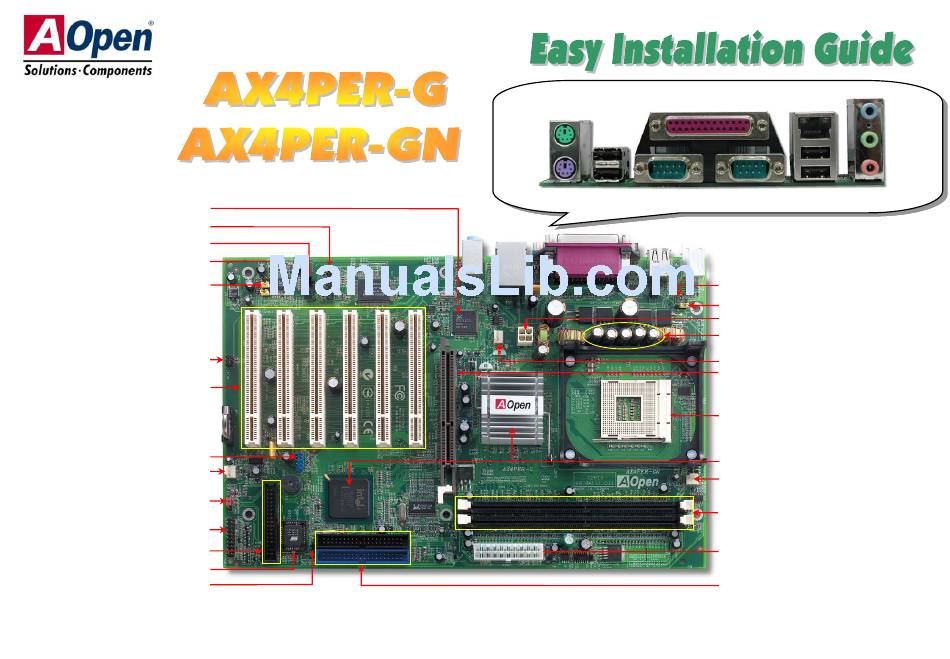

PS. Here we use AX4PER-GN motherboard as illustration.
SPP/EPP/ECP
Parallel Port
PS/2 Mouse
Connector
PS/2 Keyboard
USB 2.0
COM 1 Port
Connector
Port
RJ45 LAN Jack
(for AX4PER-GN)
Line-In
Speaker Out
MIC-In
USB 2.0
COM 2 Port
Port
Resetable Fuse
JP28 Keyboard/Mouse Wakeup Jumper
4-pin 12V. ATX Power Connector
2200
F Low ESR Capacitors
μ
SYSFAN2 Connector
4x AGP slot
478-pin CPU socket with Voltage and
Frequency Auto-detection that supports Intel
®
Pentium
4 1.4~3.06GHz+ CPU
®
Intel
845PE chipset
CPUFAN1 Connector
184-pin DIMMx2 supports DDR333/DDR266
Max. to 2GB
ATX Power Connector
ATA/33/66/100 IDE Connector x2
®
