Cobalt
(DCC System Adapter leads)
Cobalt
box interfaces with EVERY DCC BRAND using only the track outputs of your DCC system,
however if you want to integrate
There are TWO types of lead, one for the DCC system control box interface and one for the addition of
Handsets and related items such as "Connection panels". We have packed the adapters in sets of 3,
with 1x main system box, 2x handset/other per pack.
Please note: NCE users will not need adapters for full system integration... but other brands often will.
Please check the system diagrams carefully before connection. Do NOT attempt to make your own
even if your system seems to have the same sort of connector, as even momentary incorrect connection
will almost certainly cause easily identifyable related damage that will
(Please note: The images used on this page are representative only and the items that you receive may look a little different)
Adapters are
labelled for
each brand

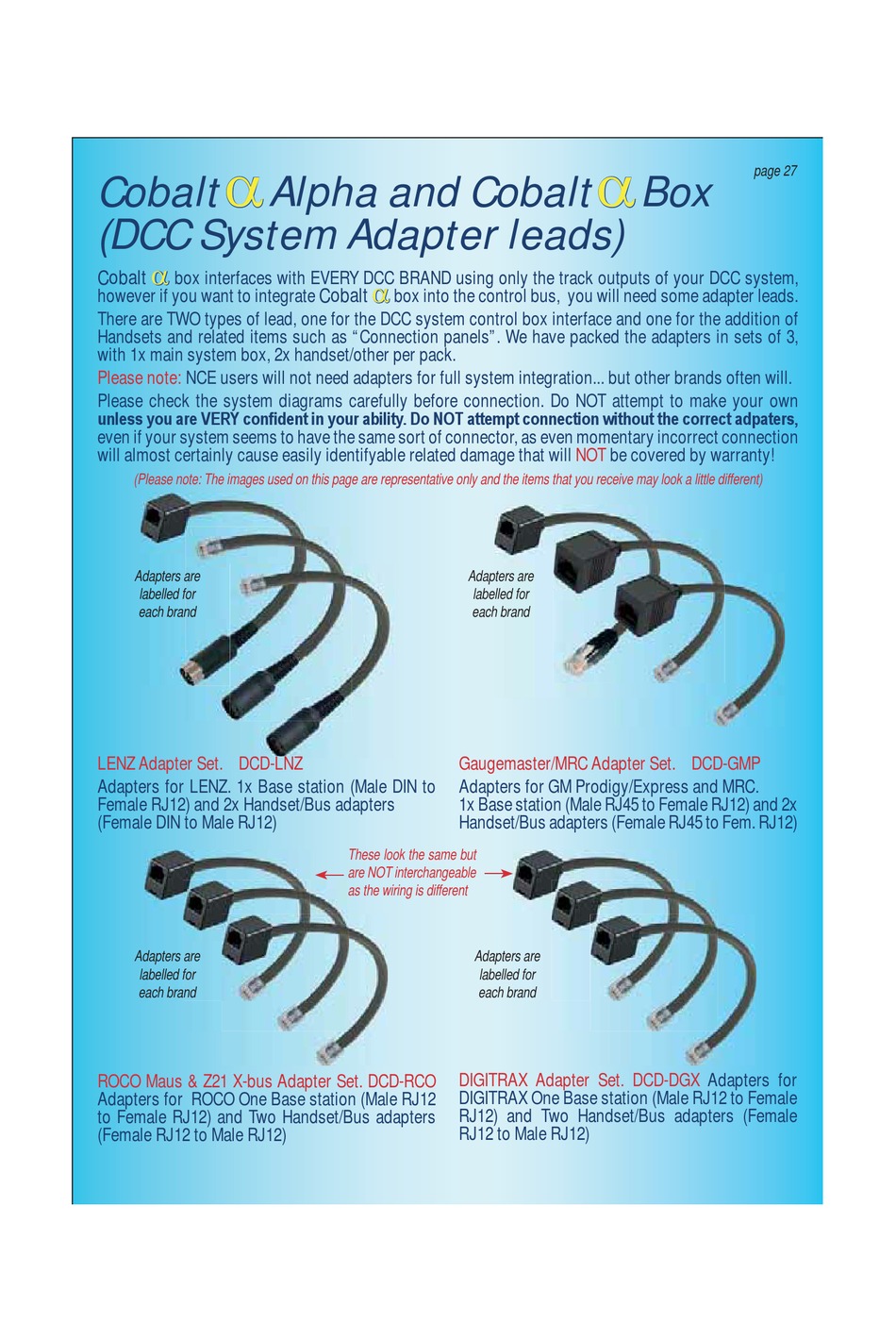

LENZ Adapter Set. DCD-LNZ DCD L
Adapters for LENZ. 1x Base station (Male DIN to
Female RJ12) and 2x Handset/Bus adapters
(Female DIN to Male RJ12)
Adapters are
labelled for
each brand
ROCO Maus & Z21 X-bus Adapter Set. DCD-RCO
Adapters for ROCO One Base station (Male RJ12
to Female RJ12) and Two Handset/Bus adapters
(Female RJ12 to Male RJ12)
Alpha and Cobalt
Cobalt
box into the control bus, you will need some adapter leads.
L L L L NZ
These look the same but
are NOT interchangeable
as the wiring is different
NOT be covered by warranty!
Adapters are
labelled for
each brand
Gaugemaster/MRC Adapter Set. DCD-GMP
Adapters for GM Prodigy/Express and MRC.
1x Base station (Male RJ45 to Female RJ12) and 2x
Handset/Bus adapters (Female RJ45 to Fem. RJ12)
Adapters are
labelled for
each brand
DIGITRAX Adapter Set. DCD-DGX
DIGITRAX One Base station (Male RJ12 to Female
RJ12) and Two Handset/Bus adapters (Female
RJ12 to Male RJ12)
