DCCconcepts Cobalt Alpha Series Manual page 10

Using multiple Cobalt
If you like the idea of a separated DCC Track bus
and overload protection, then Cobalt

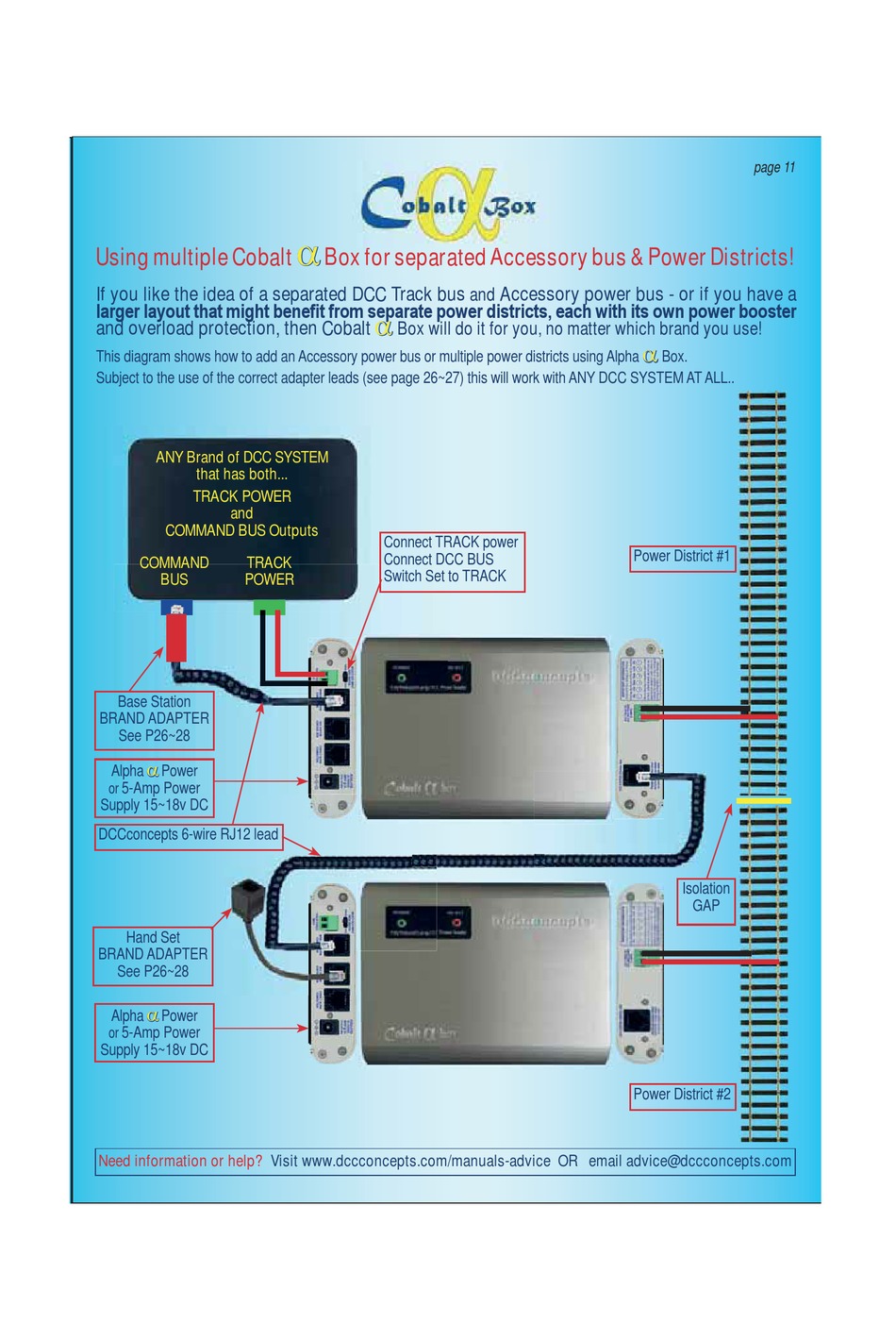

This diagram shows how to add an Accessory power bus or multiple power districts using Alpha
Subject to the use of the correct adapter leads (see page 26~27) this will work with ANY DCC SYSTEM AT ALL..
ANY Brand of DCC SYSTEM
that has both...
TRACK POWER
and
COMMAND BUS Outputs
COMMAND TRACK
BUS POWER
Base Station
BRAND ADAPTER
See P26~28
Alpha Power
5-Amp Power
or
Supply 15~18v DC
DCCconcepts 6-wire RJ12 lead
Hand Set
BRAND ADAPTER
See P26~28
Alpha Power
5-Amp Power
or
Supply 15~18v DC
Need information or help?
Box for separated Accessory bus & Power Districts! f
Box will do it for you, no matter which brand you use!
Connect TRACK power
Connect DCC BUS
Switch Set to TRACK
Visit www.dccconcepts.com/manuals-advice OR email advice@dccconcepts.com
t d A
Accessory power bus - or if you have a
and
page 11
Box.
Power District #1
Isolation
GAP
Power District #2
