Upgrade the
The NCE PowerCab is perhaps the most complete or all of the "Starter Sets" and is therefore
really popular, however it has extremely limited overload protection so can easily be damaged
by low level short-circuits left active for too long and it soon outgrows the average modellers
needs for layout power as its true output power ability is really only 1.5 amps continuous.
We COULD simply connect the PowerCab panel to the system as per the Prodigy Express, but
as the PowerCab uses the same wiring as Cobalt
really make something special with the NCE PowerCab + Cobalt
All "Curly Cords" DCCconcepts
are 6-wire RJ12 # DCD-ACL
Direct Connections with NO
need for Adapters makes this
a Super-versatile addition to
PowerCab "Power & potential"
PLEASE NOTE: In some cases, the images used in this manual are of prototype or pre-production units and may vary slightly in appearance
from those actually on sale. However in all cases all of the connections and diagrams are identical and the information given is correct.

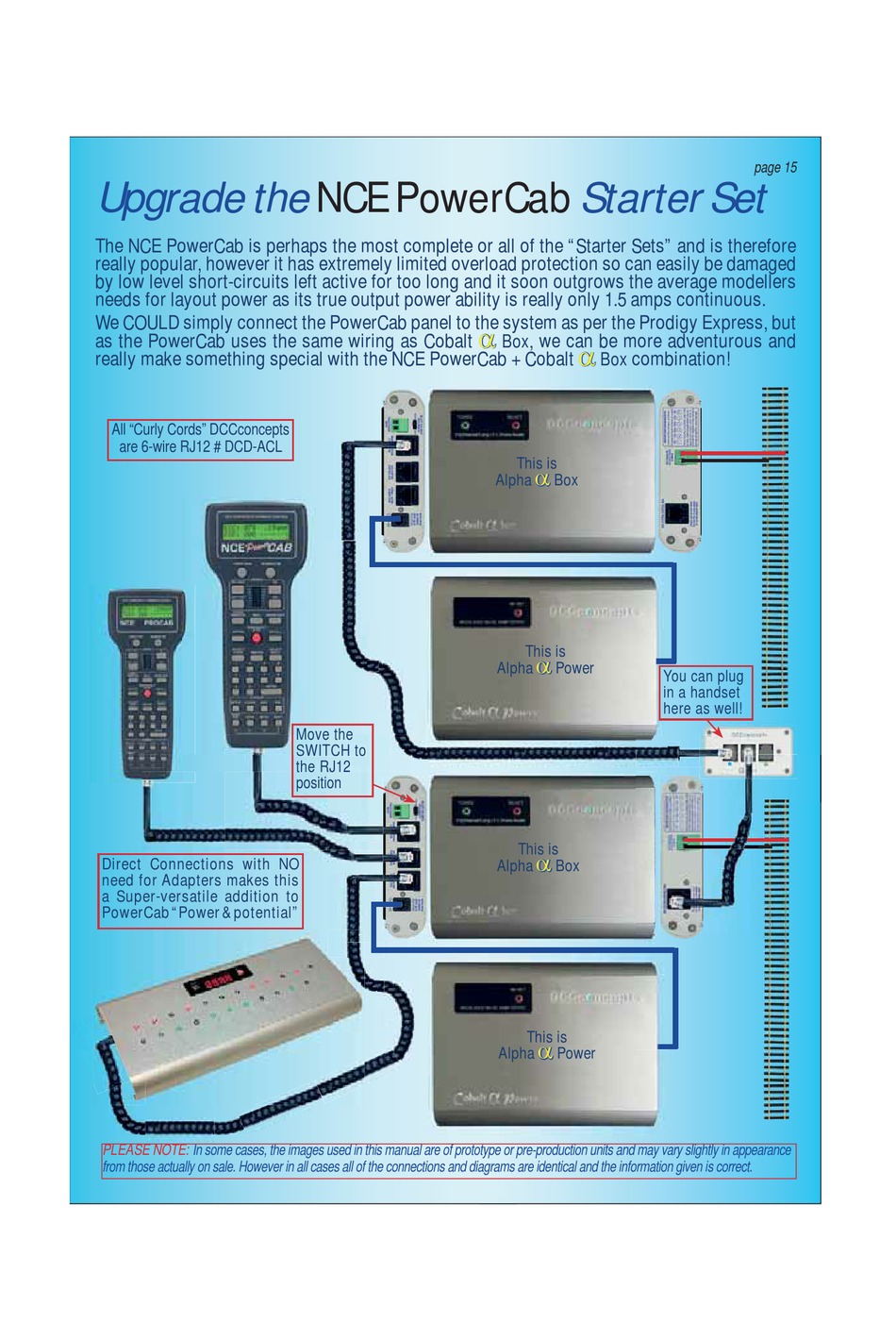

NCE PowerCab
Mov Mov Move the ve the
SW SWITCH to SWITCH to
the RJ12 the RJ12 the RJ12
position position
Starter Set
, we can be more adventurous and
Box
combination!
Box
This is
Alpha Box
This is
Alpha Power
You can plug
in a handset
here as well!
This is
Alpha Box
This is
Alpha Power
