DCCconcepts Cobalt Alpha Series Manual page 19

Upgrade the
ROCO DCC is popular as it's often sold in "Start Sets"... There have been several series of
ROCO systems however connections are fortunately very similar in all cases. So, if you are a
ROCO user, adding Cobalt
ally nice control panels and

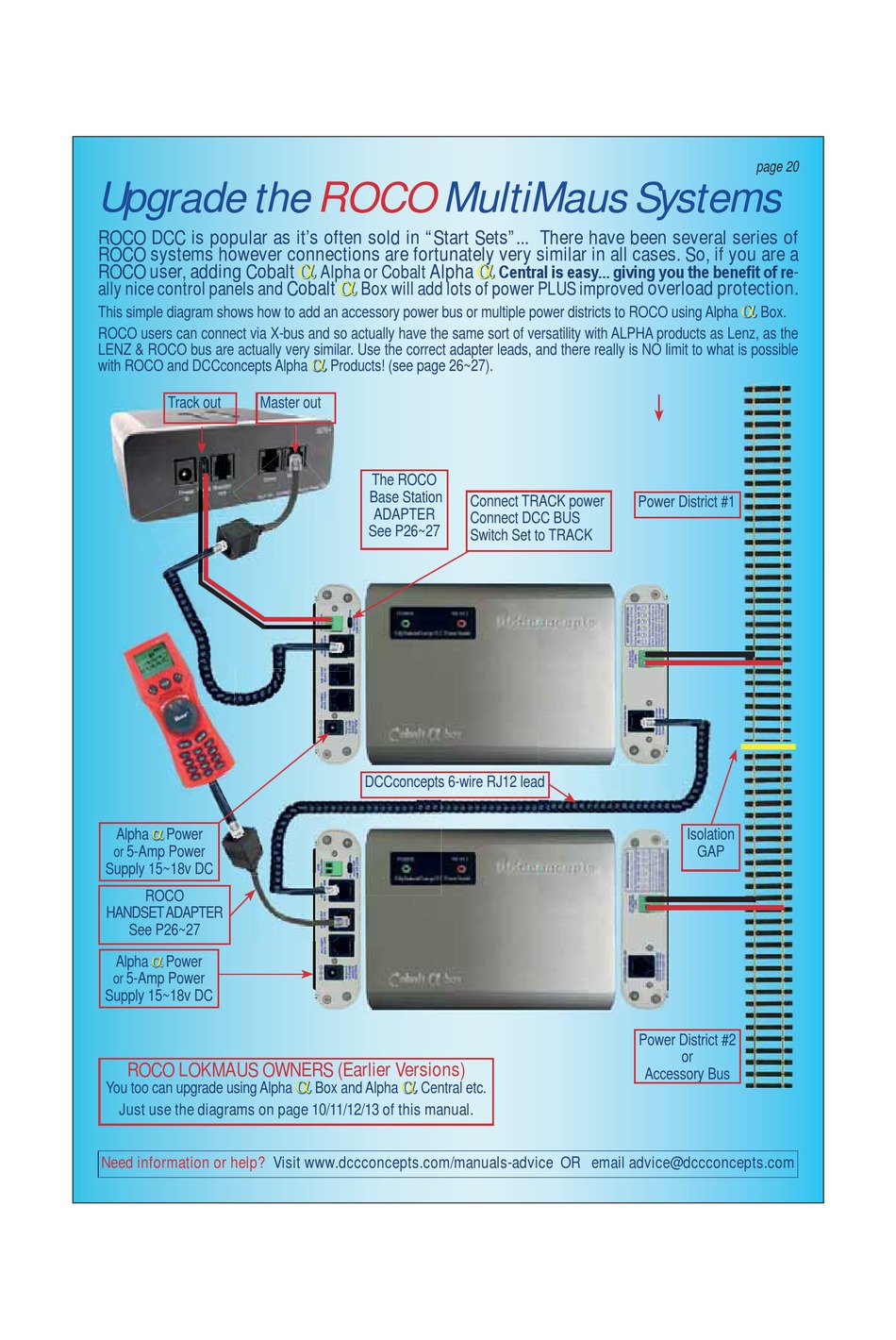

This simple diagram shows how to add an accessory power bus or multiple power districts to ROCO using Alpha
ROCO users can connect via X-bus and so actually have the same sort of versatility with ALPHA products as Lenz, as the
LENZ & ROCO bus are actually very similar. Use the correct adapter leads, and there really is NO limit to what is possible
with ROCO and DCCconcepts Alpha
Track out Master out
Alpha Power
5-Amp Power
or
Supply 15~18v DC
ROCO
HANDSET ADAPTER
See P26~27
Alpha Power
5-Amp Power
or
Supply 15~18v DC
ROCO LOKMAUS OWNERS (Earlier Versions)
You too can upgrade using Alpha
Just use the diagrams on page 10/11/12/13 of this manual.
Need information or help?
ROCO
Alpha
Alpha or Cobalt
Cobalt
Box will add lots of power PLUS improved
Products! (see page 26~27).
The ROCO
Base Station
ADAPTER
See P26~27
DCCconcepts 6-wire RJ12 lead
Box and Alpha Central etc.
Visit www.dccconcepts.com/manuals-advice OR email advice@dccconcepts.com
MultiMaus Systems
Connect TRACK power
Connect DCC BUS
Switch Set to TRACK
page 20
-
overload protection.
Box.
Power District #1
Isolation
GAP
Power District #2
or
Accessory Bus
