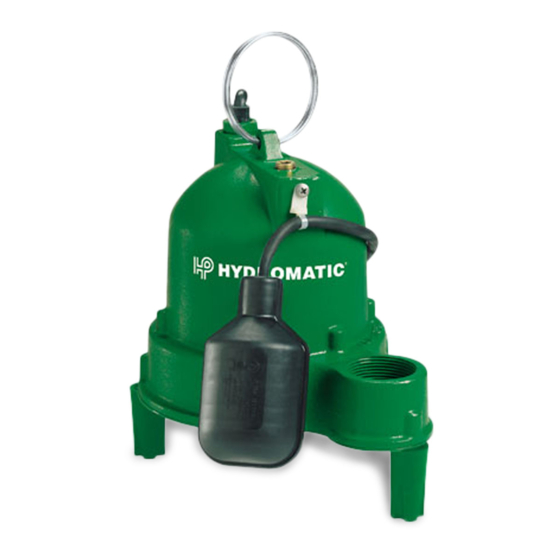

Submersible sump/effluent pump

Advertisement

Quick Links

293 WRiGhT STReeT, DeLAvAn, Wi 53115 WWW.hyDROmATic.cOm
Ph: 888-957-8677
269 TRiLLium DRive, KiTcheneR, OnTARiO, cAnADA n2G 4W5
Ph: 519-896-2163
© 2013 Pentair, Ltd. All Rights Reserved.
NOTE! TO THE iNSTallEr: Please make sure you provide
this manual to the owner of the pumping equipment or to
the responsible party who maintains the system.

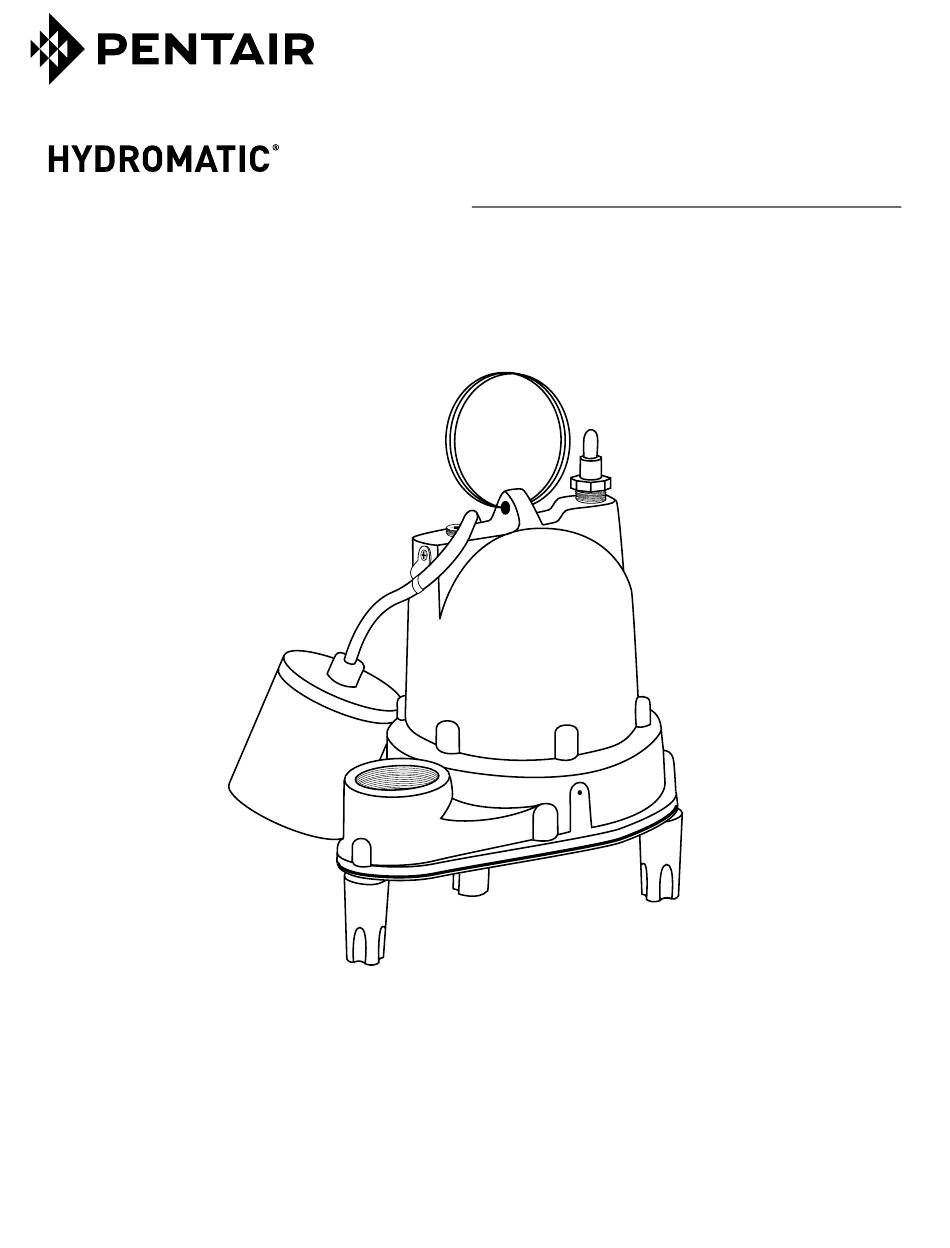

InstallatIon and
servIce Manual
SHEF30
Submersible Sump/
Effluent Pump
W-03-365 (Rev. 03/04/13)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYDROMATIC SHEF30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pentair HYDROMATIC SHEF30

  • Page 1 293 WRiGhT STReeT, DeLAvAn, Wi 53115 WWW.hyDROmATic.cOm Ph: 888-957-8677 269 TRiLLium DRive, KiTcheneR, OnTARiO, cAnADA n2G 4W5 Ph: 519-896-2163 W-03-365 (Rev. 03/04/13) © 2013 Pentair, Ltd. All Rights Reserved.
  • Page 2 2. risk of Electrical Shock: 4. Do not set pump directly on General Connect only to a properly the bottom of sump if it is Information ground ed receptacle. not solid. Raise the pump by placing bricks or concrete Septic tank is to be vented blocks un der neath it.
  • Page 3 CAUTiOn: Do not pump WArning: Always disconnect take to authorized service flam ma ble liquids, strong the pump from power source center for check. chemi cals or salt water. before handling or making Pump runs but does not any adjustments. Always wear deliver water.
  • Page 4 Pump runs and pumps out sump 5. Defective motor stator; return 2. Impeller or volute openings but does not stop. authorized Hydromatic may be plugged or partially service center for verification. plugged. Re move pump and 1. Float is stuck in up position. clean out.
  • Page 5 Pump Notes ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________...
  • Page 6 SHEF30 Typical Installation...
  • Page 7 SHEF30 Parts List Ref. No. Part No. Description Qty. Ref. No. Part No. Description Qty. 26230A000 Ring Handle 600-053-1 Wire with Terminal 14981-001-1 Pipe Plug 139-014-1 O-Ring 8507-202-2 Motor Housing 75-005-1 Cord Nut 834-030-1 O-Ring 14623-010-1 Power Cord 10' 14770-005-1 Pan Screw 14623-020-1 Power Cord 20'...
  • Page 8 Limited Warranty HYDROMATIC warrants to the original consumer purchaser (“Purchaser” or “You”) of HYDROMATIC Sump Pumps, Effluent Pumps, Sewage Pumps (other than 2-1/2”), and Package Systems, that they will be free from defects in material and workmanship for the Warranty Period of 36 months from date of manufacture. Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication, improper installation, or improper maintenance.
