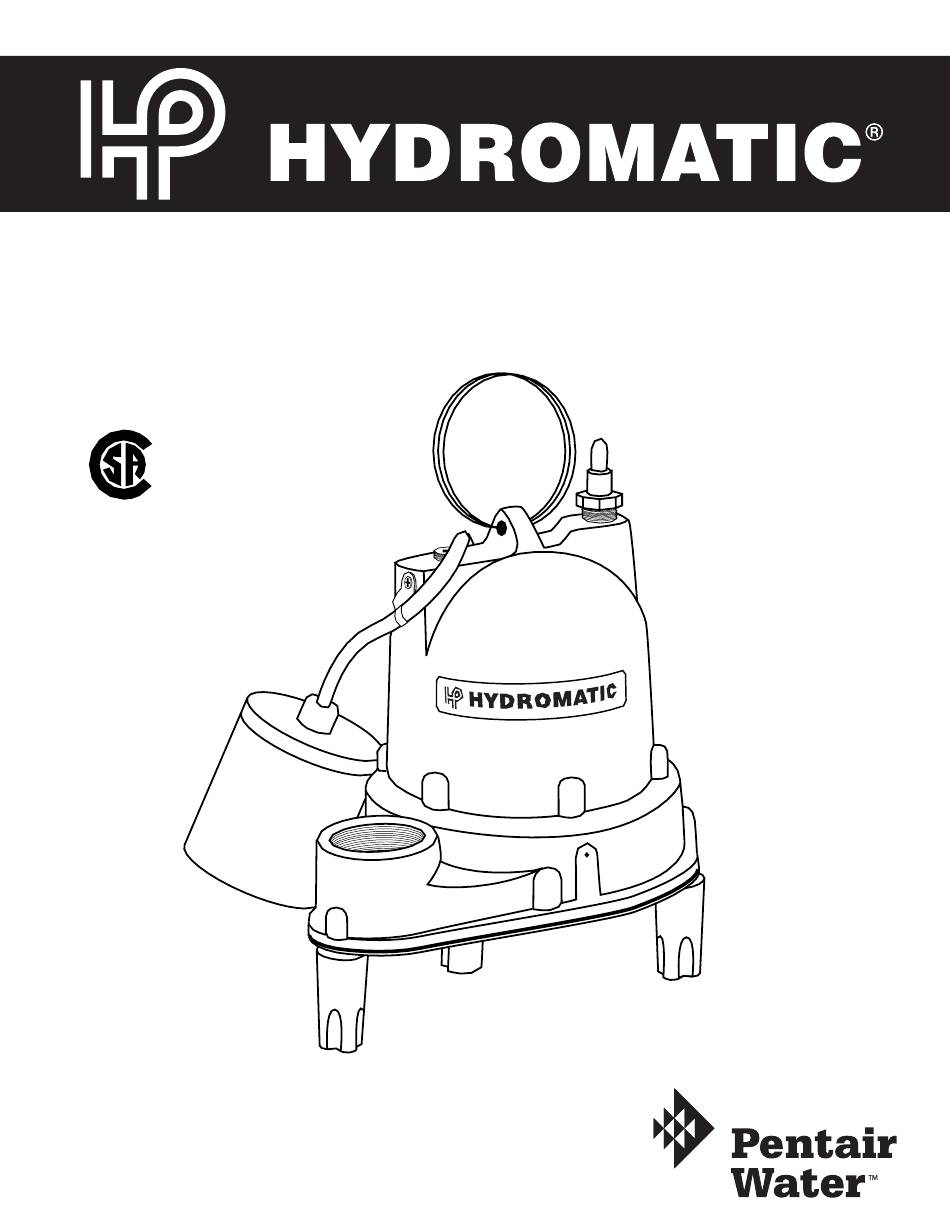

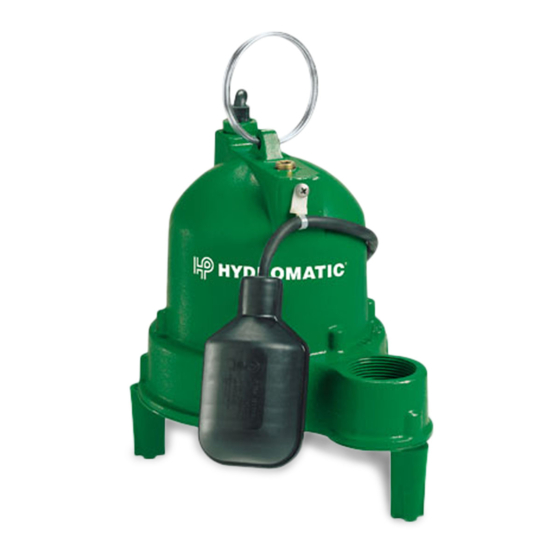

- Page 1 Pump Installation and Service Manual SHEF30 Submersible Pump/Effluent Pump NOTE! To the installer: Please make sure you provide this manual to the owner of the pumping equipment or to the responsible party who maintains the system.
- Page 2 2. Risk of Electrical Shock: the bottom of sump if it is not General Connect only to a properly solid. Raise the pump by Information grounded receptacle. placing bricks or concrete blocks underneath it. Septic tank is to be vented in accordance with local 5.
- Page 3 CAUTION: Do not pump WARNING: Always disconnect take to authorized service flammable liquids, strong the pump from power source center for check. chemicals or salt water. before handling or making any Pump runs does adjustments. Always wear deliver water. rubber boots when there is 13.In applications where the 1.
- Page 4 Pump runs and pumps out 5. Defective motor stator; return 2. Impeller or volute openings sump but does not stop. authorized Hydromatic may be plugged or partially service center for verification. plugged. Remove pump and 1. Float is stuck in up position. clean out.
- Page 5 Pump Notes ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________...
- Page 6 SHEF30 Typical Installation...
- Page 7 SHEF30 Parts List Ref. No. Part No. Description Qty. Ref. No. Part No. Description Qty. 26230A000 Ring Handle 600-053-1 Wire with Terminal 14981-001-1 Pipe Plug 139-014-1 O-Ring 8507-202-2 Motor Housing 75-005-1 Cord Nut 834-030-1 O-Ring 14623-010-1 Power Cord 10' 14770-005-1 Pan Screw 14623-020-1 Power Cord 20'...
- Page 8 WARRANTY Hydromatic warrants to the original purchaser of each Hydromatic product(s) that any part ® thereof that proves to be defective in material or workmanship within one year from date of installation or 18 months from manufacture date, whichever comes first, will be replaced at no charge with a new or remanufactured part, F.O.B.
