Features
• Quick response performance
• Commercial applications
• Listed for light and ordinary hazards
Product Description
The Model XL Commercial is a quick response sprinkler with
a fusible solder link thermal element designed for standard
coverage applications.
The flush style of this sprinkler conceals all operating parts
with the exception of the heat sensing link. When the solder
of the sensing link melts the operating mechanism releases
and allows the deflector to be extended for distributing water.
These sprinklers are listed for a maximum service pressure of
175 psi (12.0 bar).
Installation
Care must be exercised that orifice size, temperature rating,
and sprinkler spacing are in accordance with this bulletin
and the latest published standards of the National Fire
Protection Association, and approved by the Authority Having
Jurisdiction.
Apply a PTFE-based thread sealant or thread sealant tape to
the sprinkler threads. Using the Model ZX-Pendent or ZX-
Sidewall Wrench (see figure 2), install the sprinkler into the
fitting and verify the sprinkler is properly oriented.
Recommended installation torque is 8-14 lb-ft (11-19 N.m).
Do not tighten sprinklers over the maximum recommended
torque. Exceeding the maximum recommend torque may
cause leakage or impairment of the sprinklers.
Shipping caps should be removed only after walls are
finished and when escutcheons are being installed. Each
installed sprinkler must include an escutcheon, and only
the escutcheons shown in this bulletin shall be used with
the Model XL Commercial sprinkler. The use of any other
escutcheon will void all approvals and negate all warranties.
Model XL Commercial Pendent Sprinkler Summary
Sprinkler Model
XL Commercial
Listing or
Orientation
Approval
Pendent, Flush
cULus, LPCB
Horizontal
Sidewall, Flush
www.reliablesprinkler.com

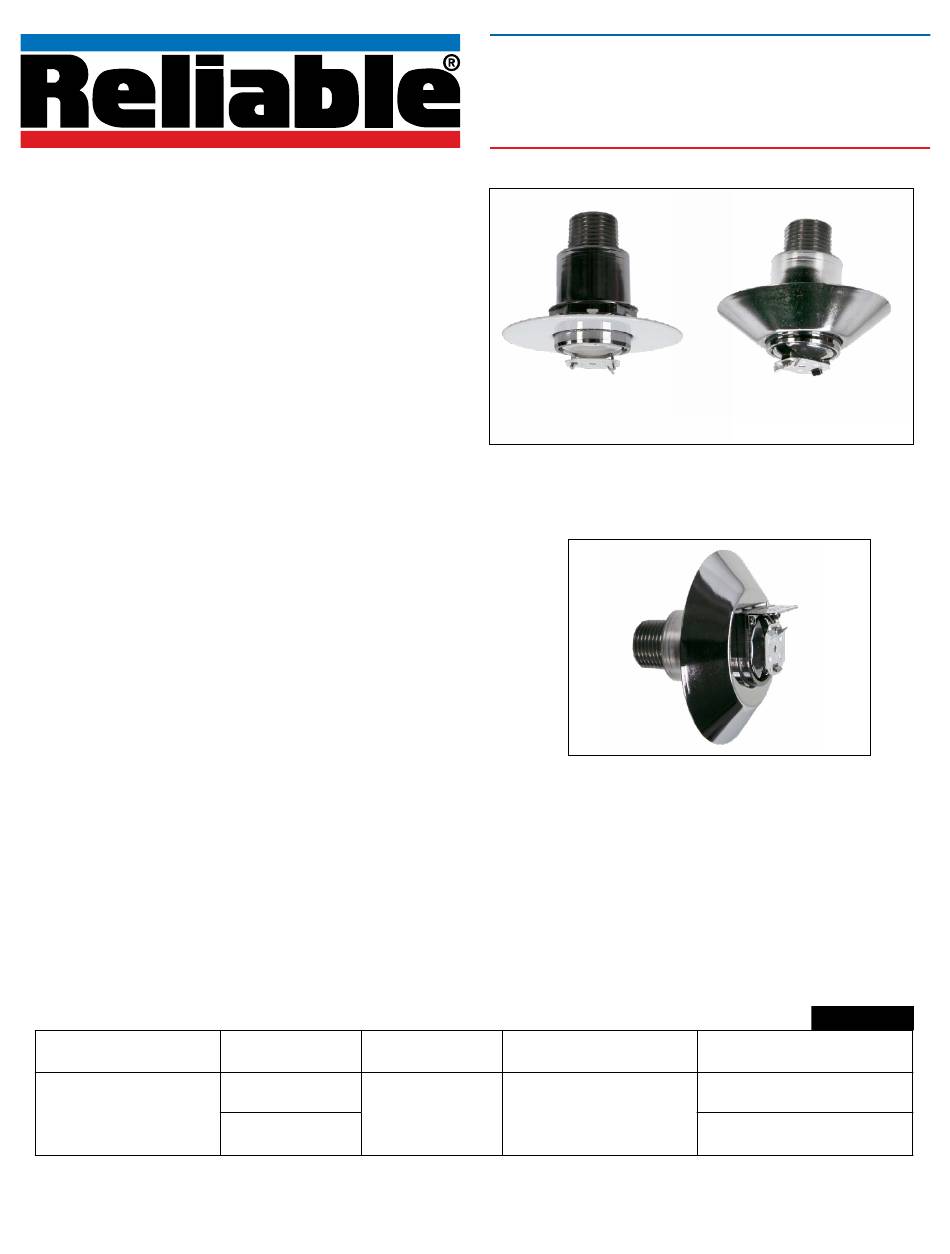

Model XL Quick Response
Flat
Model XL Commercial Pendent Sprinkler

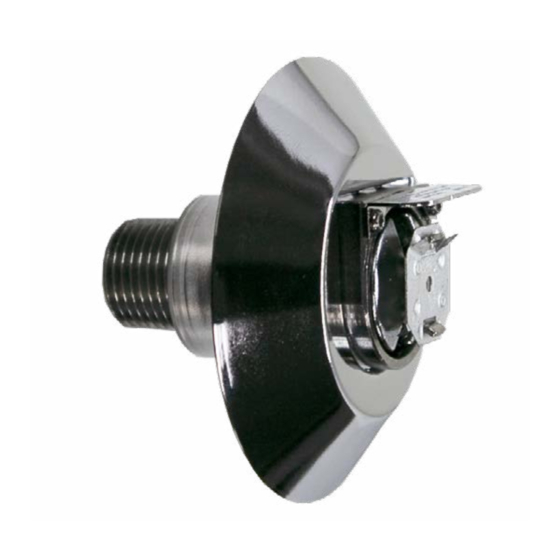

Model XL Commercial Horizontal Sidewall
Use care to avoid damaging the sprinklers before, during and
after installation. Inspect all installed sprinklers to insure that
they have not been damaged. Replace all sprinklers which
have any sign of damage.
Max. Working Pressure
psi (bar)
175 (12.0)
Bulletin 145 October 2020
Commercial Sprinklers
cULus Listed, LPCB
Conical
Sprinkler
Table A
Sprinkler Identification
Number (SIN)
R4514
R4534
