SMART-AVI UUX-PLUS Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Bandwidth 400MHz
Analog Signal Level 1 Volt
Input Interface 3 RCA RGB
Output Interface RJ45
Format YPbPr analog component video
AUDIO
Bandwidth 20 Hz
Signal Level 0dB
Impedance 10K ohms
Input Interface RCA Left and Right
OTHER
System Cable CAT5 UTP EIA 568A
Power 5V DC @ 1A
Dimensions 5.25"W x 1"H (3U) x 3.5"D
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
WUXGA, USB 1.1, CAT5
UX-TXPLUS 1
Transmitter
WUXGA, USB 1.1, CAT5
UX-RXPLUS 1
Receiver
PS5VD2A-WMT 2 PS5VD2A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

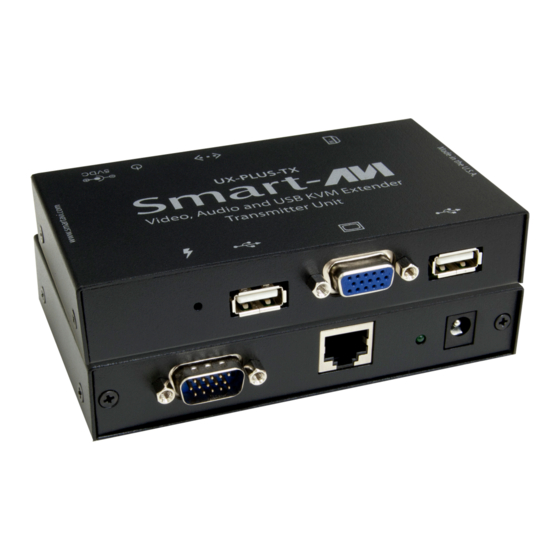

UX-PLUS
WUXGA Video amd USB
Keyboard & Mouse Splitter
and Extender over CAT5
EXTEND AND SPLIT WUXGA
VIDEO AND USB 1.1 KEYBOARD
AND MOUSE UP TO 500 FEET
OVER CAT5 CABLE
Quick Start Guide
