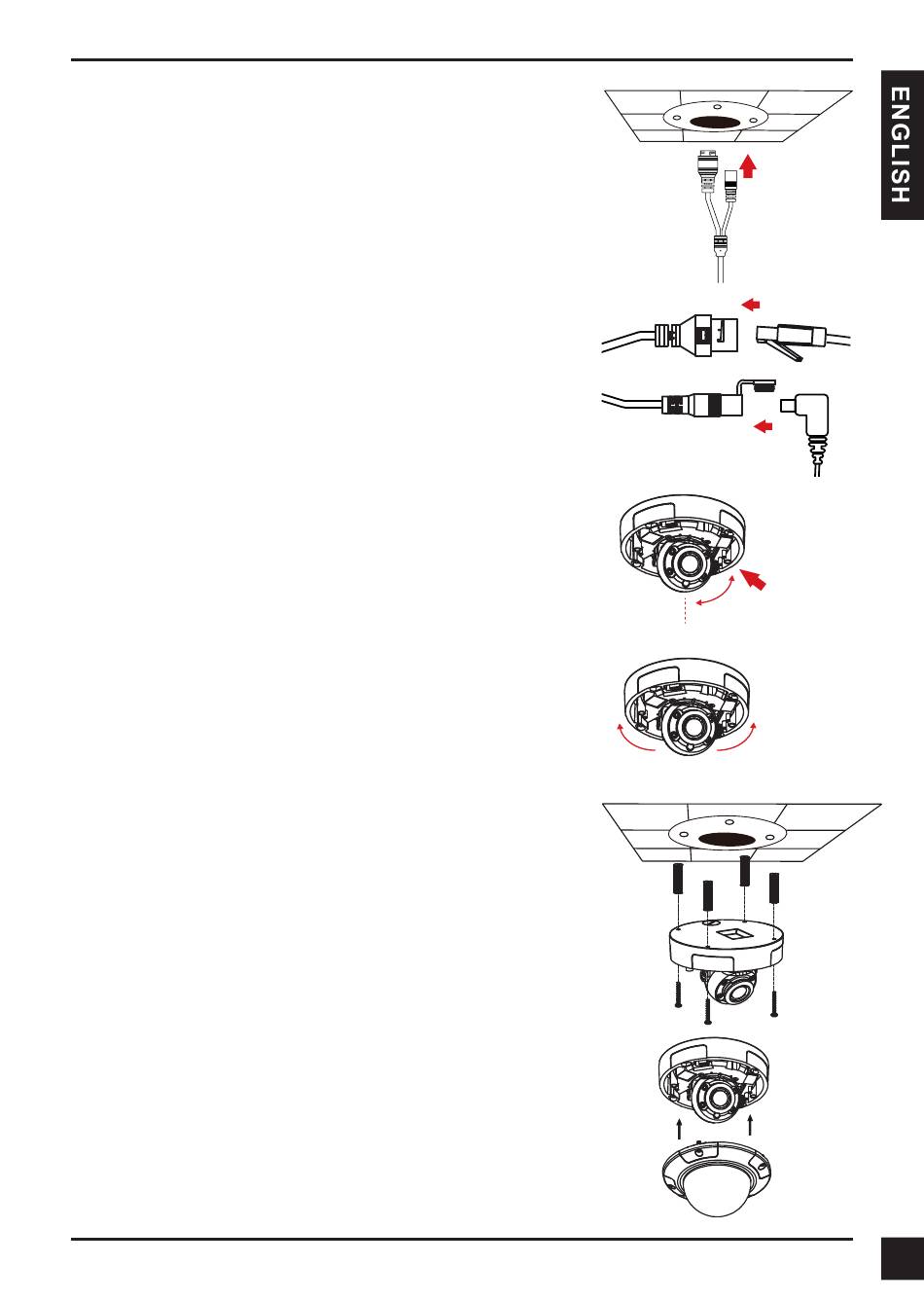

If you are mounting the camera to the ceiling, use a
flathead screwdriver to remove the plastic hole cover from
the bottom of the base, then guide the cables through the
bottom.
Connect the power and Ethernet cables, or just the
Ethernet cable if you are using a PoE connection.
Loosen the adjustment screw on the side of the lens
assembly, then re-tighten it after adjusting the lens
assembly to the desired vertical angle. The camera
supports from 30° to 90° of tilt.
You can also adjust the pan within a -120° to 120° range by
120
o
120
o
30
o
Pan(Total 240
)
o
rotating it clockwise or counter-clockwise.
Tilt(Total 60
)
o
90
o
When you are done adjusting the camera's angle, put the
inner cover back into place.
Note: The camera has a limited range of motion; if it stops
120
o
120
o
when you are adjusting it, do not attempt to rotate or tilt
Pan(Total 240
)
o
Ti
the camera any further in that direction.
90
o
Use the screws provided to mount the camera to the
ceiling.
Re-attach the camera cover.
8
D-Link DCS-4605EV Quick Installation Guide
