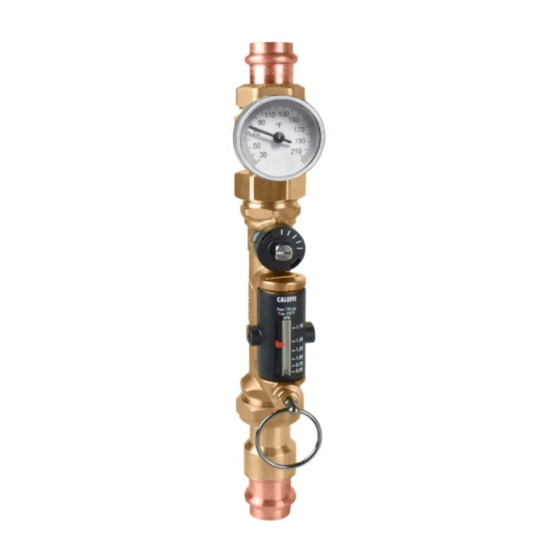

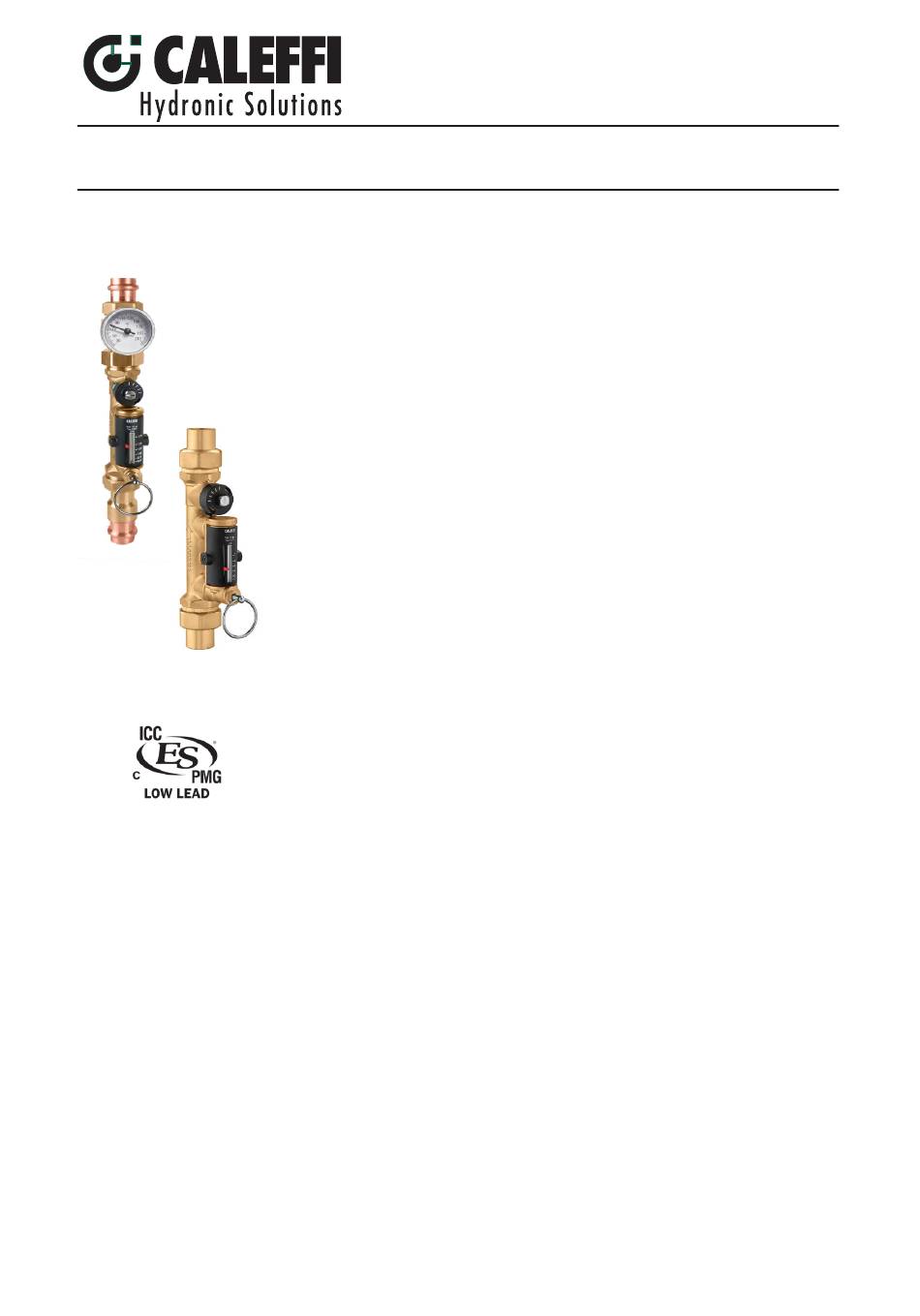

QuickSetter+™ Balancing Valve with flow meter
© Copyright 2020 Caleffi
Function
The QuickSetter+™ static balancing valve contains a built-in flow
meter and sight gauge, negating the need for differential pressure
gauges and reference charts. Circuit balancing is fast, easy and
accurate. Constructed of DZR low-lead brass, QuickSetter+™ is
ideally suited for use in plumbing applications such as hot water
recirculation systems. The built-in check valve protects against
circuit thermo-siphoning. The outlet temperature gauge (optional)
verifies the fluid temperature in the circuit. The flow meter sight
gauge is dry (not exposed to the fluid) thus eliminating the possibility
of gauge clouding/scaling over time. The QuickSetter+™ can also
be used in heating systems.
Product range
132 Series
Balancing valve with flow meter sizes 1/2", 3/4",
and 1". Includes check valve and optional outlet
temperature gauge.
Technical characteristics
Valve
Materials: Body and ball:
Ball:
Ball control stem:
Ball seal seat:
Control stem guide:
Seals:
Flow meter
Materials: Body and headwork:
Bypass valve stem:
Springs:
Seals:
Flow meter float and indicator cover:
Performance: Max. working pressure:
Max. glycol percentage:
Working temperature range:
Flow rate range unit of measurement: ½ – 1¾ gpm
Accuracy:
Control stem angle of rotation:
Required operating wrench:
Connections: ½", ¾", 1" union sweat, PEX crimp;
Lay length (press connection):
NSF/ANSI 372-2011, Drinking Water System Components-Lead Content
Reduction of Lead in Drinking Water Act, California Health and Safety Code
116875 S.3874, Reduction in Drinking Water Act, certified by ICC-ES, file PMG-1360.
1
NA18070.04
www.caleffi.com
132 Series
DZR low-lead brass
stainless steel
brass, chrome plated
DZR low-lead brass
stainless steel
stainless steel
150 psi (10 bar)
14 - 230°F (-10–110°C)
2 – 7 gpm
¾" union press
size ¾" without gauge: 7
size ¾" with gauge: 10
PTFE
PSU
EPDM
EPDM
PSU
50%
±10%
90°
9 mm
5
/
"
16
1
/
"
8
Advertisement
Related Manuals for CALEFFI QuickSetter+ 132 Series
Summary of Contents for CALEFFI QuickSetter+ 132 Series
- Page 1 NA18070.04 www.caleffi.com QuickSetter+™ Balancing Valve with flow meter 132 Series © Copyright 2020 Caleffi Function The QuickSetter+™ static balancing valve contains a built-in flow meter and sight gauge, negating the need for differential pressure gauges and reference charts. Circuit balancing is fast, easy and accurate.
-
Page 2: Safety Instruction
CAUTION: Make sure that all the connecting pipework is water tight. Caleffi shall not be liable for damages resulting from stress corrosion, misapplication or misuse of it products. -
Page 3: Consigne De Sécurité
ATTENTION: S'assurer que tous les raccordements sont étanches. Caleffi ne pourra être tenue responsable des dommages résultant de la corrosion, d’une mauvaise utilisation ou une mauvaise utilisation des produits. -
Page 4: Installation Tip
Installation The balancing valves, with built-in flow meter, must be installed by qualified technical personnel in accordance with the instructions given in 132 series this manual and with current regulations. Clean the pipes of any debris, rust, welding slag and any other contaminants. - Page 5 Flow rate The flow rate is adjusted by carrying out adjustment the following operations: A. With the aid of the indicator (1), mark the reference flow rate on which the valve is to be set. B. Use the ring (2) to slowly open the flow meter bypass valve that shuts off the flow of medium in the flow meter (3) under normal operating...
- Page 6 D. After completing balancing, release the ring (2) of the flow meter bypass valve, which will automatically go back into the closed position. E. On completing adjustment, the indicator (1) can be used to keep the setting in memory, in case checks need to be made over time.
- Page 7 Hydraulic characteristics at 100% open ∆p (psi) (psi) (bar) (feet of head) 1/2 - 1-3/4 gpm 2 - 7 gpm 46.00 20.00 10.00 9.00 7.00 5.00 3.00 2.00 0.05 1.50 0.04 0.03 1.00 0.70 0.02 0.50 0.01 0.30 0.20 0.005 0.05 0.05 0.003...
- Page 8 Dimensions and flow rate ranges 1 13/16” 110 130 ˚F 150 psi 230˚F 1.75 1.75 1.50 1.50 1.25 1.25 1.00 1.00 0.75 0.75 0.50 0.50 3 5/16”...
- Page 9 Flow rate Fully Code (gpm) open (lb) 132434AFC 1/2" PEX crimp 9" ½ — 1¾ 132439AFC 1/2" sweat 8 3/8" ½ — 1¾ 132534AFC 3/4" PEX crimp 10 1/8" ½ — 1¾ 132536AFC 3/4" press 9 7/8" ½ — 1¾ 132539AFC 3/4"...
- Page 10 Application: Balanced recirculating systems An example recirculation system is shown below: Multiple hot and cold water risers are supplied from common hot and cold water mains. The number and type of fixtures served by each set of risers will often be different. A recirculation riser accompanies each set of hot and cold risers.
- Page 12 1. Remove bypass valve assembly with an 8 mm wrench. replacing bypass 2. Install replacement bypass valve assembly, code F19346, using locktight valve stem with operating ring to seal the threads. Caleffi North America, Inc. 3883 West Milwaukee Road Milwaukee, WI 53208 T: 414.238.2360 F: 414.238.2366 11-8-19...
