CESSNA AIRCRAFT COMPANY
AIRCRAFT DIVISION
WICHITA, KANSAS 67277
Garmin G3000 Integrated Avionics System -
Adjustment/Test
ICA Supplement
MODEL NO: 525B
SUPPLEMENT NO: ICA-525B-34-00002A
SUPPLEMENT DATE: 12/05/2016
© Cessna Aircraft Company
Form 2261 Rev 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the G3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Garmin G3000

Summary of Contents for Garmin G3000

  • Page 1 CESSNA AIRCRAFT COMPANY AIRCRAFT DIVISION WICHITA, KANSAS 67277 Garmin G3000 Integrated Avionics System - Adjustment/Test ICA Supplement MODEL NO: 525B SUPPLEMENT NO: ICA-525B-34-00002A SUPPLEMENT DATE: 12/05/2016 © Cessna Aircraft Company Form 2261 Rev 1...
  • Page 3 Date: Dec 17/2015 ICA Summary Pages 1-6 Description Title Manuals Affected Maintenance Manual 34-65-00 pages Garmin G3000 Integrated Avionics System - Adjustment/ 501-540 Test • Changes the software loading procedures. Appendix A: Illustrated Parts NOT USED Catalog Appendix B: Wiring Diagram...
  • Page 4 CESSNA AIRCRAFT COMPANY AIRCRAFT DIVISION WICHITA, KANSAS 67277 Page Numbering The page number system for ICA included in this supplement have three-element numbers that are separated by dashes. The three-element number is found at the bottom right corner of the page, left of the page number.
  • Page 5 CESSNA AIRCRAFT COMPANY AIRCRAFT DIVISION WICHITA, KANSAS 67277 Illustrations use the same figure numbers as the page block in which they appear. For example, Figure 202 would be the second figure in a Maintenance Practices section. Supplement Revisions Revisions to this supplement may be accomplished if changes to this supplement are required after release of the original issue and prior to incorporation into the manuals listed in the REVISIONS table.
  • Page 6 The purpose of this Supplement is to provide the maintenance technician with the information necessary to ensure the correct functionality and performance of the Garmin G3000 Integrated Avionics System - Adjustment/Test on the Cessna Model 525B until this information gets incorporated into the next revision to the manuals listed in the "REVISIONS"...
  • Page 7 WICHITA, KANSAS 67277 LIST OF INSTRUCTIONS FOR CONTINUED AIRWORTHINESS Model 525B Maintenance Manual Chapter 34 Navigation ATA 34-65-00 Garmin G3000 Integrated Avionics System - Troubleshooting General G3000 System Troubleshooting Software Upload Troubleshooting ATA 34-65-00 Garmin G3000 Integrated Avionics System - Adjustment/Test...
  • Page 8 CESSNA AIRCRAFT COMPANY AIRCRAFT DIVISION WICHITA, KANSAS 67277 INSPECTION PROGRAM AND AIRWORTHINESS LIMITATIONS Continuous Inspection Program This ICA Supplement does not affect the current inspection program. Airworthiness Limitations Cessna Aircraft Company Model 525B Maintenance Manual, Chapter 4, Airworthiness Limitations, contains the system and airframe limitations for the Model 525B. NOTE: The Airworthiness Limitations section is FAA-approved and specifies maintenance required under Section 43.16 and 91.403 of Title 14 Code of Federal Regulations, unless...
  • Page 9 01579-00, Section 4.0, found in the Supplier Publication List. The Garmin GTC 570 Touchscreen Control Units pilot GTC 1 (left), and copilot GTC 2, (right) are the primary controllers of the Garmin G3000 Integrated Avionics System. For a general description of the GTC 570 refer to Garmin G3000 Integrated Avionics System - Description and Operation.
  • Page 10 Troubleshoot a Caution (amber)or Failed X (red) that shows on the display. Use the system fault symptoms, advisory messages, G3000 initiated manual test results, and the G3000 Line Maintenance Manual recommended procedures to analyze the system fault and make a decision as to the best procedures to follow to correct the system problem.
  • Page 11 Repeat software loading at the affected LRU. If software still fails to load continue troubleshooting. Navigate to the config page. Refer to Garmin G3000 Integrated Avionics System - Adjustment/ Test. Use the PFD softkey to remove the check marks from all software and configuration boxes.
  • Page 13 Multifunction Display (MFD), and the pilot's and copilot's Touchscreen Control Units L GTC and R GTC (GTC 1 and right GTC 2), respectively. This section also gives the G3000 system LRU and optional system LRU software and configuration files upload procedures.
  • Page 14 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94875 VIEW DETAIL PFD INITIALIZATION SCREEN DETAIL 6310T1168 DETAIL A6314P1879 B6314P1879 MFD POWER UP SCREEN C6314P1879 AA6318T1848 PFD and MFD Power On Screens Figure 501 (Sheet 1) 34-65-00 Page 502 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 15 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94876 RIGHT OUTER KNOB RIGHT INNER KNOB DETAIL SECURE DIGITAL CARD SLOTS PFD (NOTE) SOFTKEY DETAIL 6310T1168 NOTE: PFD SHOWN, MFD IDENTICAL A6314T1881 B6314T1881 GDU and GTC Software Upload Functions and Controls Figure 502 (Sheet 1) 34-65-00 Page 503 Dec 05/2016...
  • Page 16 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL • CMC software loader card NOTE • Purchased Option Unlock software loader card(s) if applicable • Cessna CDMS Maintenance card NOTE • TOLD Datbase card (if software version is 3.2 (006-B1814-10) or later.) NOTE: Software version prior to 3.2 (006-B1814-10) the software is available for download at www.txtavsupport.com.
  • Page 17 Complete Software Loading procedure and is necessary to be completed when the installed aircraft system software is not the correct software load. The Garmin G3000 Base Software Complete Software Loading is composed of the steps as given in Table 501.
  • Page 18 Database Card Loading Procedures Required TOLD Database Required Options Activation Overview General This section gives the sequential order Steps necessary to complete the Garmin G3000 Options Activation procedure as given in Table 503. 34-65-00 Page 506 Dec 05/2016 © Cessna Aircraft Company...
  • Page 19 Required Options Removal Overview General This section gives the sequential order Steps necessary to complete the Garmin G3000 Options Removal procedure. This section gives the sequential order of adjustments and tests necessary for the Aircraft Option Removal/Disable Software Configuration Procedure.
  • Page 20 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL Table 505. LRU Replacement Procedures LRU Replacement Required or Conditional Airplane Setup Required Diagnostic Data Wireless Transmit Settings Required Update System Files Required if GDU was replaced LRU Replacement Software Upload Procedures Required Update Custom Graphics Required if GDU was...
  • Page 21 CMC Folder [LH Service Messages, RH Service Messages, etc.] - OPTIONS GTC. The Record Wireless Transmit Settings Procedure is complete. Continue with the Garmin G3000 Software Installation and Loading Completion Procedures or put the Airplane Back to its Initial Condition.
  • Page 22 10. Standard Configuration Mode NOTE: This section gives the procedures to set the G3000 Avionics System to the standard configuration mode. The standard configuration mode is used to complete maintenance actions. Set the G3000 system to the standard configuration mode.

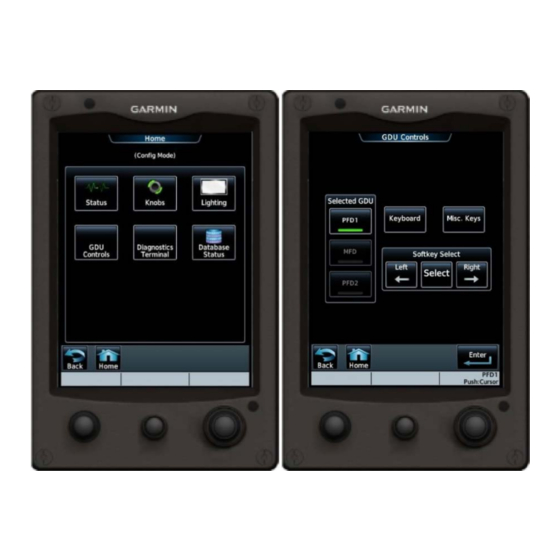

  • Page 23 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94880 GTC CONFIGURATION MODE PAGE GTC CONFIGURATION MODE - GDU CONTROLS PAGE SYSTEM UPLOAD (L PFD) GTC and GDU Configuration Mode Screens Figure 503 (Sheet 1) 34-65-00 Page 511 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 24 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94881 SYSTEM STATUS UPLOAD (MFD AND R PFD) UPLOAD COMPLETE ANNUNCIATION WINDOW GTC and GDU Configuration Mode Screens Figure 503 (Sheet 2) 34-65-00 Page 512 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 25 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL The airplane is now in Standard Configuration Mode. Update System Files Do the System Files Update. Do the Airplane Setup steps. Disengage the circuit breakers on the right circuit breaker panel in the cockpit that follow: •...
  • Page 26 Make sure that the system files update procedures are complete before you upload software. Refer to Update System Files procedures. Make sure that the G3000 Avionics System is in software configuration mode. If not, put the G3000 Avionics System into software configuration mode. Refer to Software Loading Configuration Mode.
  • Page 27 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94884 CLEAR MAINTENANCE LOG DIAGNOSTICS CONFIGURATION UPLOAD Clear Maintenance Log Screen Figure 504 (Sheet 1) 34-65-00 Page 515 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 28 Push the CHK ALL softkey on the L PFD. NOTE: Pushing the LOAD softkey will load all of the Garmin software and may take up to 4 hours to complete. (18) Select the LOAD softkey to install the full base configuration software.
  • Page 29 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94882 SYSTEM UPLOAD - BASE CONFIGURATION SYSTEM UPLOAD - MODEL SELECTION Baseline Software/Configuration Screens Figure 505 (Sheet 1) 34-65-00 Page 517 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 30 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94883 SYSTEM UPLOAD - MODEL UPLOAD UPLOAD COMPLETE ANNUNCIATION Baseline Software/Configuration Screens Figure 505 (Sheet 2) 34-65-00 Page 518 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 31 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL Insert the base software loader card in the R PFD top SD card slot. Set the R PFD to the configuration mode as follows: Push and hold the right most softkey (No.12) and engage the R PFD circuit breaker. When the R PFD initializes and shows the 'INITIALIZING SYSTEM' message, release the softkey.
  • Page 32 Some options are available on the Base Software Loader card while others are located on individual “unlock” or "enablement" SD cards. Make sure that the G3000 system is in the software loading configuration mode. If necessary refer to Software Loading Configuration Mode procedures.
  • Page 33 Troubleshooting Software Upload Troubleshooting. 16. Configuration Module Programming Program the configuration module. Make sure that the G3000 Avionics System is in standard configuration mode. If not, put the G3000 Avionics System into standard configuration mode. Refer to Standard Configuration Mode On the GTC 1, select PFD1 in the GDU CONTROLS button section of the page.
  • Page 34 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94885 CONFIGURATION MODULE UPDATE WINDOW CONFIGURATION MODULE UPDATE COMPLETE WINDOW Configuration Module Update Windows Figure 506 (Sheet 1) 34-65-00 Page 522 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 35 IDENTIFIER, ICAO AIRLINE DESIGNATOR, IATA AIRLINE DESIGNATOR, and COUNTRY CODE configuration settings for your software and options. Refer to Table 507. Table 507. Datalink Configuration Settings Configuration Garmin Software Version / Options Installed Setting V2.3 / LINK 2000+ V3.2 / LINK 2000+ V3.2 / ACARS...
  • Page 36 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A92853 AIRCRAFT CONFIGURATION PAGE (V2.3 SOFTWARE) AIRCRAFT CONFIGURATION PAGE (V3.2 SOFTWARE) Aircraft Configuration Screen Figure 507 (Sheet 1) 34-65-00 Page 524 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 37 Make sure that the G3000 Avionics System is in standard configuration mode. If not, put the G3000 Avionics System into standard configuration mode. Refer to Standard Configuration Mode.
  • Page 38 For aircraft that ARE equipped with a single or dual GSR 56 Iridium Satellite Communication System, configure per Table 509. NOTE: An Iridium connectivity subscription is required with Garmin Flight Data Services (GFDS) for these parameters to be transmitted in flight. Push ENTER to save the settings.
  • Page 39 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL Table 509. CMC Folder Transmit Priorities (In Flight Iridium) (continued) Folder Priority Retry Tx Mode Order Tx Type Xmit Alert ID L/R Engine 10,11 Wi-Fi (all 4) Manual Calibration CAS Messages Wi-Fi (all 4) Automatic Engine Faults Wi-Fi (all 4)
  • Page 40 WSSL (NOTE 1) CESSNADIAG01 INFRASTRUC- TURE NOTE 1: Favorite cannot be saved unless Garmin world wide databases are loaded. (10) (Airplanes with the optional GDL 59 installed and software version 3.2 or later) Update the Wi-Fi settings. Push the Wi-Fi setup icon.
  • Page 41 MAINTENANCE MANUAL 20. Verification The Garmin 3000 System Software reports two numbers that uniquely identify the software configuration as it exists on the aircraft. These numbers are the SYS SW VERS (System Software Version) and the CONFIG ID, which are both found on the Aircraft Status Page of either GTC when powered up in normal mode.
  • Page 42 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL Table 511. Required Airplane Options (continued) Option In Aircraft Indicator Single GSR56 Option A single Iridium transceiver is displayed on either SERVICES / TELEPHONE GTC Page Dual GSR56 Option Dual Iridium transceivers are displayed on either SERVICES / TELEPHONE GTC Page GRS56 Weather Option (Connext Weather) The CONNEXT WEATHER option is displayed on...
  • Page 43 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94877 HOMEPAGE UTILITIES PAGE SETUP PAGE AVIONICS STATUS (LRU) GTC Avionics Status Function Figure 508 (Sheet 1) 34-65-00 Page 531 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 44 Profile, Configuration Module programming, and setting the Expected Configuration, have no affect on the returned FLEET or AIRCRAFT value. NOTE: To get the latest Garmin G3000 CRC configuration ID (Fleet ID) for your airplane's specific configuration, contact Cessna Technical Support at phone: (316) 517-6261 or email: hotline@txtav.com.
  • Page 45 Locate the appropriate taw file associated with the database being updated. Drag and drop the file to the Garmin TimerTW program. The Garmin Timer TW file will prompt the user to select the SD drive to use to update and then execute and update the card with the new database.

  • Page 46: Setup Page

    CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94878 UTILITIES PAGE HOMEPAGE AVIONICS STATUS SETUP PAGE (AIRFRAME) Avionics System Software Function Figure 509 (Sheet 1) 34-65-00 Page 534 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 47 Internet database download procedures. Connect a computer to the Internet and direct a browser window to www.FlyGarmin.com. At the "GARMIN Account Sign In" field found in the top right corner of the display, type in the username and password. For assistance with the username and password contact, Cessna Customer Service. For contact information, refer to the Introduction.
  • Page 48 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL When the new database has updated the Garmin G3000 system make sure that the GPS signal is valid. Refer to Garmin GIA 63W Integrated Avionics Unit - Adjustment/Test GPS 1 and GPS 2 Operational Test.
  • Page 49 MAINTENANCE MANUAL TOLD Database Verification Make sure that the G3000 Avionics System is powered on and push the ACCEPT INITIALIZATION button on GTC1 and GTC2 if present. Navigate to the PERF page from the Home page on GTC 1 and GTC 2.
  • Page 50 Use the applicable maintenance manual procedures to make sure that the LRU(s) have been installed correctly. Make sure that the G3000 system is in the software configuration mode using the base software card. If necessary refer to Software Loading Configuration Mode.
  • Page 51 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL (13) If any configuration uploads fail, the upload must be repeated from the file that failed. Items that failed the upload procedure should remain checked. NOTE: The software/configuration upload can be done up to five times. (14) For the LRU(s) that the software configuration and software were complete you must do the LRU operational test.
  • Page 52 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A96223 Loa der Ca rd GTC 570 1 GTC 570 2 Ini ti a li ze Sys tem Cl ea r Us er Da ta Cl ea r Confi g Sys tem Ma ni fes t Ai rfra me Ai rfra me Al erts Sys tem Tri ggers...
  • Page 53 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A96224 Loa der Ca rd GTX3000 2 GTS8000 REGION LIST GTS8000 C SC GTS8000 Aud i o GWX70 REGION LIST GWX70 GSA81 Pi tch GSA80 Rol l GSA80 Ya w GSA81 Pi tch Tri m GIA63W 1 Ga i ns GIA63W 2 Ga i ns Pi tch Ga i ns...
  • Page 54 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A96225 Loa der Ca rd GSD41 2 Ca bi n Bri efi ng Opti on GIA63W 1 GSR56 Wea ther Opti on Ai rfra me DME 2 Opti on Ai rfra me GSD41 2 EROS Oxygen Ma s k Option GMA36 1 DSP GMA36 2 DSP...
  • Page 55 Put the BATTERY switch to the ON position. Let the Garmin G3000 integrated avionics system start. On the Garmin GTC 570 touch screen controller Home screen, touch the Aircraft Systems button. Make sure that the Aircraft Systems screen shows on the display.
  • Page 56 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94715 AIRCRAFT SYSTEMS PAGE HOME PAGE MAINTENANCE PASSWORD PAGE SYSTEM MAINTENANCE PAGE CDMS Diagnostic Function Figure 201 (Sheet 1) 45-40-15 Page 202 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 57 CESSNA AIRCRAFT COMPANY MODEL 525B MAINTENANCE MANUAL A94725 CMC CONFIGURATION BUILD NUMBER PART NUMBER CDMS PART NUMBER LAST BUILD DATE AVIONICS SOFTWARE VERSION CDMS Software Level Screen Figure 202 (Sheet 1) 45-40-15 Page 203 Dec 05/2016 © Cessna Aircraft Company ICA-525B-34-00002A Form 2261 Rev 1...
  • Page 58 R PFD . MFD. If necessary, put the BATTERY switch to the ON position and let the G3000 avionics power Put the copilot’s PFD (PFD2) in the configuration mode. Push and hold the far right softkey on the copilot's PFD.
  • Page 59 SYSTEM UPLOAD page, verify that the AVTN_CFG.GCA file exists in the root directory of the spare SD card you are using. Initialize the Garmin GTC 570 touch screen controllers in configuration mode as follows: Left Garmin GTC 570 touch screen controller.
