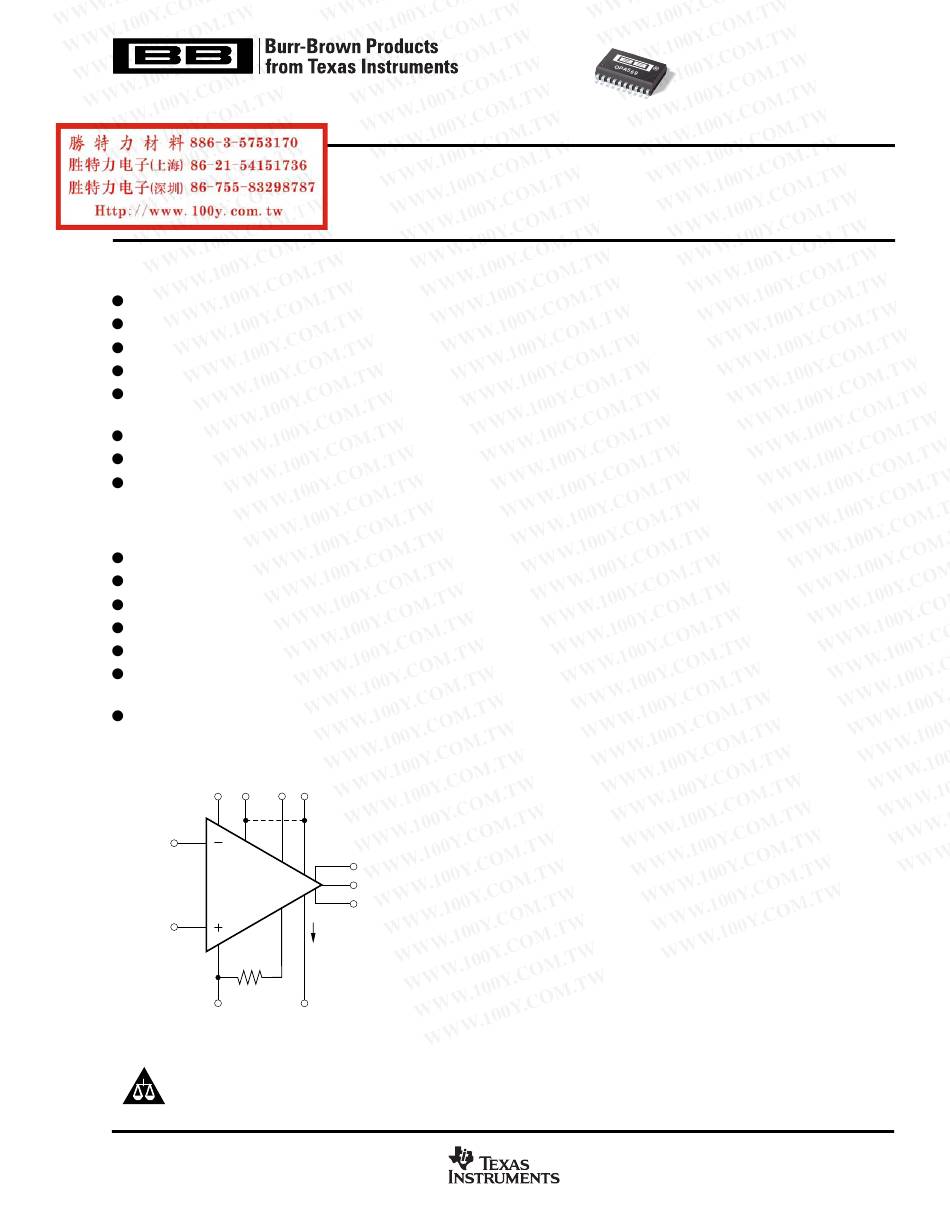

Rail-to-rail i/o, 2a power amplifier

Advertisement

Quick Links

FEATURES
HIGH OUTPUT CURRENT: 2A
OUTPUT SWINGS TO: 150mV of Rails with I
THERMAL PROTECTION
ADJUSTABLE CURRENT LIMIT
TWO FLAGS: Current Limit and Temperature
Warning
LOW SUPPLY VOLTAGE OPERATION: 2.7V to 5.5V
SHUTDOWN FUNCTION WITH OUTPUT DISABLE

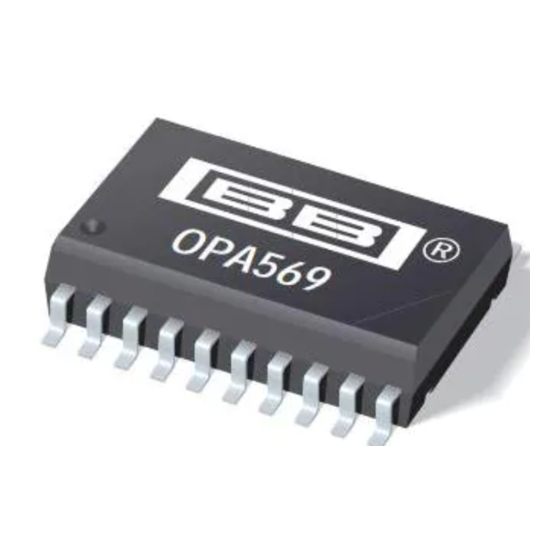

SMALL POWER PACKAGE: SO-20 PowerPAD™
APPLICATIONS
THERMOELECTRIC COOLER DRIVER
LASER DIODE PUMP DRIVER
VALVE, ACTUATOR DRIVER
SYNCHRO, SERVO DRIVER
TRANSDUCER EXCITATION
GENERAL LINEAR POWER BOOSTER FOR
OP AMPS
PARALLELING OPTION FOR HIGHER
CURRENT APPLICATIONS
Current
Thermal
Limit
V+
Flag
Flag
12,13
(1)
7
5
–In
4
OPA569
19
6
3
+In
Current
Limit
Set
17, 18
R
SET
V–
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PowerPAD is a trademark of Texas Instruments. All other trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Rail-to-Rail I/O, 2A
POWER AMPLIFIER
= 2A
O
Enable
8
Parallel Out 1
2
14, 15
V
O
9
Parallel Out 2
I = I
/475
O
NOTE: (1) Connect
for thermal protection.
I
MONITOR
www.ti.com
SBOS264A – DECEMBER 2002 – REVISED DECEMBER 2003
DESCRIPTION
The OPA569 is a low-cost, high-current, operational amplifier
designed for driving a wide variety of loads while operating on
low-voltage supplies. It operates from either single or dual
supplies for design flexibility and has rail-to-rail swing on the
input and output. Typical output swing is within 150mV of the
supply rails, with output current of 2A. Output swing closer to
the rails is achievable with lighter loads.
The OPA569 is unity-gain stable, has low dc errors, is easy
to use, and free from the phase inversion problems found in
some power amplifiers. High performance is maintained at
voltage swings near the output rails.
The OPA569 provides an accurate user-selected current
limit that is set with an external resistor, or digitally adjusted
via a Digital-to-Analog Converter.
The OPA569 output can be independently disabled using the
Enable pin, saving power and protecting the load.
The I
pin provides a 1:475 bidirectional copy of the
MONITOR
output current. This eliminates the need for a series current
shunt resistor, allowing more voltage to be applied to the
load. This pin can be used for simple monitoring, or feedback
control to establish constant output current.
Two flags are provided: one for warning of thermal over-
stress, and one for current limit condition. The Thermal Flag
pin can be connected to the Enable pin to provide a thermal
shutdown solution.
Packaged in the Texas Instruments PowerPAD™ package,
it is small and easy to heat-sink. The OPA569 is specified for
operation over the industrial temperature range, –40°C to
+85°C.
Copyright © 2002-2003, Texas Instruments Incorporated
OPA569

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Burr-Brown OPA569 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments Burr-Brown OPA569

  • Page 1 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PowerPAD is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. Copyright © 2002-2003, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.
  • Page 2 ABSOLUTE MAXIMUM RATINGS ELECTROSTATIC Supply Voltage ................. +7.5V DISCHARGE SENSITIVITY Output Current ............... See SOA Curves Signal Input Terminals (pins 2, 5, 6, and 9): This integrated circuit can be damaged by ESD. Texas Voltage ..........(V–) – 0.5V to (V+) + 0.5V ................
  • Page 3: Electrical Characteristics

    ELECTRICAL CHARACTERISTICS: V = +2.7V to +5.5V ° ° Boldface limits apply over the specified temperature range, T = –40 C to +85 At T = +25°C, R = 1kΩ, and connected to V /2, unless otherwise noted. CASE OPA569 PARAMETER CONDITION UNITS...
  • Page 4 ELECTRICAL CHARACTERISTICS: V = +2.7V to +5.5V (Cont.) ° ° Boldface limits apply over the specified temperature range, T = –40 C to +85 At T = +25°C, R = 1kΩ, and connected to V /2, unless otherwise noted. CASE OPA569 PARAMETER CONDITION...
  • Page 5: Typical Characteristics

    TYPICAL CHARACTERISTICS At T = +25°C, V = +5V, unless otherwise noted. POWER-SUPPLY AND COMMON-MODE OPEN-LOOP GAIN AND PHASE vs FREQUENCY REJECTION RATIO vs FREQUENCY –20 CMRR –40 –60 –80 –100 PSRR –120 –140 –160 –180 –20 –200 100k 100k Frequency (Hz) Frequency (Hz) OUTPUT SWING TO POSITIVE RAIL...
  • Page 6 TYPICAL CHARACTERISTICS (Cont.) At T = +25°C, V = +5V, unless otherwise noted. INPUT VOLTAGE NOISE SPECTRAL DENSITY 0.1Hz TO 10Hz INPUT VOLTAGE NOISE vs FREQUENCY 1000 1s/div 100k Frequency (Hz) TOTAL HARMONIC DISTORTION+NOISE MAXIMUM OUTPUT VOLTAGE vs FREQUENCY vs FREQUENCY = 5V = 1kΩ...
  • Page 7 TYPICAL CHARACTERISTICS (Cont.) At T = +25°C, V = +5V, unless otherwise noted. SHUTDOWN CURRENT vs SUPPLY VOLTAGE SHUTDOWN CURRENT vs TEMPERATURE = 200mA, 1A, and 2A LIMIT –55 –35 –15 Temperature (°C) Supply Voltage (V) QUIESCENT CURRENT vs CURRENT LIMIT SETTING INPUT BIAS CURRENT vs TEMPERATURE 10000 1000...
  • Page 8 TYPICAL CHARACTERISTICS (Cont.) At T = +25°C, V = +5V, unless otherwise noted. VOLTAGE ON CURRENT LIMIT SET PIN VOLTAGE ON CURRENT LIMIT SET PIN vs TEMPERATURE vs SUPPLY VOLTAGE 1.25 Current Limit = 200mA 1.19 Current Limit = 1A 1.18 1.15 Current Limit = 2A...
  • Page 9 TYPICAL CHARACTERISTICS (Cont.) At T = +25°C, V = +5V, unless otherwise noted. SMALL-SIGNAL STEP RESPONSE LARGE-SIGNAL STEP RESPONSE (G = +1, R = 10Ω) (G = +1, R = 10Ω) 10µs/div 20µs/div LARGE-SIGNAL STEP RESPONSE SMALL-SIGNAL STEP RESPONSE (G = +1, R = 1Ω) (G = +1, R = 1Ω)
  • Page 10 TYPICAL CHARACTERISTICS (Cont.) At T = +25°C, V = +5V, unless otherwise noted. DISABLE DISABLE (10Ω Load) (1Ω Load) Enable/Disable 0.8 to 2.5V Enable/Disable 0.8 to 2.5V Above Negative Supply Above Negative Supply Output Driven Output Driven to +2V to +2V 200ns/div 200ns/div POWER ON...
  • Page 11 TYPICAL CHARACTERISTICS (Cont.) At T = +25°C, V = +5V, unless otherwise noted. NO PHASE INVERSION WITH INPUTS OVERLOAD RECOVERY LARGER THAN SUPPLY VOLTAGE (G = +1) (G = +1, R = 10Ω) 40µs/div 1ms/div CURRENT MONITOR AND CURRENT LIMIT ERROR CURRENT MONITOR AND CURRENT vs SUPPLY VOLTAGE LIMIT ERROR vs TEMPERATURE...
  • Page 12: Applications Information

    APPLICATIONS INFORMATION BASIC CONFIGURATION 47µF Figure 1 shows the OPA569 connected as a basic non- inverting amplifier; however, the OPA569 can be used in 0.1µF virtually any op amp configuration. A current limit setting resistor (R , in Figure 1) is essential to the OPA569’s operation, and cannot be omitted.
  • Page 13: Current Monitor

    Current Limit Accuracy CURRENT MONITOR Internally separate circuits monitor the positive and negative The OPA569 features an accurate output current monitor current limits. Each circuit output is compared to a single ) without requiring the use of series resistance with MONITOR internal reference that is set by the user with an external the load.
  • Page 14 The accuracy of the current copy is reduced with small output currents. An internal circuit monitors the direction of the (a) +5V (b) HCT or TTL In output current and enables the positive or the negative current monitoring circuitry accordingly. There is an approxi- mate 20µs delay in the change of current direction.
  • Page 15: Output Protection

    RAIL TO RAIL INPUT RANGE though the junction temperature exceeds 150°C. This allows maximum usable operation in very harsh conditions but The input common-mode voltage range of the OPA569 degrades reliability. The Thermal Flag pin can be used to extends 100mV beyond the supply rails. This is achieved by provide for orderly system shutdown before failure occurs.
  • Page 16 Any tendency to activate the thermal protection circuit indi- cates excessive power dissipation or an inadequate heat sink. For reliable, long term, continuous operation, the junc- SAFE OPERATING AREA AT ROOM TEMPERATURE tion temperature should be limited to 125°C maximum. To Current is limited by the estimate the margin of safety in a complete design (including Copper—soldered,...
  • Page 17 Junction temperature should be kept below 125°C for reliable THERMAL RESISTANCE vs COPPER AREA operation. The junction temperature can be calculated by: θ where θ = θ + θ = Junction Temperature (°C) = Ambient Temperature (°C) = Power Dissipated (W) θ...
  • Page 18: Parallel Operation

    PowerPAD THERMALLY ENHANCED PACKAGE PARALLEL OPERATION The OPA569 uses the SO-20 PowerPAD package, a ther- The OPA569 allows parallel operation of multiple op amps to mally enhanced, standard size IC package designed to extend output current capability or improve the output volt- eliminate the use of bulky heatsinks and slugs traditionally age swing to the rail.
  • Page 19: Layout Guidelines

    9. With these preparatory steps in place, the PowerPAD IC is simply placed in position and run through the solder Thermal Land reflow operation as any standard surface-mount compo- 299 mils x 510 mils Minimum Area (7.59mm x 12.95mm) nent. This results in a part that is properly installed. OPTIONAL: (Copper) Additional 4 vias outside of...
  • Page 20: Application Circuits

    APPLICATION CIRCUITS 4.99kΩ = 10kHz 0.0033µF –100mA 49.9kΩ SHUNT 1Ω OPA569 Luxeon Star-0 49.9kΩ –2.5V High-Power LED –5V 4.99kΩ Feedback for Constant Current, 1V Input per 100mA Output as Shown. NOTE: (1) Bypass as recommended. FIGURE 19. Grounded Anode LED Driver. 1kΩ...
  • Page 21 1kΩ 1kΩ 2A max OPA569 OPA335 NOTE: (1) Bypass as recommended. FIGURE 22. Power Booster for Precision Op Amp. 3.3nF 1MΩ 10kΩ OPA569 10kΩ +2.5V +0.5V REF3025 MONITOR Luxeon 0.01µF 2.5kΩ Star –0 OPT101 High Power NOTE: (1) Bypass as recommended. (2) R establishes current limit.
  • Page 22: Packaging Information

    PACKAGE OPTION ADDENDUM www.ti.com 17-Nov-2005 PACKAGING INFORMATION Orderable Device Status Package Package Pins Package Eco Plan Lead/Ball Finish MSL Peak Temp Type Drawing OPA569AIDWP ACTIVE Green (RoHS & CU NIPDAU Level-2-260C-1 YEAR Power no Sb/Br) OPA569AIDWPG4 ACTIVE Green (RoHS & CU NIPDAU Level-2-260C-1 YEAR Power...
  • Page 25 TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements. Following are URLs where you can obtain information on other Texas Instruments products and application solutions:...
