Summary of Contents for BFT BOTTICELLI SMART BT A 850

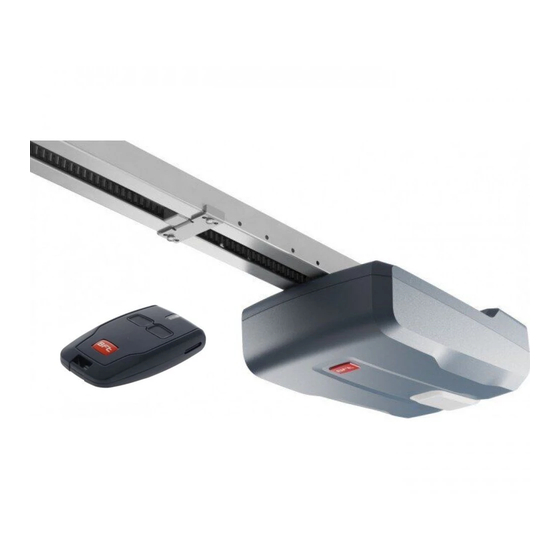

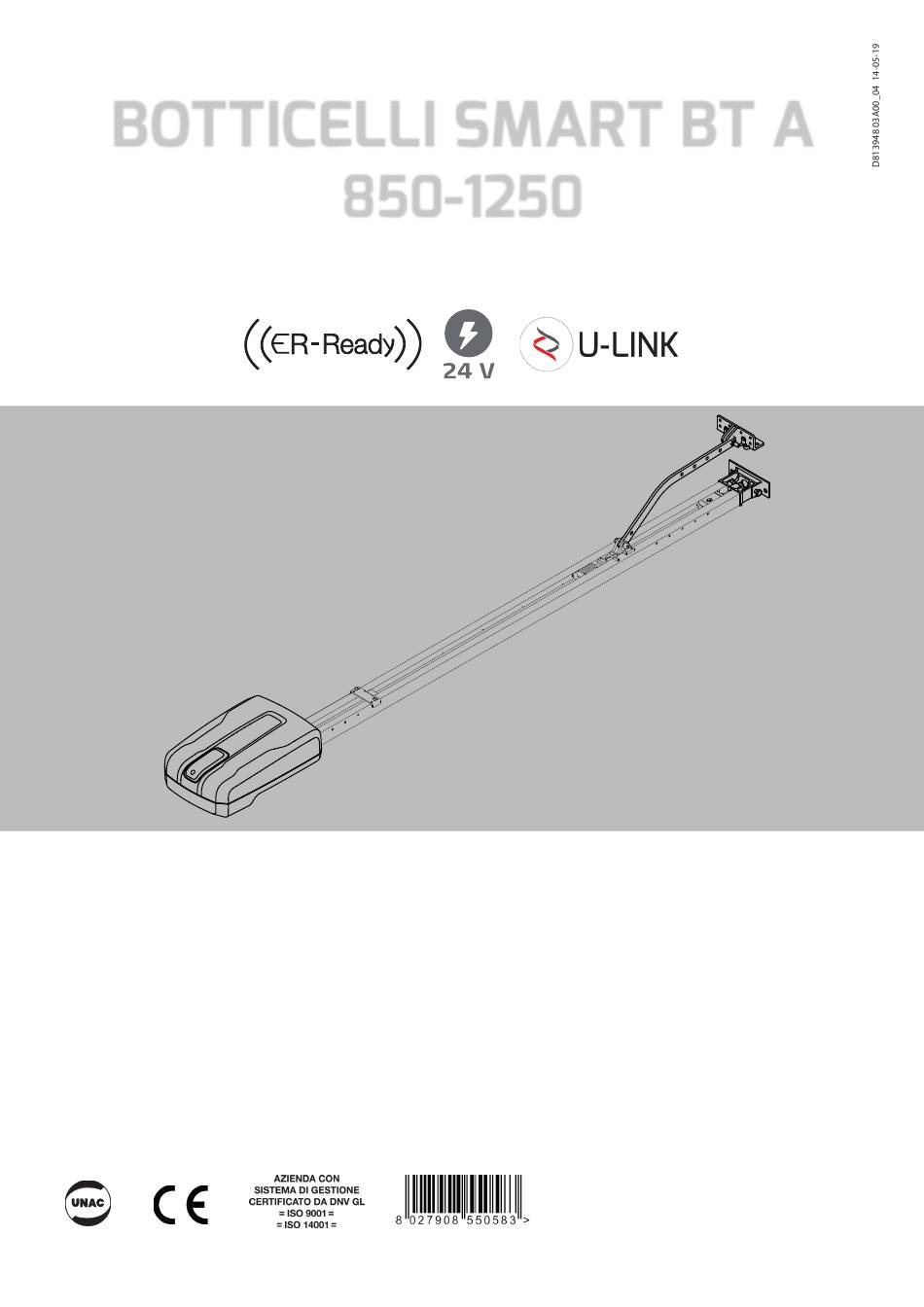

  • Page 1 BOTTICELLI SMART BT A 850-1250 INSTALLATION AND USER’S MANUAL AUTOMATION FOR OVERHEAD AND SECTIONAL GARAGE DOORS Caution! Read “Warnings” inside carefully!
  • Page 2: General Outline

    GENERAL OUTLINE The BOTTICELLI SMART BT A 850-1250 system is suitable for motorising sectional doors (fig. 1), protruding fully retracting spring-operated over-head doors (fig. 2) and counterweight overhead doors provided with an appropriate towing arm (fig. 3). The overhead door must not be higher than 3 metres.
  • Page 3: Kit Composition

    For installations that require the operator to operate at heights greater than 2 meters above the floor level, it is mandatory to use equipment with higher safety levels such as scaffolding or rolling towers. For activities outside Italy, check the specific local legislation in advance. BOTTICELLI SMART BT A 850-1250 -...
  • Page 4 It is suggested that the operator be set so that the front branch of the lever is as horizontal as possible (see figure), considering in any case that the installer must verify that the regulation concerning impacts must be complied with. 145°~ BOTTICELLI SMART BT A 850-1250...
  • Page 5: Rail Assembly

    2840 / 3440 3150 / 3750 2325 / 2925 2905 / 3505 usable travel RAIL ASSEMBLY Two piece rail, Chain BOTTICELLI SMART BT A BOTTICELLI SMART BT A 850-1250 Single rail, Belt 17 mm BOTTICELLI SMART BT A 850-1250 -...
  • Page 6 FIXING OF THE CEILING “RAIL SUPPORT BRACKET 13 mm ASSEMBLY OF TRACK HOLDING BRACKET ONTO THE WALL Ø10 mm CEILING RAIL FIXING WITH BRACKETS Ø10 mm Ø10 mm Not supplied. 5,5 mm BOTTICELLI SMART BT A 850-1250...
  • Page 7 ASSEMBLY OF TRACK ONTO THE TRACK HOLDING BRACKET HEAD ASSEMBLY TO RAIL PARTICULAR INSTALLATIONS WITH ROTATED HEAD For 90° head installations, mount the head to the rail before mounting the rail to the ceiling. BOTTICELLI SMART BT A 850-1250 -...
  • Page 8 Warning!! While the autoset function is running, the obstacle detection function is not active. Consequently, the installer must monitor the automated system’s movements and keep people and property out of range of the automated system. BOTTICELLI SMART BT A 850-1250...
  • Page 9 (1 BAR / 1 BAR OP/ 1 BAR CL) (1 BAR / 1 BAR OP/ 1 BAR CL) 50 51 52 70 72 70 73 50 51 52 (BAR 8K2/ BAR 8K2 OP/ BAR 8K2 CL) 70 72 SAFETY EDGE SAFETY EDGE BOTTICELLI SMART BT A 850-1250 -...
  • Page 10 PHOT / PHOT TEST / PHOT OP / PHOT OP TEST / PHOT CL / PHOT CL TEST / BAR / BAR TEST / BAR OP / BAR OP TEST / BAR CL / BAR CL TEST Refer to the “Safety input configuration” table. BOTTICELLI SMART BT A 850-1250...
  • Page 11 Warning!! While the autoset function is running, the obstacle detection function is not active. Consequently, the installer must monitor the automated system’s movements and keep people and property out of range of the automated system. BOTTICELLI SMART BT A 850-1250...
  • Page 12: Remote Transmitter Programming

    < < 10 s 10 s 1CH=0 < < 10 s 10 s REMOTE TRANSMITTER PROGRAMMING transmitter already memorized transmitter to be memorized 10 s 10 s TRANSMITTERS CANCELLATION Cancellation in progress Cancellation completed BOTTICELLI SMART BT A 850-1250 -...
  • Page 13 The installation is too "resilient/oscillating". Tighten it by ..adding a mechanical stop to the closure limit-switch (kit code I100025 10005) before performing a further autoset. 30. 1 5 * X = 0,1,…,9,A,B,C,D,E,F 0--- password 10-- 150- 1520 BOTTICELLI SMART BT A 850-1250...
  • Page 14 Pulse from inputs configured as Start E, Start I, Ped has effect during opening. Block pulses IBL OPEN during opening Pulse from inputs configured as Start E, Start I, Ped has no effect during opening. BOTTICELLI SMART BT A 850-1250 -...
  • Page 15 26-37 Output configured as Maintenance Not used Not used Not used Output configured as closed Gate Status Output configured as Bistable Radio Channel Output configured as timed Radio Channel Output configured as open Gate Status BOTTICELLI SMART BT A 850-1250...
  • Page 16 Input configured as safety Bar OP test, safety edge with inversion active only while opening, if while closing the movement stops. Input configured as safety Bar CL test, safety edge with inversion active only while closing, if while opening the movement stops. BOTTICELLI SMART BT A 850-1250 -...
  • Page 17 Enables connection of devices not equipped with supplementary test contacts. In the event beam is broken, photocell operation is disabled during opening. During closing, move- ment is reversed immediately. If not used, leave jumper inserted. BOTTICELLI SMART BT A 850-1250...
  • Page 18 Removes a radio control (if clone or replay is disabled) To select the radio control to be deleted, enter the position or press a button on the radio erase 1 control to be deleted (the position is displayed) Read receiver code Displays receiver code required for cloning transmitters. BOTTICELLI SMART BT A 850-1250 -...
  • Page 19: Technical Specifications

    MECHANICAL DATA BOTTICELLI SMART BT A 850: 850N Pulling and pushing force BOTTICELLI SMART BT A 1250: 1250N BOTTICELLI SMART BT A 850 : 13m2 Leaf max. BOTTICELLI SMART BT A 250 : 16m2 TRACK L.=2900 working stroke=2300 mm Working stroke TRACK L.=3500 working stroke=2900 mm...
  • Page 20: Fuse Replacement

    Kit battery charger. with retracting handle for automatically releases the side door bolts. External release device to be applied to the cre- sectional doors measuring mone bolt already fitted to the overhead max 50mm. door. BOTTICELLI SMART BT A 850-1250 -...
