TechNexion XORE-WIZARD-IMX8M-MINI Quick Start Manual page 2

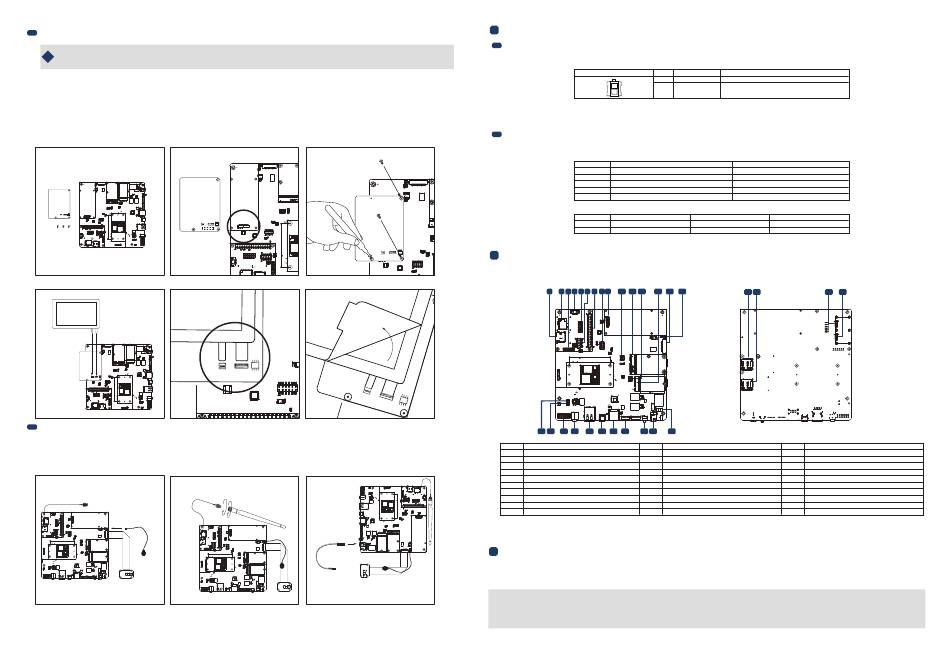

3.4 Display (optional)
• If you buy your evaluation kit with 8" or 10.1" panel, please refer to the separate 8" / 10.1" panel installation guide included with the panel for more details.
!
After you finish the panel installation, return to this guide.
Please follow the steps below to properly install the 5" display.
Step 1: Prepare evaluation board, MIPI expander board and screws.
Step 2: Locate the MIPI expander board and align the 70-pin connectors, gently press the connector on the back of the expander board onto the connector on the
evaluation board until you hear a click sound.
Step 3: Use three screws to secure the MIPI expander board to the development board.
Step 4: Locate the MIPI Display connectors on the expander board. Swivel the black retaining clips upward.
Step 5: Insert end of the TOUCH and MIPI Display FPC cables into the connectors on the board. The silver pins on the FPC cable should be facing down. Then swivel
the retaining clips back down to hold the FPC cables in place.
Step 6: Remove the protective transparent film from the display.
1 2
4 5
3.5 Final steps
Now your kit is almost assembled.
Step 1: Connect the RTC backup battery.
Step 2: Attach the extender cable to the Wi-Fi antenna.
Step 3: Connect the 2-pin Micro-Fit 3.0 cable to power up the evaluation kit.
1 2
3
3
6
3
4 Pin Definition
4.1 Power Connector (DCIN1 DCIN2)
This product features one 2-pin Micro-Fit 3.0 power connector: DCIN1 +12v.
DCIN1 +12v:
Header Pin #
1
2
2
1
Header on XORE-WIZARD-IMX8M-MINI: Molex 43045-0212 (2-pin Micro-Fit 3.0).
Cable receptacle: Molex 43025-0200 (2-pin Micro-Fit 3.0) plug with crimp contact Molex 43030-0007.
4.2 SW3-9 Default Boot Mode Switches
The XORE-WIZARD-IMX8M-MINI features internal Default Boot Mode switches.
SW3-SW7:
Switch # eMMC (default)
SW3 2-3
SW4
2-3
SW5 2-3
SW6
1-2
SW7 1-2
SW8-SW9:
Switch # Internal Boot (default)
SW8 2-3
SW9
1-2
5 External Connectors
Front view:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
26 25 24 23 22 21 20 19 18 17 16
No. Description No. Description
1 MicroSD card slot 11 mini-PCIe connector
2 Wi-Fi antenna MHF4 connector 12 SW2 switch
3 JP7- JP12 select jumper 13 M.2 KEY-B connector
4 NFC connector 14 MIPI Camera connector
5 JP1- JP6 select jumper 15 RTC Battery connector
6
VOICEHAT 12-pin connector 16 Power Fuse
7 VOICEHAT 40-pin connector 17 Power Input connector
8 18
J1 select jumper Reset button
9 MIPI Display connector 19 MI UART Debug console
10 SW1 switch 20 USB Host connectors (2x)
6 Software Installation
The unit is preloaded with software that can download and install a selection of OS images over hardwired network. Simply connect a network to the unit through the LAN RJ45
connector and power it up, then follow the steps on the screen to load the software. Local proxies will interfere with this process. For more information, go to our Knowledge Base
at: https:/ /www.technexion.com/support/knowledge-base/
• All Rights Reserved. No part of this document may be photocopied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means whether, electronic, mechanical, or otherwise
without the prior written permission of TechNexion Ltd.
• No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law no liability (including liability to any person by reason of
negligence) will be accepted by TechNexion Ltd., its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.
• TechNexion Ltd. reserves the right to change details in this publication without notice. Please download the most updated version at: https:/ /www.technexion.com/support/download-center/
© 2001-2020 TechNexion Ltd. 16F-5, No. 736, Zhongzheng Road, ZhongHe District, 23511, New Taipei City, Taiwan
2020-05-06
Signal Description
GND Ground
VCC DC Voltage input (12V DC)
microSD
1-2
1-2
1-2
2-3
2-3
Serial Downloader Boot from Fuses
1-2 2-3
2-3 2-3
Rear view:
27 28 29 30
No. Description
21 USB OTG (Type-C) connector
22 LAN RJ45 connector
23 3.5mm jack audio out
24 SW3-SW9 switch
25 R-Speaker connector
26 L-Speaker connector
27 Micro-SIM1 card slot
28
Micro-SIM2 card slot
29 CLIX1 40-pin connector
30 CLIX2 40-pin connector
