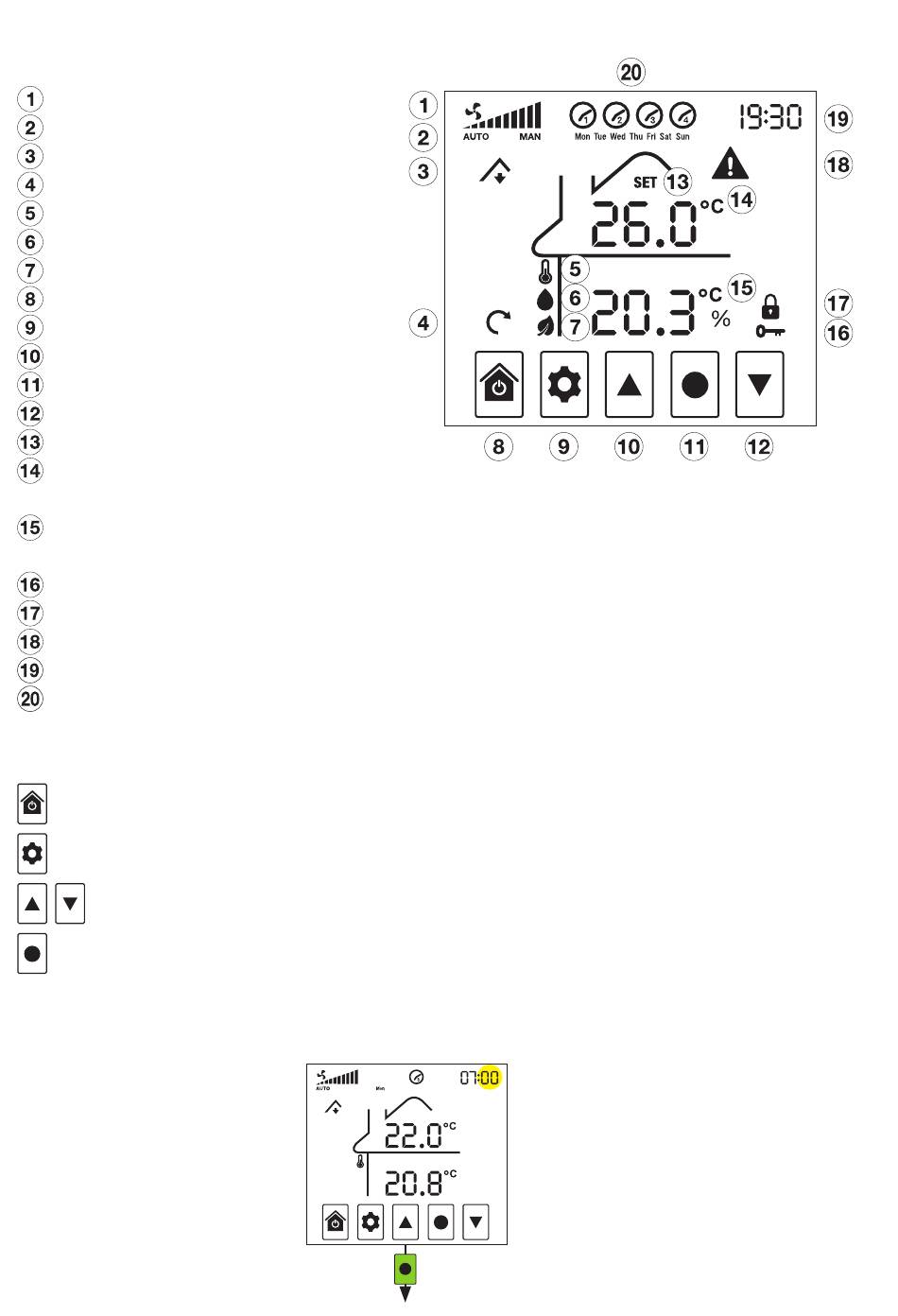

Home Screen Icons

System Fan Speed
1)
Ventilation Mode
Air Source Indicator
Recycle ON
Temperature Sensing ON
Dew Control Mode ON
Dew Point Temperature
Home and Power
Settings
Up
Select
Down
Set 2)
Fresh Air Temperature
Fresh Air Relative Humidity
Current Room Temperature or
Current Room Relative Humidity
Key Lock ON
Rental Mode ON 5)
6)
Alert
7)
Time
Scheduler Period and Day

Button Functions

Power OFF/ON or discard selections and return to Home Screen
From Home Screen enter setting screen or return to previous setting option
Scroll through setting options and change setting values
Save setting selection and go to next setting option

Screen Highlights

4
2) or
3)
4)
1) Ventilation mode selections are AUTO or MAN (manual)
2) The SET icon will appear when the temperature is being changed and the
progressive temperature changes being made will be displayed instead of
the Fresh Air temperature
3) Relative Humidity value is showing if the °C symbol is not displayed
4) Relative Humidity value is showing if the percentage % symbol is
displayed instead of the °C symbol.
5) When RENTAL mode is ON, fan OFF setting and Scheduler is disabled
6) When an electronic fault in the system occurs, the alert icon will appear
and the applicable error code(s) will be displayed instead of the time
7) Time is displayed in a 24 hour clock format
Yellow highlight
indicates icon
is flashing
Green highlight
indicates button(s)
to push
