Table of Contents
Related Manuals for Boston Acoustics SUB10F
Summary of Contents for Boston Acoustics SUB10F

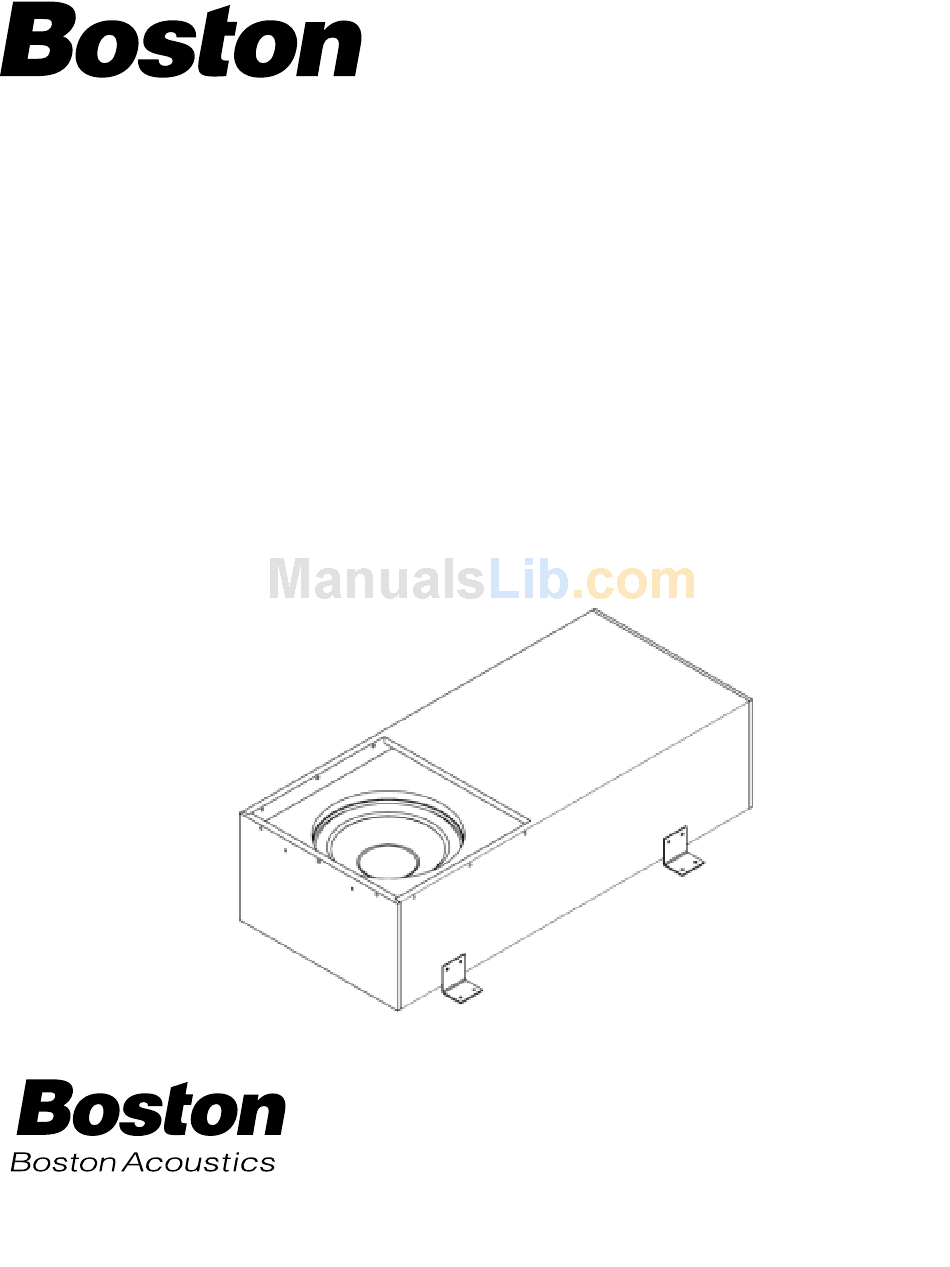

- Page 1 Sub10F In-Floor Subwoofer...
- Page 2 fire codes, and a familiarity with the environment below the floor in which the sub- woofer will be installed. Placement For maximum bass, place the Sub10F so its vent is near a corner or sidewall and is as close to the main speakers as possible. Floor Register (Not supplied) The Sub10F mounts in the floor directly below a floor register.
-
Page 3: Amplifier Requirements & Wiring
It is recommended that in the area where the Sub10F is to be mounted, the subfloor is glued to the joists and extra nails are used to secure the subfloor. Be sure the joists to which the Sub10F is mounted... -
Page 4: Preparation For Installation
1) Attach the supplied gasket to the subwoofer. See diagram below. 2) After deciding on the location of the Sub10F, use the supplied template to check for the fit of the sub- woofer and location of the floor register. It is important to check both below the floor where the Sub10F is to be mounted and in the room where the floor register is to be located. -
Page 5: Specifications
Installation (Cont.) 7) If you plan to attach the Sub10F directly to the joists using screws, use wood shims to prevent dam- age to the Sub10F enclosure. It is important to use wood shims so that there are no gaps between the sides of the Sub10F and the joists. -
Page 6: If Service Seems Necessary
Boston Acoustics representative. This warranty is limited to the Boston Acoustics Sub10F and does not cover damage to any associated equipment. This warranty does not cover the cost of removal, reinstallation, or repair of damage to the installation location caused by either the mounting or removal of the product.
