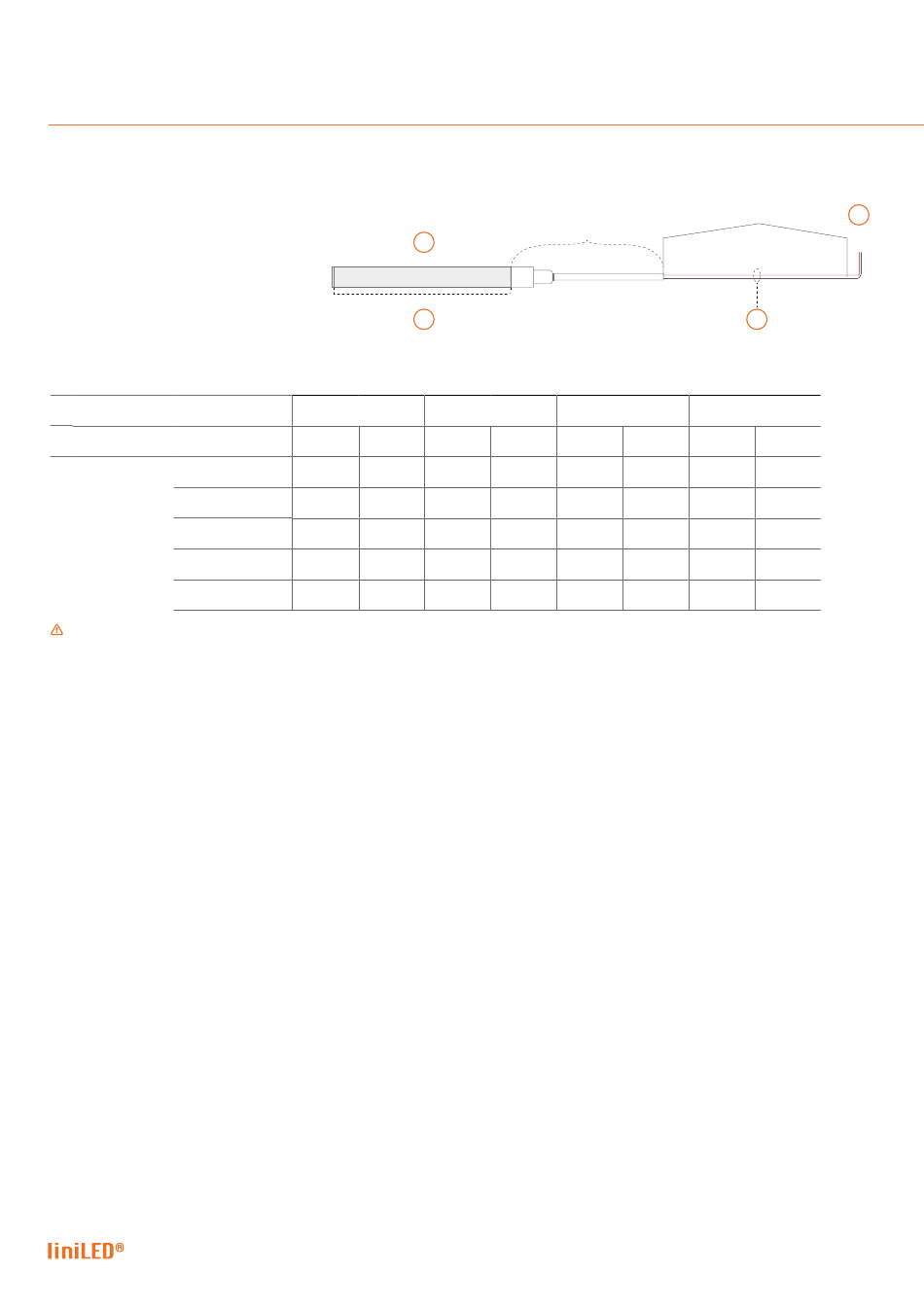

Maximum cable length

1 = Select colour temperature.
2 = Select LED strip length.
3 = Select output voltage.
4 = Select cable cross section.
Result = Maximum cable length based
on the cable thickness and power supply
voltage.
1.
Colour temperature
2.
LED strip length
3.
Voltage
4.
0.50 mm2 - 0.035 Ω/m
Cable cross section
0.75 mm2 - 0.023 Ω/m
1.00 mm2 - 0.018 Ω/m
1.50 mm2 - 0.012 Ω/m
2.50 mm2 - 0.007 Ω/m
Note: Calculations are based on a standard connector with 1 metre cable (0.5 mm2).
1
2
3000K
1 m
24 V DC 25 V DC 24 V DC
42.9 m 83.7 m 20.8 m
64.6 m 125.9 m 31.3 m
85.9 m 167.4 m 41.7 m
129.3 m 251.8 m 62.7 m
215.2 m 419.2 m 104.4 m
Top/Side Connector (1000 mm)
2 m 5 m
25 V DC 24 V DC 25 V DC
41.2 m 7.5 m 15.7 m
62.0 m 11.3 m 23.6 m
82.4 m 15.1 m 31.4 m
124.0 m 22.7 m 47.2 m
206.3 m 37.9 m 78.6 m
3
Result
+ -
4
10 m
24 V DC 25 V DC
3.1 m 7.2 m
4.7 m 10.8 m
6.2 m 14.4 m
9.4 m 21.7 m
15.7 m 36.1 m
5
