Technical specifications
Product code [m]
Power (24 V DC)
Power (25 V DC)
CCT
1
CRI
Luminous flux
1
Luminous efficiency
1
Spool length
Section length
LED type
Number of LEDs
Max. connection length
Min. operating voltage
Max. operating voltage
Dimensions
Dimmable
MacAdam Steps
Weight
Expected lifetime
Ingress protection
Storage temperature
Operating temperature
2
Minimum bending radius
Typical calculated values are given, which due to tolerances in components and production process can vary up to 10%.
1
Max. connection length between -30°C and -20°C is 7 metres.
2

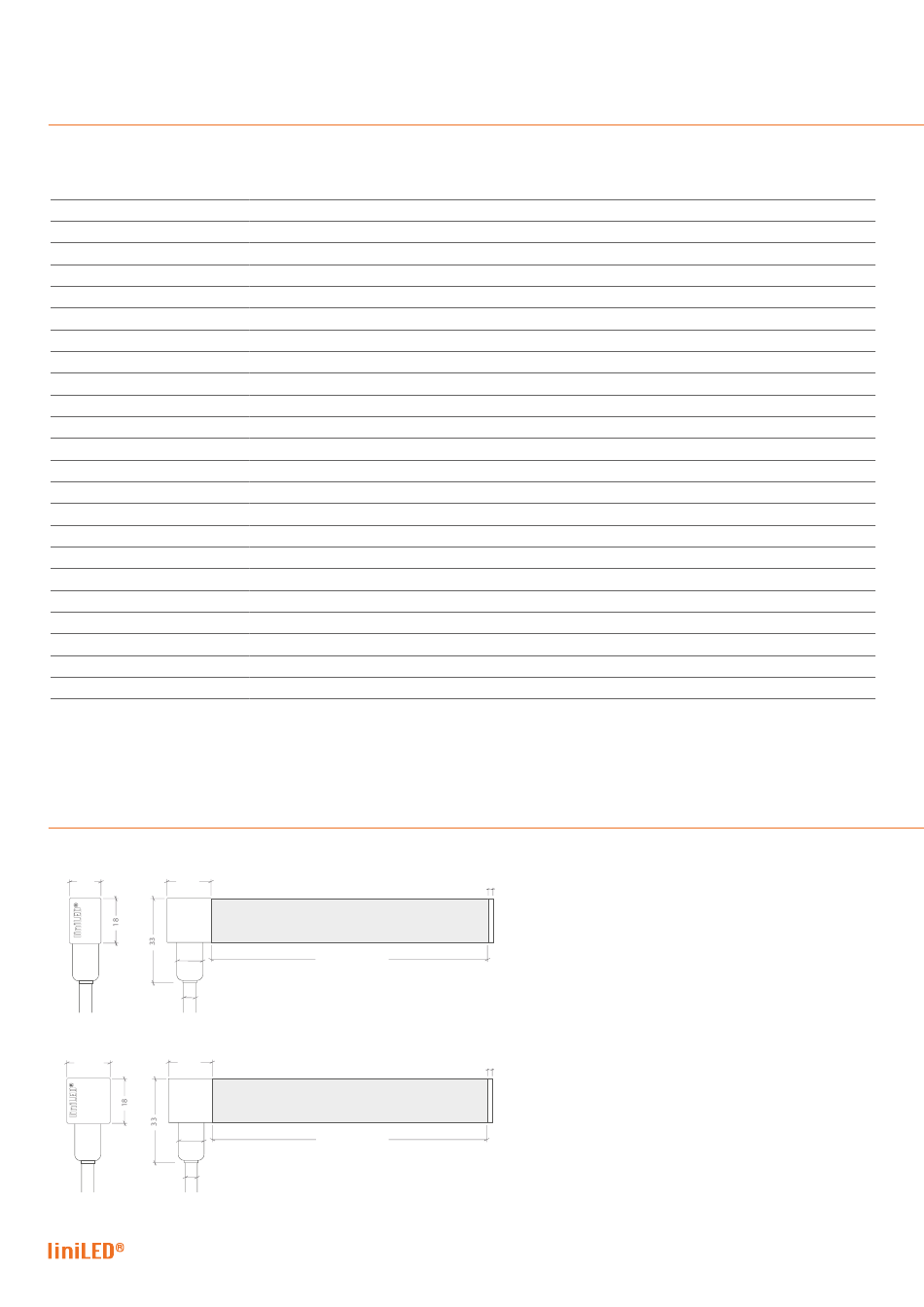

Product drawings
18
12
10
4.5
liniLED® Top Diffuse 12 & liniLED® Side Diffuse
18
18
10
4.5
liniLED® Top Diffuse 18
Top Diffuse 12
3000 K
12401
7.0 W/m
7.3 W/m
2828 K
>80
169 lm/m
24 lm/W
Max. 50m
50 mm
3014
6 per section/120 per metre
10 m
23 V DC
25 V DC
12 x 18 mm
PWM dimming, 24 V DC Common Anode
3 steps
240 gram per metre
L80/B10 > 60000 hrs @ Tc = 40°C
IP68+ > 50 m/IP69K
-30°C ... 55°C
-30°C ... 55°C
150 mm
LED strip length
LED strip length
Top Diffuse 18
3000 K
12411
7.0 W/m
7.3 W/m
6370 K
>80
196 lm/m
28 lm/W
18 x 18 mm
340 gram per metre
3
3
Side Diffuse
3000 K
12421
7.0 W/m
7.3 W/m
2866 K
>80
101 lm/m
14 lm/W
12 x 18 mm
240 gram per metre
Manual | liniLED® Diffuse
