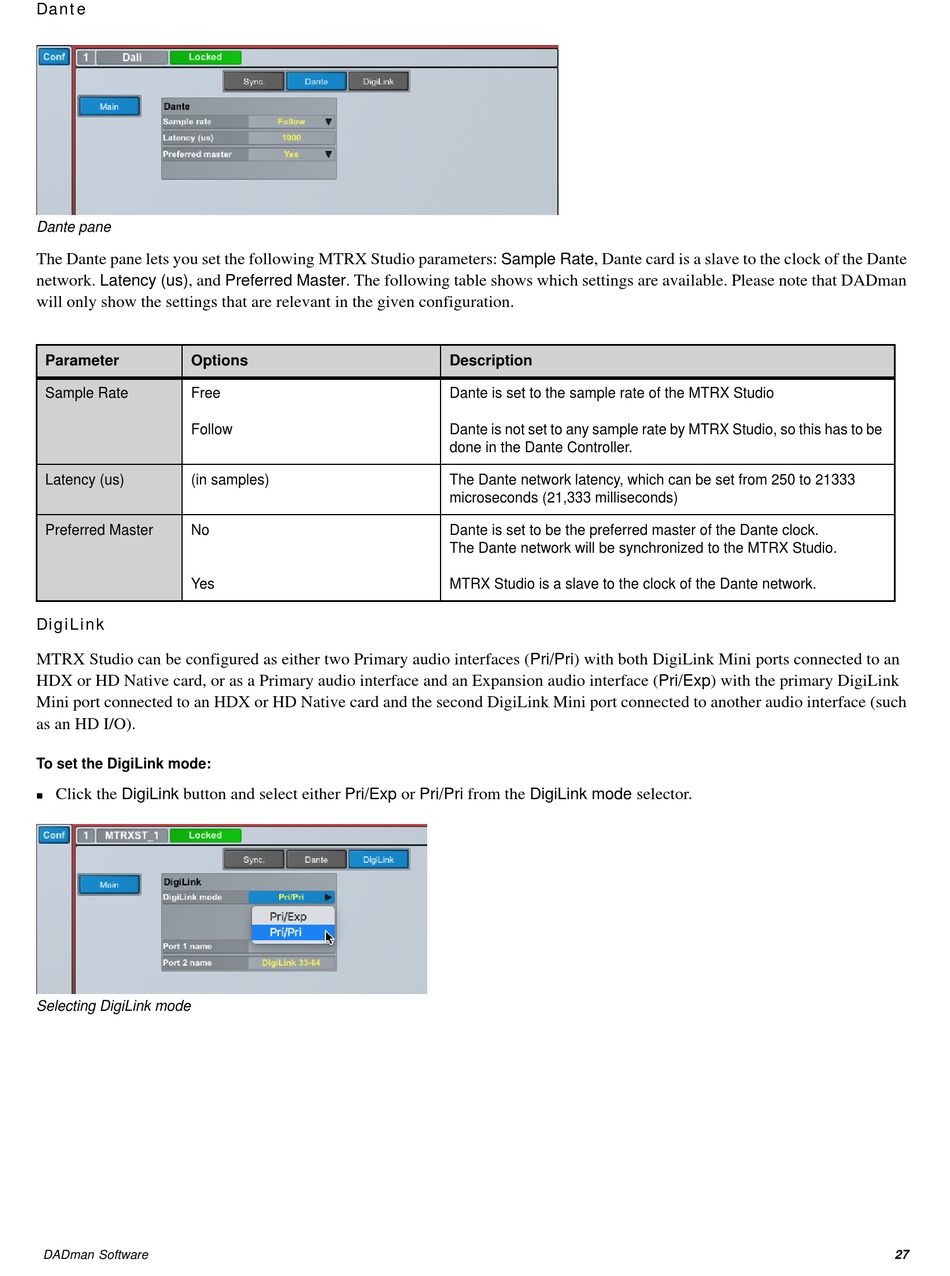

Avid Technology Pro Tools MTRX Studio Operation Manual page 31

Dante
Dante pane
The Dante pane lets you set the following MTRX Studio parameters: Sample Rate , Dante card is a slave to the clock of the Dante
network. Latency (us) , and Preferred Master . The following table shows which settings are available. Please note that DADman
will only show the settings that are relevant in the given configuration.
Parameter Options
Sample Rate Free
Follow
Latency (us) (in samples)
Preferred Master No
Yes
DigiLink
MTRX Studio can be configured as either two Primary audio interfaces ( Pri/Pri ) with both DigiLink Mini ports connected to an
HDX or HD Native card, or as a Primary audio interface and an Expansion audio interface ( Pri/Exp ) with the primary DigiLink
Mini port connected to an HDX or HD Native card and the second DigiLink Mini port connected to another audio interface (such
as an HD I/O).
To set the DigiLink mode:
Click the DigiLink button and select either Pri/Exp or Pri/Pri from the DigiLink mode selector.

Selecting DigiLink mode
DADman Software
Description
Dante is set to the sample rate of the MTRX Studio
Dante is not set to any sample rate by MTRX Studio, so this has to be
done in the Dante Controller.
The Dante network latency, which can be set from 250 to 21333
microseconds (21,333 milliseconds)
Dante is set to be the preferred master of the Dante clock.
The Dante network will be synchronized to the MTRX Studio.
MTRX Studio is a slave to the clock of the Dante network.
