Note: Rockler may not carry all products and/or sizes listed in this vendor's publication

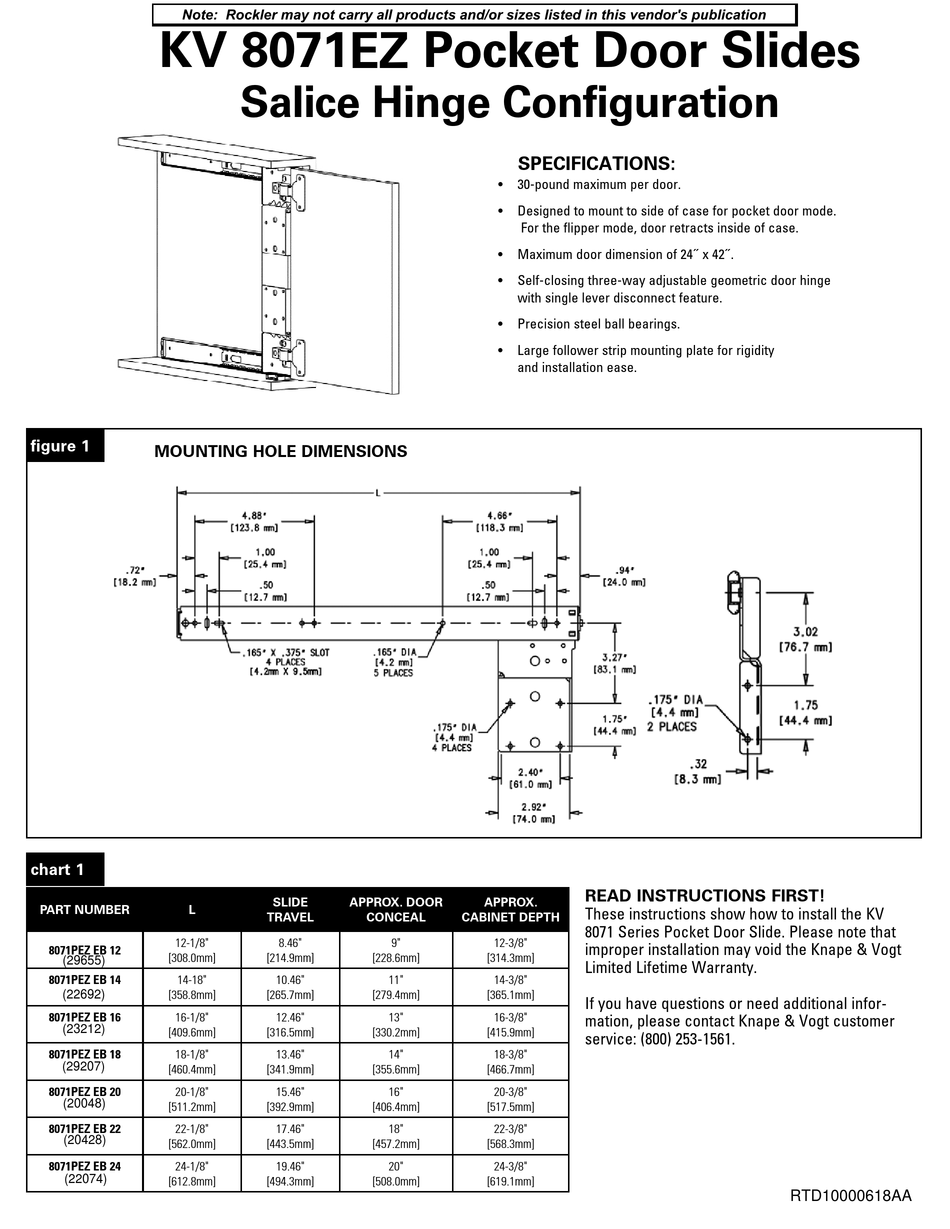

KV 8071 EZ Pocket Door Slides
figure 1
MOUNTING HOLE DIMENSIONS
chart 1
PART NUMBER
L
12-1/8"
8071PEZ EB 12
[308.0mm]
(29655)
8071PEZ EB 14
14-18"
(22692)
[358.8mm]
8071PEZ EB 16
16-1/8"
(23212)
[409.6mm]
8071PEZ EB 18
18-1/8"
(29207)
[460.4mm]
8071PEZ EB 20
20-1/8"
(20048)
[511.2mm]
8071PEZ EB 22
22-1/8"
(20428)
[562.0mm]
8071PEZ EB 24
24-1/8"
(22074)
[612.8mm]
Salice Hinge Configuration
SLIDE
APPROX. DOOR
TRAVEL
CONCEAL
8.46"
9"
[214.9mm]
[228.6mm]
10.46"
11"
[265.7mm]
[279.4mm]
12.46"
13"
[316.5mm]
[330.2mm]
13.46"
14"
[341.9mm]
[355.6mm]
15.46"
16"
[392.9mm]
[406.4mm]
17.46"
18"
[443.5mm]
[457.2mm]
19.46"
20"
[494.3mm]
[508.0mm]
SPECIFICATIONS:
READ INSTRUCTIONS FIRST!
APPROX.
CABINET DEPTH
12-3/8"
[314.3mm]
14-3/8"
[365.1mm]
16-3/8"
[415.9mm]
18-3/8"
[466.7mm]
20-3/8"
[517.5mm]
22-3/8"
[568.3mm]
24-3/8"
[619.1mm]
RTD10000618AA
Advertisement
Related Manuals for Rockler KV 8071EZ SEriEs
Summary of Contents for Rockler KV 8071EZ SEriEs
- Page 1 Note: Rockler may not carry all products and/or sizes listed in this vendor's publication KV 8071 EZ Pocket Door Slides Salice Hinge Configuration SPECIFICATIONS: figure 1 MOUNTING HOLE DIMENSIONS chart 1 READ INSTRUCTIONS FIRST! SLIDE APPROX. DOOR APPROX. PART NUMBER...
- Page 2 Step 1. Install Base Plates and Slides Step 2. Follower Strip, Hinge Cup, & Hinge Installation ALWAYS BORE A TEST BLOCK FIRST TO VERIFY HINGE CUP LOCATIONS. Step 3. Door and Guide Block Installation HINGE ADJUSTMENTS MAY BE REQUIRED BEFORE THE DOOR CAN BE RETRACTED. chart 2 Maximum Slide Width...
- Page 3 figure 2...
- Page 4 figure 3 figure 4...
- Page 5 figure 5 FRAMELESS APPLICATIONS Standard or Free Swing Inset Partial Overlay (27906) (25929) Thick & Extra Thick Inset (26446) FACE-FRAME APPLICATIONS Standard Inset Partial Overlay (27906) (25929)
-
Page 6: Hinge Adjustment
figure 6 DOOR GUIDE ROLLER INSTALLATION figure 7 figure 8 HINGE ADJUSTMENT... - Page 7 KNAPE & VOGT LIMITED LIFETIME WARRANTY FOR COMMERCIAL PRODUCTS – USA AND CANADA This warranty is given to the initial purchaser of new commercial products purchased from Knape & Vogt and its subsidiaries. The warranty covers defects in materials and workmanship. The warranty does not apply to defects resulting from misuse, damage or abuse, normal wear and tear, accident, modification, improper installation or maintenance, third party materials or damage dur- ing shipping.
