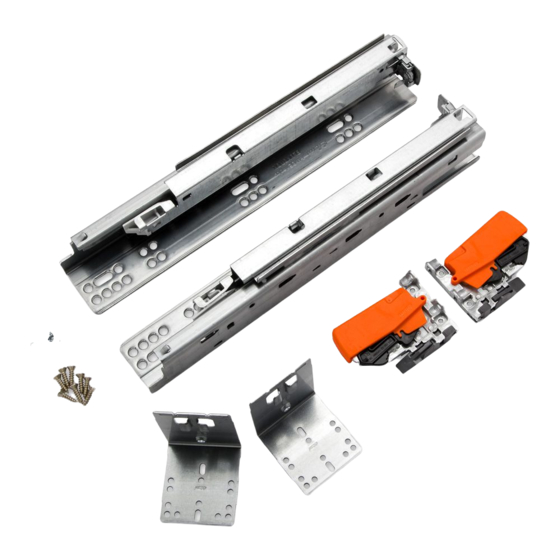

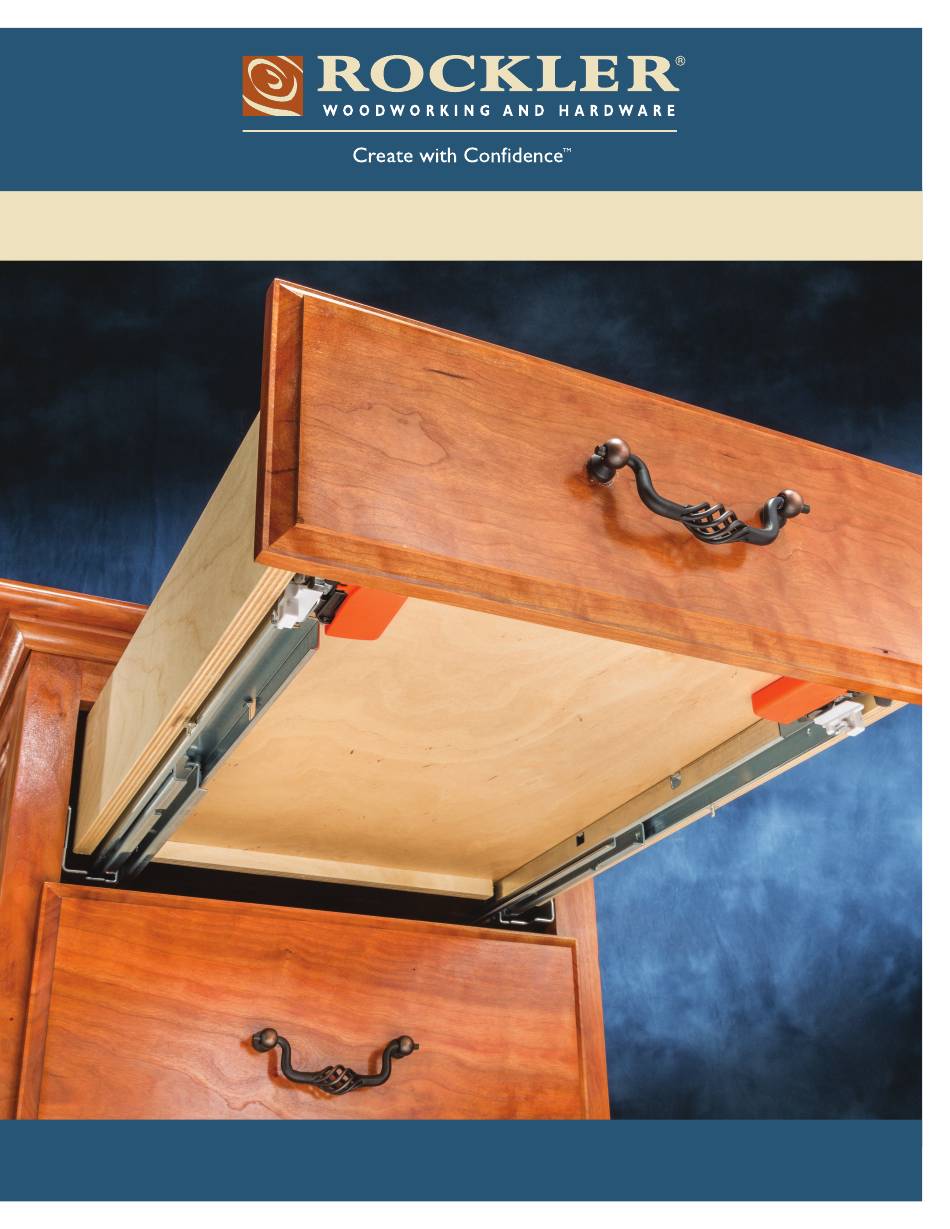

- Page 1 Blum Tandem Drawer Slide Instructions ® Effective May 2019 Review full manual instructions prior to use for important safety information. Always check Rockler.com to confirm that you are using the most recent manual version for your product.
-
Page 2: General Safety Warnings
Instructions and safety warnings for your product (see the ensure that any anyone you allow to use this product reads Instructions link on the product page at Rockler.com). and complies with all instructions and safety precautions outlined in this manual prior to use. - Page 3 TABLE 1 - INSIDE CABINET DEPTH REQUIREMENTS FOR OVERLAY APPLICATIONS Nominal Maximum Drawer Slide Minimum Inside Face Frame Maximum Frameless Maximum Slide Length Sub-Front Thickness Setback Cabinet Depth Inside Cabinet Depth Inside Cabinet Depth 9" (229mm) 5/8" (16mm) 1/8" (3mm) ⁄...
- Page 4 Frameless Cabinet Face Frame Cabinet Assess Mounting Application and Measure Cabinet Opening Before attempting to mount your Blum Tandem drawer slides, full-length blocking attached to the sides of your cabinet (or to you need to know whether your cabinets are frameless or have the cabinet sides themselves in frameless applications), those face frames, and whether your drawers are inset (i.e., they maximum dimensions do not apply.
- Page 5 Minimum Drawer Opening Width 1/4" Drawer 13/16" Opening Height 5/8" Maximum Drawer Opening Height minus 25/32" 1/2" ⁄ " 9/16" Fig. 1 Jig-It ® Undermount Drilling Guide (50713, sold separately) can help you drill the holes for the drawer components go more quickly and easily. It includes both drill bits required, as well as stop collars and a jig that allow you to quickly set the drilling depth and drilling positions.
- Page 6 Face Frame Rear Bracket Screw Placement 1/8" Fig. 3 - Face Frame Full Overlay Applications Screw Placement 1/8" Fig. 4 - Frameless or Complete Blockout Face Frame Full Overlay Applications Install the Runners in the Cabinet extends the length of the runner, attach the runner initially Blum Tandem slides are “handed”...
- Page 7 Face Frame Setback (Table 2 on page 3) Rear Bracket Screw Placement Blockout Fig. 5 - Face Frame Partial Blockout Inset Applications Screw Placement Setback (Table 2 on page 3) Fig. 6 - Frameless or Face Frame Complete Blockout Inset Applications Inset Applications 3.
-
Page 8: Making Adjustments
2. To adjust the tilt of the drawer, rotate the tab located on the back of each drawer runner/carriage (mounted in the cabinet) Fig. 9 until the drawer is plumb. Fig. 10. Check Rockler.com for updates. If you have further questions, please contact our Technical Support Department at 1-800-260-9663 or support@rockler.com Fig. 10 Rev 05/19 Distributed by Rockler Companies, Inc.
