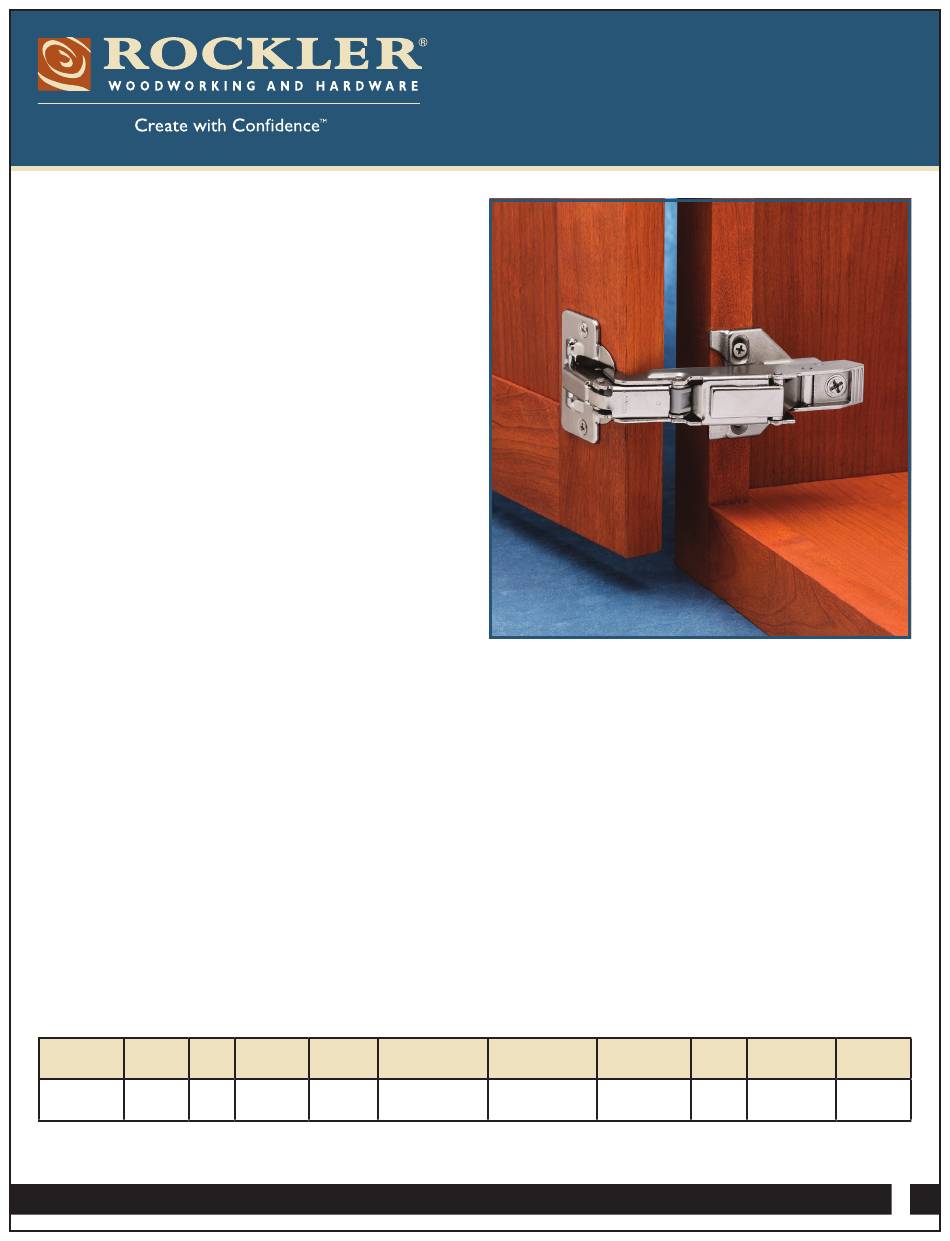

Rockler Blum 170 Face Frame Instructions

Vertical Positioning of Hinges
Although Euro-style concealed hinges allow for some vertical
adjustment, the mounting plate must line up with the hinge arm if
the two are to snap together and provide the maximum possible
adjustment range. The easiest way to accomplish this is to mark
aligning horizontal centerlines on both the door and the cabinet.
You need to consider the amount of the door's overlay or inset
when calculating the centerline positions for the door.
1. For the top hinge, measure down from the top of the cabinet
opening to the desired mounting location (typically 2"-3") and
use a combination square to mark the horizontal centerline on
the inside of the cabinet. (For the bottom hinge, measure up
from the bottom of the cabinet opening.)
Note: Be sure your hinge positions will provide adequate
clearance for any pullouts.
2. To determine the centerline location on the door, start with
the distance you measured in Step 1 and add the amount
the door will overlap at that edge.
3. Use the values calculated for the top and bottom hinge
locations in Step 2 and mark the horizontal centerlines on
the back of the door. Compare the distance between the lines
on the cabinet with the distance between the lines on the
door to verify.
Installing Hinges
1. Refer to the Door Diagram and Door Overlay chart to mark
drilling locations for the hinge cup holes on the door.
2. Using a 35mm Forstner bit, drill a hole 11mm deep for the
hinge cup, taking care to keep the bit as square as possible
to the door.
Note: For fast, easy and accurate location and drilling of
hinge cup holes, we recommend using the JIG IT Deluxe
Concealed Hinge Drilling System (53420, sold separately)
along with a Rockler 35mm Long-Shank Forstner Bit (10117,
sold separately). For 1/2" overlay applications only, a
dedicated JIG IT drill press setup block is available (58488,
sold separately).
3. Drill pilot holes for the screws, taking care not to drill all
the way through the door.
4. Position the hinge cup in the hole and use the included
screws to secure in place.
5. Repeat Steps 2-4 at other hinge location(s).
Hinge Finish Tab
Blum 170°
Nickel Var.
Face Frame
Cup Cup Minimum Door
Diameter Depth Thickness
35mm 11mm 16mm (.63")
Blum 170° Face Frame
Hinge Instructions
Installing Mounting Plates
1. Refer to the Face Frame Diagram to mark drilling locations
for the hinge plates.
2. Drill pilot holes for the mounting screws.
Note: For fast, easy and accurate location and drilling of
mounting plate pilot holes, we recommend using the JIG IT
Hinge Plate Template D (57345, sold separately) along
with a Rockler/Insty-Drive #6 Self-Centering Bit (68991,
sold separately).
3. Use the included screws to secure the mounting plates
onto the face frame.
4. Mount the doors by clipping the hinge arms onto the
mounting plates.
Check Rockler.com for updates. If you have further questions, please
contact our Technical Support Department at 1-800-260-9663
or support@rockler.com
Maximum Door
Adjustments
Thickness
24mm (.94") 3-way cam
23554
Clip-on Minimum
Gap
Mounting Reveal
1mm Yes 0mm
