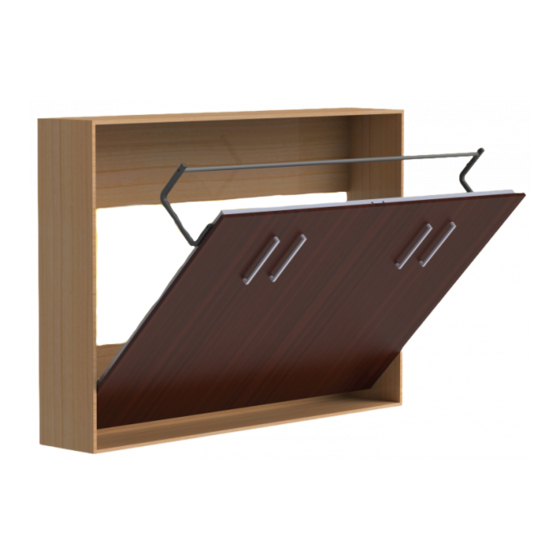

- Page 1 HORIZONTAL MURPHY BED HARDWARE KIT INSTRUCTIONS E ective July 2021 Review instructions fully prior to use for important safety information. Always check Rockler.com to confi rm that you are using the most recent version for your product.
-
Page 2: General Safety Warnings
(see the Instructions link on the product page this product reads and complies with all instructions at Rockler.com). and safety precautions outlined in this manual prior to use. > Before using another tool with this product, always >... - Page 3 Danger indicates a hazardous situation that, if not avoided, will result in death or serious injury. Warning indicates a hazardous situation that, if not avoided, could result in death or serious injury. Caution indicates a hazardous situation that, if not avoided, may result in minor or moderate injury or property damage.
-
Page 4: Parts List
PARTS LIST Twin Qty. Full Qty. Queen Qty. A1 Left Frame Bar (with pivot point) A2 Right Frame Bar (with pivot point) B Front and Back Frame Bar C Short Center Frame Support D Interior Frame Support E Long Center Frame Support F Frame Joint Bracket G1 Piston H Mattress Support... - Page 5 Twin Qty. Full Qty. Queen Qty. T Threaded Insert U M8 x 16mm Screw V #10 x 55mm Screw W #8 x 15mm Screw Z M5 x 15mm Screw AA M6 x 30mm Bolt BB M8 x 45mm Bolt DD Nylon Washer EE M5 Nut FF M8 Locking Nut GG Temporary Stops...
- Page 6 CABINET PARTS (NOT INCLUDED) > Do NOT construct the cabinet from MDF, particleboard or melamine-coated MDF. > Do NOT modify design to remove Upper and Lower Headboards (3 and 4) These parts serve an important safety function. MINIMUM INTERIOR OPENING SIZES Width Height Depth...
- Page 7 REQUIRED TOOLS (NOT INCLUDED) Drill Circular Saw Stud Finder Tape Measure or Table Saw Pencil 3/8" Nut Driver or Phillips Screwdriver Doweling Jig Socket Wrench 13/64" Drill Bit 5/16" Drill Bit 3/16" Drill Bit 5/32" Drill Bit 3/8" Drill Bit 27/64"...
- Page 8 Bracket Installation 1. Cut all pieces to the dimensions listed for your bed size. 2. Mark the drilling locations on the right and left cabinet Sides (1) for the Threaded Inserts (T) that will be used to attach the Mounting Plates (I). Drilling Guide. 3.
- Page 9 Recommended Cabinet Assembly (Parts Not Included) 2. While the Top (2) and Upper Headboard (3) are clamped in place, drill and countersink (if desired) pilot holes for #8 x 2" Screws (not included). Fig. 2. > Failure to use appropriate fasteners and construction 3.
- Page 10 6. Position the two assemblies so that the front edge of the back edge of the right Side (1) and the back face of the Top (2) and Bottom (2) are resting on the floor. (You will Lower Headboard (4), as well as three screws on the outside need to prop up the Upper and Lower Headboard (3 and 4) face of the right Side (into the Lower Headboard).
- Page 11 Stud Locations Lag Bolt Locations To avoid the risk of serious injury, you MUST locate wooden studs in your wall using a stud finder and install lag bolts securely into them. Stud and lag bolt locations in this image are for illustration purpose only.
- Page 12 Install the Wall Brackets > Each Wall Bracket (HH) MUST be mounted flush on the cabinet top and flush to the wall with no gap with all six screws. Failure to do so increases the risk of cabinet failure and serious personal injury. 1.
- Page 13 Frame Exploded View 1. Lay out the Left Frame Bar (A1) and the Right Frame You will use a total of six M8 x 50mm Bar (A2) on the floor, with the Front and Back Frame Bolts (BB) and six M8 Locking Nuts (FF) in the next step. Bars (B) and the Frame Joint Brackets (F) between them (as they will be assembled).
- Page 14 Do NOT place this row Pivot Point Pivot Point Do NOT place this row Fig. 9 Install the Slats 1. Take two Slats (O) and place a Slat Cap (P) on one end of each. Connect them by inserting the other ends in a Double Slat Cap (Q).
- Page 15 Frame pushed past the edge of the cabinet Mounting Plate Saddle Pivot Point Fig. 11 Fig. 12 2. Install the frame in the Mounting Plates (I) by positioning the bearing of the pivot points on the Left and Right Frame Bars (A1 and A2) in the saddle of each plate.
- Page 16 Fig. 14 Fig. 15 5. Connect the two sections of the Foot Bar (N) to form one 7. With the Temporary Stops (GG) still holding the top of the long bar with two M6 x 15mm Bolts (MM) and two M6 frame out from the cabinet, fit a Nylon Washer (DD) onto the Nuts (OO).
- Page 17 6" 6" 6" 6" ⁄ " Measurements ⁄ " are for the placement of this hole Back of ⁄ " Door Panel Full Bed Back of Door Panel Door Panel ⁄ " (4 Panels required for Full Bed) 15" 12" 6"...
- Page 18 4. Hook the Door Panel(s) (5) onto the frame and push down until they are firmly in place. Center and fine-tune the position of the Door Panel(s). Fig. 17. The bed will not stay down without the weight of a mattress. You MUST have an adult helper hold down the bed to avoid the risk of serious personal injury from the bed suddenly slamming shut.
- Page 19 Fig. 19 Fig. 20...
- Page 20 > TO AVOID THE RISK OF SERIOUS INJURY, Check Rockler.com for updates. If you have further questions, please DO NOT ALLOW CHILDREN TO PLAY ON contact our Technical Support Department at 1-800-260-9663 THE BED UNIT OR OPERATE IT WITHOUT or support@rockler.com...
