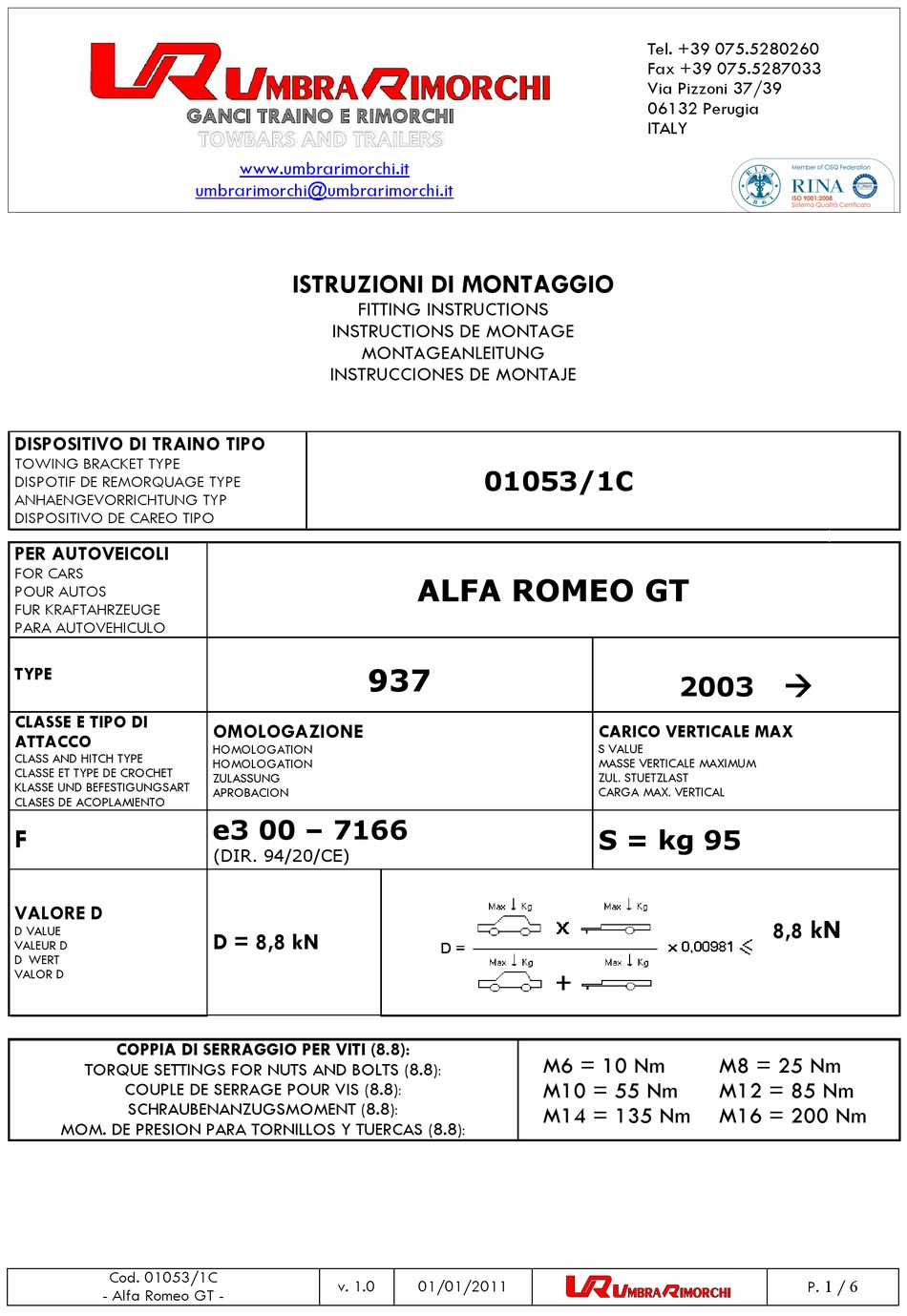

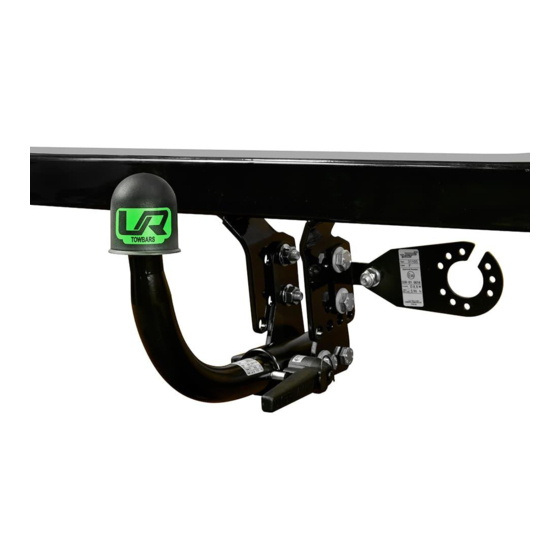

DISPOSITIVO DI TRAINO TIPO
TOWING BRACKET TYPE
DISPOTIF DE REMORQUAGE TYPE
ANHAENGEVORRICHTUNG TYP
DISPOSITIVO DE CAREO TIPO
PER AUTOVEICOLI
FOR CARS
POUR AUTOS
FUR KRAFTAHRZEUGE
PARA AUTOVEHICULO
TYPE
CLASSE E TIPO DI
ATTACCO
CLASS AND HITCH TYPE
CLASSE ET TYPE DE CROCHET
KLASSE UND BEFESTIGUNGSART
CLASES DE ACOPLAMIENTO
F
VALORE D
D VALUE
VALEUR D
D WERT
VALOR D
COPPIA DI SERRAGGIO PER VITI (8.8):
TORQUE SETTINGS FOR NUTS AND BOLTS (8.8):
COUPLE DE SERRAGE POUR VIS (8.8):
SCHRAUBENANZUGSMOMENT (8.8):
MOM. DE PRESION PARA TORNILLOS Y TUERCAS (8.8):
Cod. 01053/1C
- Alfa Romeo GT -
www.umbrarimorchi.it
umbrarimorchi@umbrarimorchi.it
ISTRUZIONI DI MONTAGGIO
INSTRUCTIONS DE MONTAGE
MONTAGEANLEITUNG
INSTRUCCIONES DE MONTAJE
OMOLOGAZIONE
HOMOLOGATION
HOMOLOGATION
ZULASSUNG
APROBACION
e3 00 – 7166
(DIR. 94/20/CE)
D = 8,8 kN
v. 1.0
01053/1C
ALFA ROMEO GT
937
01/01/2011
Tel. +39 075.5280260
Fax +39 075.5287033
Via Pizzoni 37/39
06132 Perugia
ITALY
2003
CARICO VERTICALE MAX
S VALUE
MASSE VERTICALE MAXIMUM
ZUL. STUETZLAST
CARGA MAX. VERTICAL
S = kg 95
M6 = 10 Nm
M10 = 55 Nm
M14 = 135 Nm
kN
8,8
M8 = 25 Nm
M12 = 85 Nm
M16 = 200 Nm
P. 1 / 6
Advertisement
Table of Contents
Related Manuals for UMBRA RIMORCHI 937
Summary of Contents for UMBRA RIMORCHI 937
- Page 1 Tel. +39 075.5280260 Fax +39 075.5287033 Via Pizzoni 37/39 06132 Perugia ITALY www.umbrarimorchi.it umbrarimorchi@umbrarimorchi.it ISTRUZIONI DI MONTAGGIO FITTING INSTRUCTIONS INSTRUCTIONS DE MONTAGE MONTAGEANLEITUNG INSTRUCCIONES DE MONTAJE DISPOSITIVO DI TRAINO TIPO TOWING BRACKET TYPE 01053/1C DISPOTIF DE REMORQUAGE TYPE ANHAENGEVORRICHTUNG TYP DISPOSITIVO DE CAREO TIPO PER AUTOVEICOLI FOR CARS...
- Page 2 After 1000 km of towing, check torque settings for nuts and bolts, in accordance with the table. Umbra Rimorchi cannot be held responsible for any defects in the product caused by fault or by any injudicious use whatever of the user or a person he is liable for.
- Page 3 FITTING INSTRUCTIONS 01053/1C ALFA ROMEO GT Remove any mastic from contact points then paint with anti-rust paint. The • necessary holes have to be drilled out. 1 Lift up the inner boot trim, remove the spare tire from its casing. •...
- Page 4 Cod. 01053/1C v. 1.0 01/01/2011 P. 4 / 6 - Alfa Romeo GT -...
- Page 5 Cod. 01053/1C v. 1.0 01/01/2011 P. 5 / 6 - Alfa Romeo GT -...
- Page 6 Cod. 01053/1C v. 1.0 01/01/2011 P. 6 / 6 - Alfa Romeo GT -...
