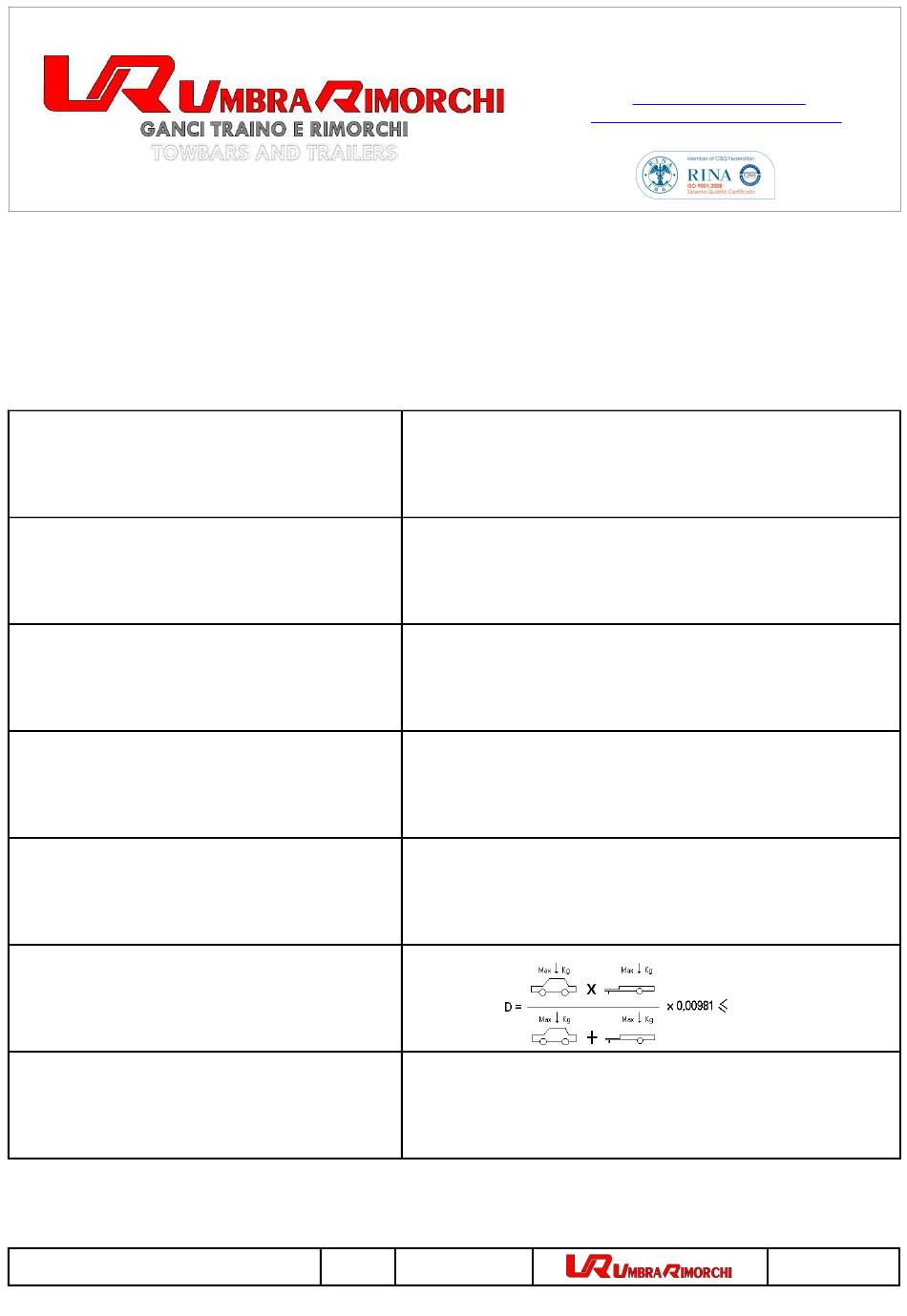

DISPOSITIVO DI TRAINO TIPO
TOWING DISPOSAL TYPE
TYPE DU DISPOSITIF DE REMORQUAGE
ANHÄNGERVORRICHTUNG TYP
DISPOSITIVO DE CAREO TIPO
ТЯГОВО-СЦЕПНОЕ УСТРОЙСТВО
PER AUTOVEICOLI
FOR CARS
POUR VÉHICULES AUTOMOBILES
FÜR KRAFTAHRZEUGE
PARA AUTOVEHICULO
ДЛЯ АВТОМОБИЛЕЙ
CLASSE E TIPO DI ATTACCO
CLASS AND HITCH TYPE
CLASSE ET TYPE DE CROCHET
KLASSE UND BEFESTIGUNGSART
CLASES DE ACOPLAMIENTO
КЛАСС И ТИП СОЕДИНЕНИЯ
OMOLOGAZIONE
HOMOLOGATION
HOMOLOGATION
ZULASSUNG
APROBACIÓN
ОМОЛОГАЦИЯ
CARICO VERTICALE MAX
S VALUE
MASSE VERTICALE MAXIMUM
ZUL. STUETZLAST
CARGA MAX. VERTICAL
МАКСИМАЛЬНАЯ ВЕРИКАЛЬНАЯ НАГРУЗКА
VALORE D
D VALUE
VALEUR D
D WERT
VALOR D
ЗНАЧЕНИЕ
COPPIA DI SERRAGGIO PER VITI (8.8):
TORQUE SETTINGS FOR NUTS AND BOLTS (8.8):
COUPLE DE SERRAGE POUR VIS (8.8):
SCHRAUBENANZUGSMOMENT (8.8):
MOM. DE PRESION PARA TORNILLOS Y TUERCAS (8.8):
СПИСОК ДЕТАЛЕЙ (8.8):
19020
- JEEP GRAND CHEROKEE -
ISTRUZIONI DI MONTAGGIO
FITTING INSTRUCTIONS
INSTRUCTIONS DE MONTAGE
MONTAGEANLEITUNG
INSTRUCCIONES DE MONTAJE
ИНСТРУКЦИЯ ПО УСТАНОВКЕ
v. 1.0
Via C. Pizzoni 37/39, 06132 Perugia - Italy
umbrarimorchi@umbrarimorchi.it
19020
JEEP GRAND CHEROKEE
2010 =>
e3 00 – 7608
(DIR. 94/20/CE)
S = kg 180
M6 = 10 Nm
M10 = 55 Nm
M14 = 135 Nm
01/01/11
UMBRA RIMORCHI
Tel. +39 075 5280260
Fax +39 075 5287033
www.umbrarimorchi.it
(WK)
A50 - X
16 kN
M8 = 25 Nm
M12 = 85 Nm
M16 = 200 Nm
P. 1 / 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for UMBRA RIMORCHI 19020
Summary of Contents for UMBRA RIMORCHI 19020
- Page 1 UMBRA RIMORCHI Via C. Pizzoni 37/39, 06132 Perugia - Italy Tel. +39 075 5280260 Fax +39 075 5287033 www.umbrarimorchi.it umbrarimorchi@umbrarimorchi.it ISTRUZIONI DI MONTAGGIO FITTING INSTRUCTIONS INSTRUCTIONS DE MONTAGE MONTAGEANLEITUNG INSTRUCCIONES DE MONTAJE ИНСТРУКЦИЯ ПО УСТАНОВКЕ DISPOSITIVO DI TRAINO TIPO TOWING DISPOSAL TYPE...
- Page 2 CAUTION The tow bar installer must fix at the same level with the ball in a clear position, a plate with the ball's maximum load for the vehicle on which the tow bar is fitted. 19020 v. 1.0 01/01/11 P. 2 / 6...
- Page 3 FITTING INSTRUCTIONS 19020 Remove below the vehicle any mastic from contact points between the chassis and the towbar; then paint mastic free pieces with rust inhibitor. Remove the lights and the rear bumper; Remove and eliminate the reinforcement bar and the shackle, placed on the left side;...
- Page 4 19020 v. 1.0 01/01/11 P. 4 / 6 - JEEP GRAND CHEROKEE -...
- Page 5 19020 v. 1.0 01/01/11 P. 5 / 6 - JEEP GRAND CHEROKEE -...
- Page 6 19020 v. 1.0 01/01/11 P. 6 / 6 - JEEP GRAND CHEROKEE -...
