DISPOSITIVO DI TRAINO
TIPO

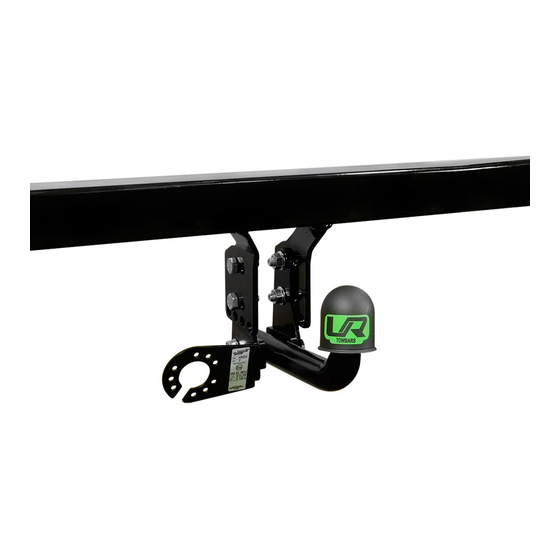

TOWING BRACKET TYPE
DISPOTIF DE REMORQUAGE TYPE
ANHAENGEVORRICHTUNG TYP
DISPOSITIVO DE CAREO TIPO
PER AUTOVEICOLI
FOR CARS
POUR AUTOS
FUR KRAFTAHRZEUGE
PARA AUTOVEHICULO
TYPE
CLASSE E TIPO DI ATTACCO
CLASS AND HITCH TYPE
CLASSE ET TYPE DE CROCHET
KLASSE UND BEFESTIGUNGSART
CLASES DE ACOPLAMIENTO
F
VALORE D
D VALUE
VALEUR D
D WERT
VALOR D
COPPIA DI SERRAGGIO PER VITI (8.8):
TORQUE SETTINGS FOR NUTS AND BOLTS (8.8):
COUPLE DE SERRAGE POUR VIS (8.8):
SCHRAUBENANZUGSMOMENT (8.8):
MOM. DE PRESION PARA TORNILLOS Y TUERCAS
(8.8):
13157
- FIAT DOBLÓ
OPEL COMBO -
www.umbrarimorchi.it
ISTRUZIONI DI MONTAGGIO
FITTING INSTRUCTIONS
INSTRUCTIONS DE MONTAGE
MONTAGEANLEITUNG
INSTRUCCIONES DE MONTAJE
263, COMBO-D
OMOLOGAZIONE
HOMOLOGATION
HOMOLOGATION
ZULASSUNG
APROBACION
e3 00 – 7575
(DIR. 94/20/CE)
v. 1.0
13157
FIAT DOBLÓ
OPEL COMBO
M6 = 10 Nm
M10 = 55 Nm
M14 = 135 Nm
01/01/2011
Tel. +39 075.5280260
Fax +39 075.5287033
Via Pizzoni 37/39
06132 Perugia
ITALY
=>
2010
CARICO VERTICALE MAX
S VALUE
MASSE VERTICALE MAXIMUM
ZUL. STUETZLAST
CARGA MAX. VERTICAL
S = kg 90
kN
9,7
M8 = 25 Nm
M12 = 85 Nm
M16 = 200 Nm
P. 1 / 7
Advertisement
Table of Contents
Related Manuals for UMBRA RIMORCHI 13157
Summary of Contents for UMBRA RIMORCHI 13157
- Page 1 ISTRUZIONI DI MONTAGGIO FITTING INSTRUCTIONS INSTRUCTIONS DE MONTAGE MONTAGEANLEITUNG INSTRUCCIONES DE MONTAJE DISPOSITIVO DI TRAINO TIPO TOWING BRACKET TYPE 13157 DISPOTIF DE REMORQUAGE TYPE ANHAENGEVORRICHTUNG TYP DISPOSITIVO DE CAREO TIPO PER AUTOVEICOLI FIAT DOBLÓ FOR CARS POUR AUTOS OPEL COMBO...
- Page 2 After 1000 km of towing, check torque settings for nuts and bolts, in accordance with the table. Umbra Rimorchi cannot be held responsible for any defects in the product caused by fault or by any injudicious use whatever of the user or a person he is liable for.
- Page 3 FITTING INSTRUCTIONS 13157 Remove below the vehicle any mastic from contact points between the chassis and the tow bar; then paint mastic free pieces with rust inhibitor. Remove the rear lights and the bumper; Remove and eliminate the central bracket for the bumper fixing and then eliminate the reinforcement bar;...
- Page 4 13157 - FIAT DOBLÓ v. 1.0 01/01/2011 P. 4 / 7 OPEL COMBO -...
- Page 5 13157 - FIAT DOBLÓ v. 1.0 01/01/2011 P. 5 / 7 OPEL COMBO -...
- Page 6 13157 - FIAT DOBLÓ v. 1.0 01/01/2011 P. 6 / 7 OPEL COMBO -...
- Page 7 13157 - FIAT DOBLÓ v. 1.0 01/01/2011 P. 7 / 7 OPEL COMBO -...
