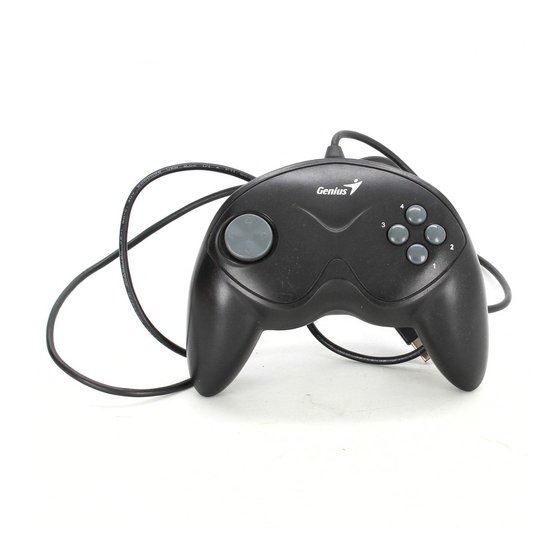

Service Guide
Product : Gamepad
Model Name :
Max Fire G08XU
Model Number : G08XU
Version Number : 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Max Fire G08XU and is the answer not in the manual?

Questions and answers

Related Manuals for Genius Max Fire G08XU

Summary of Contents for Genius Max Fire G08XU

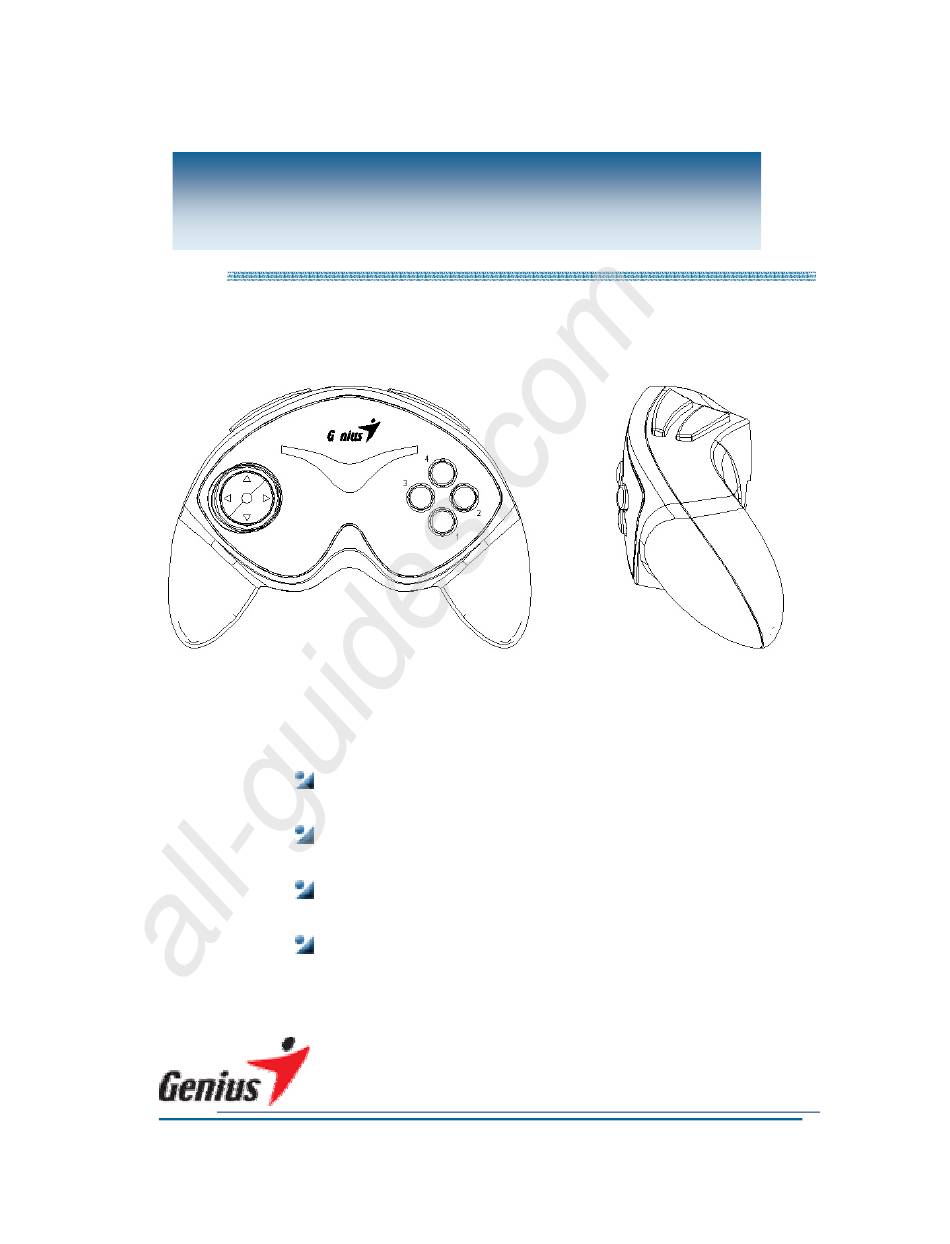

  • Page 1 All manuals and user guides at all-guides.com Service Guide Product : Gamepad Model Name : Max Fire G08XU Model Number : G08XU Version Number : 01...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com ervice Guide Contents 1. Revision record --------------------------------------------------3 2. Maintain Guide --------------------------------------------------4 2.1 Introduction --------------------------------------------------4 2.2 Necessary tools ----------------------------------------------4 2.3 Safety attention ----------------------------------------------4 3. How to handle defective returns -----------------------------5 3.1 Procedure -----------------------------------------------------5 3.2 Problem description -----------------------------------------6 3.3 Problem solve ------------------------------------------------7 4.

  • Page 3: Revision Record

    All manuals and user guides at all-guides.com ervice Guide 1. Revision Record Date Version Name Approve 2003/5/6 Niky ------------------------------------------------------ KYE SYSTEMS CORP.

  • Page 4: Maintain Guide

    All manuals and user guides at all-guides.com ervice Guide 2. Maintain Guide 2.1 Introduction Please pay attention to this guide, and follow the information to prevent resulting damage. This maintain-guide is against hardware problems of this pad. 2.2 Necessary tools Screwdriver Tweezers Solder...

  • Page 5: How To Handle Defective Returns

    All manuals and user guides at all-guides.com ervice Guide 3. How to handle defective returns 3.1 Procedure Received Defective Pad Test &Check problem Function NG Analyze possible malfunction causes Frame the solutions and methods Function NG Function OK Replace necessary defective parts Test all function to check the pad is ok.

  • Page 6: Problem Description

    All manuals and user guides at all-guides.com ervice Guide 3.2 Problem Description Item Problem Description 3.2.1 No any work 1) The pad’s inner cable isn’t connected. 2) The pad’s electronic circuit is ok but still no any work. 3.2.2 Some buttons 1) The cords linked to PCB are function wrong unconnected.

  • Page 7: Problem Solve

    All manuals and user guides at all-guides.com ervice Guide 3.3 Problem solve 3.3.1 No any work Problem No any work Analyze the Resonator Cable problem Judge the problem 1. Heavy dropped cause 1. Heavy dropped cause the causes the cable disconnected. resonator broken.
  • Page 8 All manuals and user guides at all-guides.com ervice Guide 3.3.2 Some buttons’ function wrong Problem Button’s function wrong Analyze the Cord Button problem Judge the problem 1. The cord is broken. 1. The button is causes loosened. Solution Re-solder the Re-set the button cord ------------------------------------------------------...

  • Page 9: Assemble & Disassemble

    All manuals and user guides at all-guides.com ervice Guide Assemble & Disassemble 4.1 How to Assemble and Disassemble the pad surface Procedure Graphics 1. Disassemble 1) Turn over the pad 2) Put the pad on a flat 3) Rotate screws 4) Separate pad’s covers Attention: When assembling the pad...

  • Page 10: How To Assemble And Disassemble The Pcb

    All manuals and user guides at all-guides.com ervice Guide 4.2 How to Assemble and Disassemble the PCB Procedure Graphics 1. Disassemble 1) Rotate the screws on the PCB Attention: When rotating PCB’s screws, please take care other parts connected PCB. 2.

  • Page 11: How To Replace The Resonator

    All manuals and user guides at all-guides.com ervice Guide 4.3 How to Replace the Resonator Procedure Graphics 1. Remove 1) Suck the point of weld of the Resonator by Tin-Sucker 2) Remove the defective Resonator by Tweezers 2. Replace 1) Insert the same spec, complete Resonator on the right hole 3.

  • Page 12: Appendix 1. Part List

    All manuals and user guides at all-guides.com ervice Guide 5. Appendix 1. Part List Item Part No. Name Quantity Station Spec. 14960040 Resonator 6MHz 22503603 Cord SW5/SW6/SW7/SW8 3PIN,60mm,2MM ------------------------------------------------------ KYE SYSTEMS CORP.

  • Page 13: Appendix 2. Disassemble Drawing

    All manuals and user guides at all-guides.com ervice Guide 6. Appendix 2. Disassemble Drawing 214G0821 241G0821 214G0811 24153012 241G0811 414G084D1 401G081D2 217G081B 427G081D1 412G081D1 414G082D1 414G083D1 401G082D2 ------------------------------------------------------ KYE SYSTEMS CORP.
