Service Guide
Product : Gamepad
Model Name :
Max Fire G12PS
Model Number : G12PS
Version Number : 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Max Fire G12PS and is the answer not in the manual?

Questions and answers

Related Manuals for Genius Max Fire G12PS

Summary of Contents for Genius Max Fire G12PS

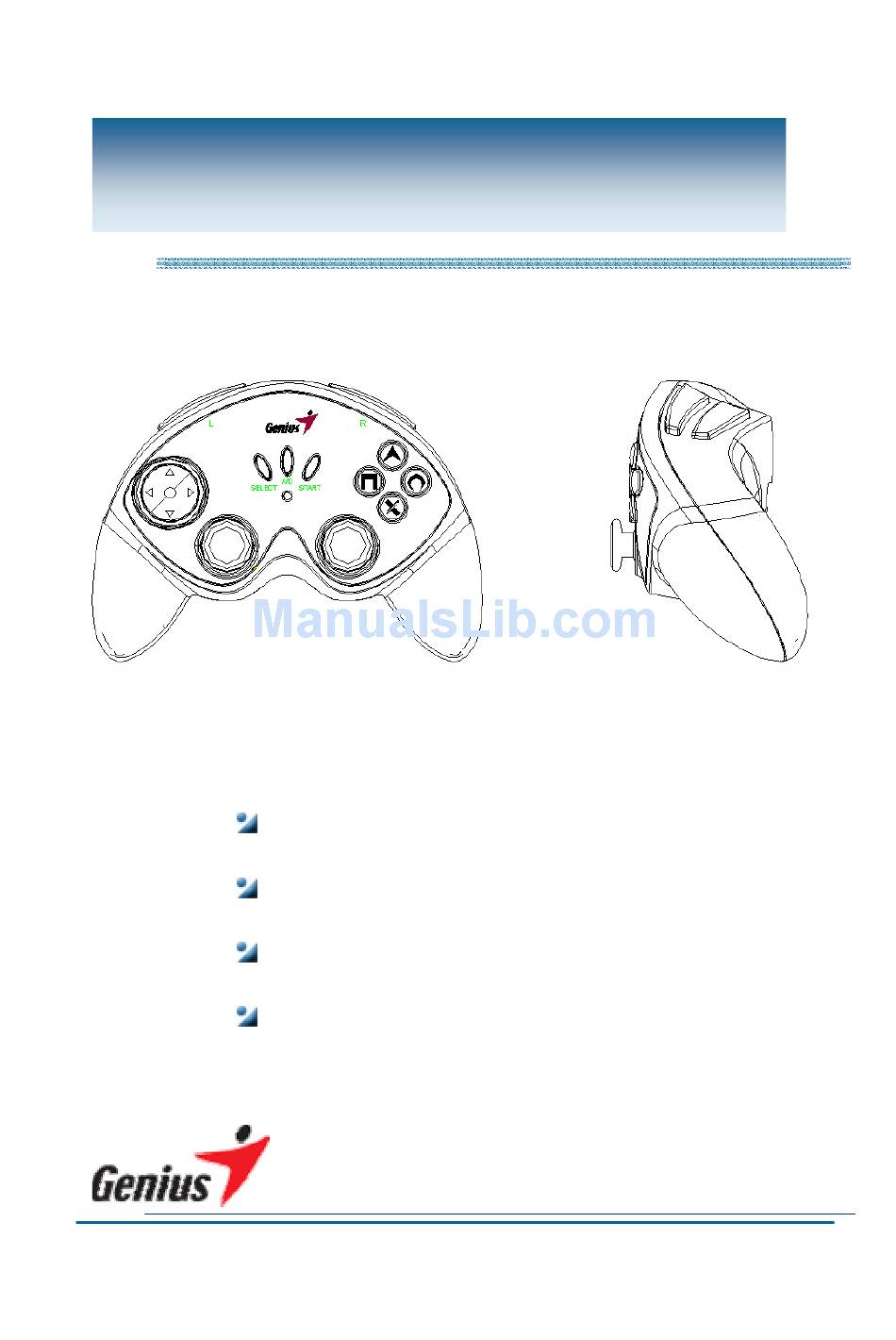

  • Page 1 Service Guide Product : Gamepad Model Name : Max Fire G12PS Model Number : G12PS Version Number : 01...

  • Page 2: Table Of Contents

    ervice Guide Contents 1. Revision record --------------------------------------------------3 2. Maintain Guide --------------------------------------------------4 2.1 Introduction --------------------------------------------------4 2.2 Necessary tools ----------------------------------------------4 2.3 Safety attention ----------------------------------------------4 3. How to handle defective returns -----------------------------5 3.1 Procedure -----------------------------------------------------5 3.2 Problem description -----------------------------------------6 3.3 Problem solve ------------------------------------------------7 4.

  • Page 3: Revision Record

    ervice Guide 1. Revision Record Date Version Name Approve 2003/5/15 Niky ----------------------------------------------------------------- KYE SYSTEMS CORP.

  • Page 4: Maintain Guide

    ervice Guide 2. Maintain Guide 2.1 Introduction Please pay attention to this guide, and follow the information to prevent resulting damage. This maintain-guide is against hardware problems of this pad. 2.2 Necessary tools Screwdriver Tweezers Solder Solder torch Tin-Sucker 2.3 Safety attention When staying for long time, please check electric and power circuit.

  • Page 5: How To Handle Defective Returns

    ervice Guide 3. How to handle defective returns 3.1 Procedure Received Defective Pad Test &Check problem Function NG Analyze possible malfunction causes Frame the solutions and methods Function NG Function OK Replace necessary defective parts Test all function to check the pad is ok. Function OK Return the pad to customers...

  • Page 6: Problem Description

    ervice Guide 3.2 Problem Description Item Problem Description 3.2.1 Ministick’s 1) Can’t control ministick correctly and function wrong completely. 2) Ministick is no work. 3.2.2 Motors are 1) One or both of two motors is no work. incorrect 2) Any Motors’ rotation is incorrect. 3.2.3 1) LED isn’t bright 2) LED is twinkling...

  • Page 7: Problem Solve

    ervice Guide 3.3 Problem solve 3.3.1 Ministick’s function wrong Problem Ministick wrong Analyze the Mechanics Electronics problem Judge the problem 1. Incorrect using causes 1. Using for too long causes the mechanics of time causes the value of ministick broken. VR instable.
  • Page 8 ervice Guide 3.3.2 Motors are incorrect Problem Any motor is no rotation Analyze the Electronics Motor’s Mechanics problem Judge the problem 1. Out of life 1. The cord between causes Motor and PCB is fall off. Solution Replace the Re-solder the Motor Cord -----------------------------------------------------------------...
  • Page 9 ervice Guide 3.3.3 LED Problem LED isn’t bright Analyze the Mechanics Electronics problem Judge the problem 1. Out of life 1. The cord between LED causes and PCB is fall off. Solution Replace the LED Re-solder the cord ----------------------------------------------------------------- KYE SYSTEMS CORP.

  • Page 10: Assemble & Disassemble

    ervice Guide Assemble & Disassemble 4.1 How to Assemble and Disassemble the pad surface Procedure Graphics 1. Disassemble 1) Turn over the pad 2) Put the pad on a flat 3) Rotate screws 4) Separate pad’s covers Attention: When assembling the pad surface, please put a cloth to prevent it from rub.

  • Page 11: How To Assemble And Disassemble The Psb

    ervice Guide 4.2 How to Assemble and Disassemble the PSB Procedure Graphics 1. Disassemble 1) Rotate the screws on the ministicks’ PSB Attention: When rotating PSB’s screws, please take care other parts connected to PSB. 2. Assemble 1) Lock the screws ----------------------------------------------------------------- KYE SYSTEMS CORP.
  • Page 12 ervice Guide 4.3 How to Replace the Ministick Procedure Graphics 1. Remove 1) Suck the point of weld of the Resonator by Tin-Sucker 2) Remove the defective Ministick by Tweezers 2. Replace 1) Insert the same spec, complete Ministick on the correct hole 3.

  • Page 13: How To Assemble And Disassemble The Motors

    ervice Guide 4.4 How to Replace the Motor Procedure Graphics 1. Remove 1) Suck the point of weld of the Motor’s cord by Tin-Sucker 2) Remove the defective Motor by Tweezers 2. Replace 1) Change a all right Motor 2) Solder the cord with the new Motor 3.

  • Page 14: How To Assemble And Disassemble The Led

    ervice Guide 4.5 How to Replace the LED Procedure Graphics 1. Remove 1) Suck the point of weld of the LED by Tin-Sucker 2) Remove the defective LED by Tweezers 2. Replace 1) Insert the same spec, complete LED on the right hole 3.

  • Page 15: Appendix 1. Part List

    ervice Guide 5. Appendix 1. Part List Item Part No. Name Quantity Station Spec. 1450311R Red LED 151G1211 Motor1 Big Motor 7.5V, Big motor 151G1221 Motor2 Small Motor 7.5V, Small motor 126G1211 Ministick JL.JR B10K, 45degree 22503603 Cord R1/R2/L1/L2 3PIN, 60mm, 2MM 22508403 Cord 8PIN...

  • Page 16: Appendix 2. Disassemble Drawing

    ervice Guide 6. Appendix 2. Disassemble Drawing 420G121 401G121D 412G081D 414G124D 414G123D 24153011 214G1221 241G1231 427G081D 241G1221 4093571D 241G1211 214G1231 414G082D 214G1211 151G1211 401G082D ----------------------------------------------------------------- KYE SYSTEMS CORP.
