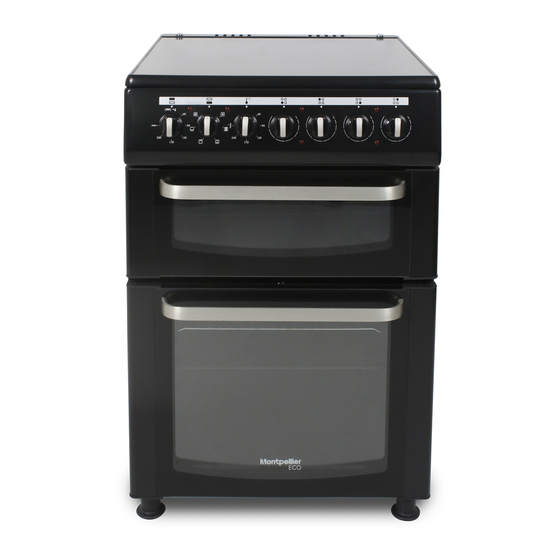

Freestanding Twin Cavity Cooker
TCC60
- 60cm Ceramic Cooker
White/Silver/Black
Please read these instructions carefully before attempting to install or use this
appliance. We recommend that you keep these instructions in a safe place for future
reference.
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier ECO TCC60
Summary of Contents for montpellier ECO TCC60
- Page 1 Installation and Operating Instructions Freestanding Twin Cavity Cooker TCC60 - 60cm Ceramic Cooker White/Silver/Black Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Freestanding Cooker. Our cookers have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your freestanding cooker to ensure you get the most from your purchase.
- Page 3 Dear Customer, Remains of any packaging (plastic bags, polystyrene) etc. must not be left within reach of children, as it is potentially dangerous. Please dispose of packaging properly and in the appropriate manner. This user manual is prepared for more than one model. Some of the images shown and features specified in the Manual may not be relevant to your appliance.
- Page 4 IMPORTANT WARNINGS • WARNING: This appliance must be earthed! • Please find information regarding power and ratings for your cooker on the rating label, which can be found on the back of the appliance. • Ensure that the cooker is not connected to the electricity supply during installation.
- Page 5 and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge. However, they must have been given instruction concerning the safe use of the appliance and understand the hazards involved. They must always be supervised when using the appliance. •...
- Page 6 • Power must be supplied by a suitable double pole isolating switch, having contact separation of at least 3 mm in all poles and located in a readily accessible position adjacent to the cooker. • The cooker may only be located in a kitchen, a kitchen/diner or bed- sitting room.
- Page 7 TECHNICAL FEATURES OF YOUR COOKER SPECIFICATIONS 50 x 60 60 x 60 500 mm 600 mm Outer width Outer depth 560 mm 660 mm 930 mm 930 mm Outer height Lamp power Max 25W Thermostat 50 - 250 °C Supply voltage 220-240V AC, or 230V AC, 50 - 60 Hz.
- Page 8 INSTALLATION OF YOUR COOKER ELECTRICAL CONNECTION • The adjustment values for this appliance are stated on the rating label. • Your appliance requires a 32-40 Ampere supply. Installation must be carried out by a qualified electrician. • Electrical connection of the cooker should only be made to connections/sockets with an earth system installed in compliance with statutory regulations.
- Page 9 CONNECTION...
- Page 10 WALL FIXING • Before using the appliance, in order to ensure safe use, be sure to fix the appliance to the wall using the chain and hooked screw supplied. Ensure that the hook is screwed into the wall securely. WARNING! In order to prevent tipping of the appliance, the wall fixing must be installed.
- Page 11 Any kitchen furniture adjacent to the appliance must be heat resistant to (100°C). When fitting an Extraction Cooker Hood above the Hob, the minimum height must be 650mm.
- Page 12 FUNCTION SYMBOLS Bottom heating element Top heating element Top & Bottom heating element Turbo fan Oven lamp Grill element 1. Hob top 10. Top shelf runner (main oven) 2. Control/ Fascia panel 11. Middle shelf runner 3. Grill compartment 12. Middle shelf runner 4.
- Page 13 USE AND DESCRIPTION OF THE CERAMIC HOB Controlling the Hob Cooking Zones 1. To operate the hob, use the control knobs on the fascia panel of the oven. This allows the power level to be selected in order to reach the required cooking temperature.
- Page 14 USING THE OVEN When your oven is operated the first time, an odour will emanate from the heating elements. In order to get rid of this, operate the oven at 250°C for 45-60 minutes with the oven empty. Oven control knobs must be set to the required level; otherwise the oven will not operate.
- Page 15 IF THE APPLIANCE DOES NOT OPERATE Problem Possible Causes Suggested Solutions Check the general fuse box to see if any breakers are off. Fuse malfunction or automatic fuse Check the general fuse box to see if blown the automatic fuse or the breakers are off.
- Page 16 IMPORTANT Do not try to repair the cooker yourself. • There are no parts inside the product that should be accessed or • repaired by the user. USING THE HEAT SHIELD The safety shield is designed to protect the fascia panel and the knobs when the oven is in Grill Mode.
- Page 17 MAINTENANCE AND CLEANING 1. Switch the power off. 2. While the oven is operating or shortly after it starts operating, it is extremely hot. You must not touch the heating elements. 3. Never clean the interior parts, panel, lid, trays or any other parts of the oven with the tools like a hard brush, cleaning mesh or knife.
- Page 18 PRODUCT FICHE 60 x 60cm Free Standing Double Cavity Type: Electrical Cooker Cavity: Main Oven Energy Source: Electrical Volume: 64 litre Energy Consumption - Convection Mode (EC): 0,77kWh Energy Efficiency Index (EEI): 94,9 Energy Class: Measurement method: EN 60350-1 / Regulation (EU)66/2014...
- Page 19 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 20 SERVICE HELP-LINE Should your appliance develop a fault, please call the Montpellier customer service helpline on: 01527 Please remember to have all your product details available, including the model number, serial 888133. number, date of purchase and your retailer’s details before registering a fault.
