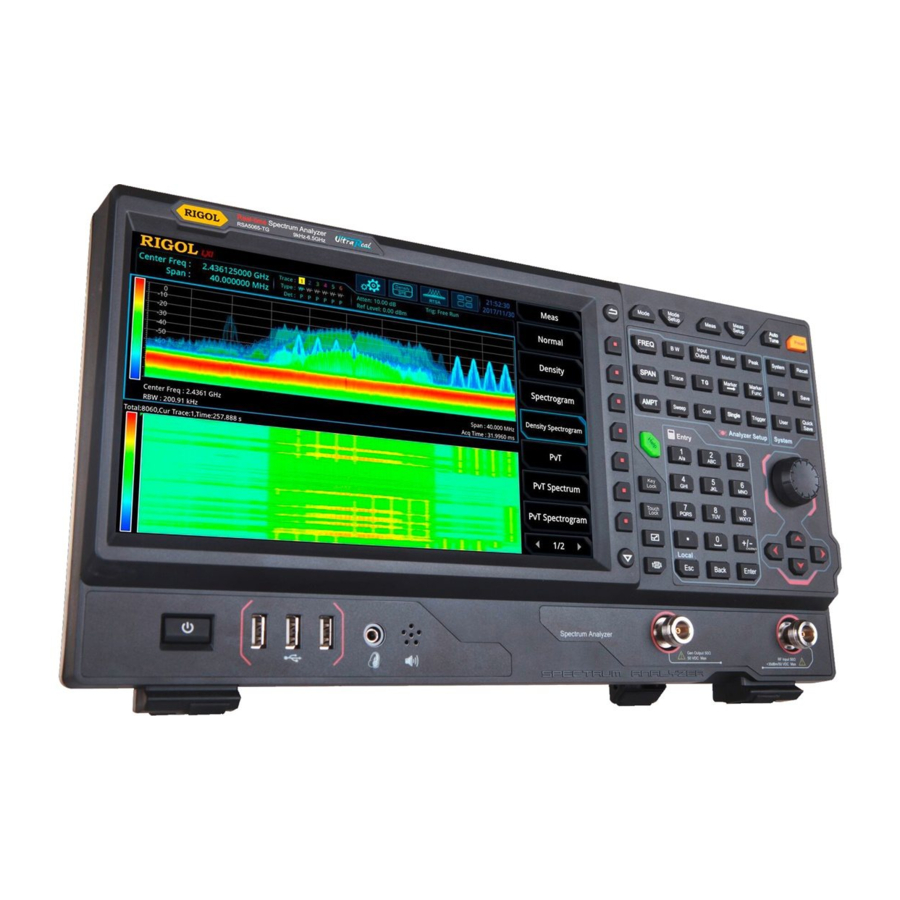

Rigol RSA Series Programming Manual

Emi measurement application
Hide thumbs Also See for RSA Series:

Advertisement

Quick Links

Download this manual
Distribution in the UK & Ireland
Lambda Photometrics Limited
Lambda House Batford Mill
Harpenden Herts AL5 5BZ
United Kingdom
E:
info@lambdaphoto.co.uk
W: www.lambdaphoto.co.uk
T:
+44 (0)1582 764334
F:
+44 (0)1582 712084
Programming Guide
EMI Measurement Application
Applicable to RSA5000-EMI/
RSA3000-EMI

Advertisement

loading

Related Manuals for Rigol RSA Series

Summary of Contents for Rigol RSA Series

  • Page 1 Programming Guide EMI Measurement Application Applicable to RSA5000-EMI/ RSA3000-EMI Distribution in the UK & Ireland Lambda Photometrics Limited Lambda House Batford Mill Harpenden Herts AL5 5BZ United Kingdom info@lambdaphoto.co.uk W: www.lambdaphoto.co.uk +44 (0)1582 764334 +44 (0)1582 712084...
  • Page 2 RIGOL Programming Guide EMI Measurement Application Applicable to RSA5000-EMI/RSA3000-EMI Jan. 2019 RIGOL (SUZHOU) TECHNOLOGIES, INC.
  • Page 4 Notices RIGOL products are covered by P.R.C. and foreign patents, issued and pending.  RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at  the company’s sole decision. Information in this publication replaces all previously released materials.
  • Page 5 Content Conventions in this Manual: The RSA series spectrum analyzer includes the following models. Unless otherwise specified, this manual takes RSA5065 as an example to illustrate the usage of each command of RSA series spectrum analyzer in EMI mode. Model...
  • Page 6 RIGOL Contents Contents Guaranty and Declaration ......................I Document Overview ......................... II Chapter 1 Programming Overview..................1-1 Build Remote Communication ....................1-2 Remote Control Method ......................1-3 SCPI Command Overview ......................1-4 Syntax ..........................1-4 Symbol Description ......................1-4 Parameter Type ........................1-5 Command Abbreviation ......................
  • Page 7 RIGOL Contents :CALCulate:LLINe<n>:COPY ..................... 2-19 :CALCulate:LLINe<n>:DATA....................2-20 :CALCulate:LLINe<n>:DELete ................... 2-20 :CALCulate:LLINe<n>:DISPlay ..................2-21 :CALCulate:LLINe<n>:FAIL? ..................... 2-21 :CALCulate:LLINe<n>:FREQuency:CMODe:RELative ............2-21 :CALCulate:LLINe<n>:MARGin ..................2-22 :CALCulate:LLINe<n>:MARGin:STATe ................2-23 :CALCulate:LLINe<n>:OFFSet:X ..................2-23 :CALCulate:LLINe<n>:OFFSet:Y ..................2-24 :CALCulate:LLINe<n>:TRACe .................... 2-24 :CALCulate:MARker:PEAK:SEARch:THReshold:LINe ............2-25 :CALCulate:MARKer<n>:LINes[:STATe]................2-25 :CALCulate:MARKer<n>:STATe ..................2-26 :CALCulate:MARKer<n>:X ....................
  • Page 8 RIGOL Contents *RST ..........................2-48 *SAV ..........................2-48 *SRE ..........................2-48 *STB? ..........................2-49 *TRG ..........................2-49 *TST? ..........................2-49 *WAI ..........................2-49 :INITiate Commands ....................... 2-50 :INITiate:FSCan:CLEar:IMMediate ..................2-50 :INITiate:PAUSe ....................... 2-50 :INITiate:RESume ......................2-50 :INITiate1:CONTinuous ....................2-50 :INITiate2:CONTinuous ....................2-51 :INITiate2:IMMediate .......................
  • Page 9 RIGOL Contents [:SENSe]:FREQuency:MIDSpan ..................2-73 [:SENSe]:FREQuency:SPAN ....................2-73 [:SENSe]:FREQuency:STARt ....................2-74 [:SENSe]:FREQuency:STARt:AUTO ..................2-74 [:SENSe]:FREQuency:STOP ....................2-75 [:SENSe]:FREQuency:STOP:AUTO ..................2-75 [:SENSe]:FSCan:DETector:TRACe<n> ................2-76 [:SENSe]:FSCan:FINal:DETector<n> ................. 2-76 [:SENSe]:FSCan:FINal:DETector<n>:DWELl ..............2-77 [:SENSe]:FSCan:FINal:DETector<n>:LDELta..............2-78 [:SENSe]:FSCan:MARKer:COUPle:METer ................2-78 [:SENSe]:FSCan:SCAN:ABORT ................... 2-79 [:SENSe]:FSCan:SCAN<n>:BANDwidth|BWIDth:EMIFilter:STATe ......... 2-79 [:SENSe]:FSCan:SCAN<n>:BANDwidth[:RESolution] ............
  • Page 10 RIGOL Contents :SYSTem:COMMunicate:LAN[:SELF]:MANuip:STATe ............2-102 :SYSTem:COMMunicate:LAN[:SELF]:MDNS:STATe ............2-103 :SYSTem:COMMunicate:LAN[:SELF]:RESet ............... 2-103 :SYSTem:CONFigure:INFormation? .................. 2-103 :SYSTem:DATE....................... 2-104 :SYSTem:FSWitch[:STATe] ....................2-104 :SYSTem:LANGuage ....................... 2-105 :SYSTem:LKEY ....................... 2-105 :SYSTem:OPTion:STATe? ....................2-106 :SYSTem:PON:TYPE ....................... 2-106 :SYSTem:PRESet ......................2-107 :SYSTem:PRESet:SAVE ....................2-107 :SYSTem:PRESet:TYPE ....................2-107 :SYSTem:PRESet:USER:SAVE ..................
  • Page 12 RIGOL Chapter 1 Programming Overview Chapter 1 Programming Overview This chapter introduces how to set up remote communication between the spectrum analyzer and the PC, the remote control methods, the syntax, symbols, parameters, and abbreviation rules of the SCPI commands.
  • Page 13 Chapter 1 Programming Overview Build Remote Communication The RSA series spectrum analyzer can be connected to the PC via the USB or LAN interface to set up communication and realize remote control through the PC. This Chapter introduces in details how to use Ultra Sigma to send commands through the USB interface to control the analyzer.
  • Page 14 RSA3000 Programming Guide Send SCPI commands via the PC software You can use the PC software to send commands to control RSA remotely. RIGOL Ultra Sigma is recommended. You can download the software from RIGOL official website (www.rigol.com). EMI Programming Guide...
  • Page 15 RIGOL Chapter 1 Programming Overview SCPI Command Overview SCPI (Standard Commands for Programmable Instruments) is a standardized instrument programming language that is built upon the existing standard IEEE 488.1 and IEEE 488.2 and conforms to various standards, such as the floating point operation rule in IEEE 754 standard, ISO 646 7-bit coded character set for information interchange (equivalent to ASCII programming).
  • Page 16 RIGOL Chapter 1 Programming Overview Angle Brackets < > When sending the command, the parameter enclosed in the angle-bracket must contain an effective value. For example, send the :SENSe:FREQuency:CENTer 1000 command in [:SENSe]:FREQuency:CENTer <freq> format. Parameter Type The command parameters introduced in this manual include 6 types: Bool, Keyword, Integer, Consecutive Real Number, Discrete, and ASCII String.
  • Page 18 RIGOL Chapter 2 Command System Chapter 2 Command System This chapter introduces the commands of the RSA series spectrum analyzer in EMI mode. Contents in this chapter: :CALCulate Commands  :CALibration Commands  :COUPle Command  :CONFigure Command  :DISPlay Commands ...
  • Page 19 RIGOL Chapter 2 Command System :CALCulate Commands Command List: :CALCulate:EMI:SLISt:DELete  :CALCulate:FSCan:MAMarker[:SET]:SLISt  :CALCulate:FSCan:MARKer:AOFF  :CALCulate:FSCan:MARKer:COUPle[:STATe]  :CALCulate:FSCan:MARKer:PEAK:EXCursion  :CALCulate:FSCan:MARKer:PEAK:EXCursion:STATe  :CALCulate:FSCan:MARKer:PEAK:SEARch:MODE  :CALCulate:FSCan:MARKer:PEAK:SEARch:THReshold  :CALCulate:FSCan:MARKer:PEAK:SEARch:THReshold:STATe  :CALCulate:FSCan:MARker<n>:FUNCtion:MAMarker?  :CALCulate:FSCan:MARKer<n>:MAXimum  :CALCulate:FSCan:MARKer<n>:MAXimum:LEFT  :CALCulate:FSCan:MARKer<n>:MAXimum:NEXT  :CALCulate:FSCan:MARKer<n>:MAXimum:RIGHt  :CALCulate:FSCan:MARKer<n>:MINimum  :CALCulate:FSCan:MARKer<n>:MODE ...
  • Page 20 RIGOL Chapter 2 Command System :CALCulate:LLINe:ALL:DELete  :CALCulate:LLINe:TEST  :CALCulate:LLINe<n>:AMPLitude:CMODe:RELative  :CALCulate:LLINe<n>:BUILd  :CALCulate:LLINe<n>:CONTrol:INTerpolate:TYPE  :CALCulate:LLINe<n>:COPY  :CALCulate:LLINe<n>:DATA  :CALCulate:LLINe<n>:DELete  :CALCulate:LLINe<n>:DISPlay  :CALCulate:LLINe<n>:FAIL?  :CALCulate:LLINe<n>:FREQuency:CMODe:RELative  :CALCulate:LLINe<n>:MARGin  :CALCulate:LLINe<n>:MARGin:STATe  :CALCulate:LLINe<n>:OFFSet:X  :CALCulate:LLINe<n>:OFFSet:Y  :CALCulate:LLINe<n>:TRACe  :CALCulate:MARker:PEAK:SEARch:THReshold:LINe  :CALCulate:MARKer<n>:LINes[:STATe] ...
  • Page 21 RIGOL Chapter 2 Command System :CALCulate:EMI:SLISt:DELete Syntax :CALCulate:EMI:SLISt:DELete ALL|CURRent|MARKed|UNMarked Description Sets the signal type to be deleted. Parameter Name Type Range Default Discrete ALL|CURRent|MARKed|UNMarked CURRent Remarks ALL: deletes all the signals in the signal table. CURRent: deletes the currently selected signal from the signal table.
  • Page 22 RIGOL Chapter 2 Command System Remarks When you enable the couple marker function, moving any marker will enable other markers (except the Off marker) to move with it. Return Format The query returns 0 or 1. Example The following command disables the couple marker function.
  • Page 23 RIGOL Chapter 2 Command System Example The following command enables the peak excursion function. :CALCulate:FSCan:MARKer:PEAK:EXCursion:STATe ON or :CALCulate:FSCan:MARKer:PEAK:EXCursion:STATe 1 The following query returns 1. :CALCulate:FSCan:MARKer:PEAK:EXCursion:STATe? :CALCulate:FSCan:MARKer:PEAK:SEARch:MODE Syntax :CALCulate:FSCan:MARKer:PEAK:SEARch:MODE PARameter|MAXimum :CALCulate:FSCan:MARKer:PEAK:SEARch:MODE? Description Sets the peak search mode. Queries the peak search mode.
  • Page 24 RIGOL Chapter 2 Command System Return Format The query returns the peak threshold in scientific notation. Example The following command sets the peak threshold to -100 dBm. :CALCulate:FSCan:MARKer:PEAK:SEARch:THReshold -100 The following query returns -1.000000e+02. :CALCulate:FSCan:MARKer:PEAK:SEARch:THReshold? :CALCulate:FSCan:MARKer:PEAK:SEARch:THReshold:STATe Syntax :CALCulate:FSCan:MARKer:PEAK:SEARch:THReshold:STATe OFF|ON|0|1 :CALCulate:FSCan:MARKer:PEAK:SEARch:THReshold:STATe? Description Enables or disables the peak threshold function.
  • Page 25 RIGOL Chapter 2 Command System Example The following command returns the result measured at Marker 1 -1.700000000e+02,-1.700000000e+02,-1.700000000e+02,5.150000000e+08. :CALCulate:FSCan:MARker1:FUNCtion:MAMarker? :CALCulate:FSCan:MARKer<n>:MAXimum Syntax :CALCulate:FSCan:MARKer<n>:MAXimum Description Performs one peak search based on the search mode set by :CALCulate:FSCan:MARKer:PEAK:SEARch:MODE command and marks it with the specified marker.
  • Page 26 RIGOL Chapter 2 Command System Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6|7|8 Remarks When no peak is found, a prompt message "No peak found" is displayed on the screen. Example The following command performs one next peak search, and marks with Marker 2.
  • Page 27 RIGOL Chapter 2 Command System :CALCulate:FSCan:MARKer<n>:MODE Syntax :CALCulate:FSCan:MARKer<n>:MODE POSition|DELTa|OFF :CALCulate:FSCan:MARKer<n>:MODE? Description Sets the type of the specified marker. Queries the type of the specified marker. Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6|7|8 Keyword POSition|DELTa|OFF POSition Remarks POSition: indicates the normal marker.
  • Page 28 RIGOL Chapter 2 Command System The following query returns 2. :CALCulate:FSCan:MARKer1:REFerence? :CALCulate:FSCan:MARKer<n>[:SET]:SLISt Syntax :CALCulate:FSCan:MARKer<n>[:SET]:SLISt Description Adds the frequency at the specified marker to the signal table. Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6|7|8 Example The following command adds the frequency at the Marker 1 (Position) to the signal table.
  • Page 29 RIGOL Chapter 2 Command System :CALCulate:FSCan:MARKer<n>:TRACe Syntax :CALCulate:FSCan:MARKer<n>:TRACe <integer> :CALCulate:FSCan:MARKer<n>:TRACe? Description Sets the marker trace for the specified marker. Queries the marker trace for the specified marker. Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6|7|8 <integer> Discrete 1|2|3 Remarks <integer> indicates the marker trace, and its range is from Trace 1 to Trace 3.
  • Page 30 RIGOL Chapter 2 Command System :CALCulate:FSCan:SLISt:MARK:ALL Syntax :CALCulate:FSCan:SLISt:MARK:ALL Description Marks all the signals in the signal table. :CALCulate:FSCan:SLISt:MARK:CLEar:ALL Syntax :CALCulate:FSCan:SLISt:MARK:CLEar:ALL Description Clears all the marks in the signal table. :CALCulate:FSCan:SLISt:MARK:CLEar:SIGNal Syntax :CALCulate:FSCan:SLISt:MARK:CLEar:SIGNal <integer> Description Clears the mark of the specified signal.
  • Page 31 RIGOL Chapter 2 Command System :CALCulate:FSCan:SLISt:REPLace:METer Syntax :CALCulate:FSCan:SLISt:REPLace:METer <integer> Description Replaces the frequency of the currently selected signal with the currently set frequency of the meter, and marks this signal. Parameter Name Type Range Default <integer> Integer 1 to 2,000...
  • Page 32 RIGOL Chapter 2 Command System The following query returns 0. :CALCulate:FSCan:SLISt:SORT:AUTO? :CALCulate:FSCan:SLISt:SORT:DAMPlitude Syntax :CALCulate:FSCan:SLISt:SORT:DAMPlitude DET1|DET2|DET3 :CALCulate:FSCan:SLISt:SORT:DAMPlitude? Description Sets the detector amplitude sorting mode for the signal. Queries the detector amplitude sorting mode for the signal. Parameter Name Type Range Default...
  • Page 33 RIGOL Chapter 2 Command System :CALCulate:FSCan:SLISt:SORT:ORDer Syntax :CALCulate:FSCan:SLISt:SORT:ORDer ASCending|DESCending :CALCulate:FSCan:SLISt:SORT:ORDer? Description Sets the sort order of the signal. Queries the sort order of the signal. Parameter Name Type Range Default Discrete ASCending|DESCending ASCending Return Format The query returns ASC or DESC.
  • Page 34 RIGOL Chapter 2 Command System :CALCulate:FSCan:SLISt:ZOOM Syntax :CALCulate:FSCan:SLISt:ZOOM <integer> Description Takes the midspan frequency as the reference and zooms the coordinate display at the selected signal of the signal table to 10% of the current span. Parameter Name Type Range Default <integer>...
  • Page 35 RIGOL Chapter 2 Command System Example The following command disables the limit line test function. :CALCulate:LLINe:TEST OFF or :CALCulate:LLINe:TEST 0 The following query returns 0. :CALCulate:LLINe:TEST? :CALCulate:LLINe<n>:AMPLitude:CMODe:RELative Syntax :CALCulate:LLINe<n>:AMPLitude:CMODe:RELative OFF|ON|0|1 :CALCulate:LLINe<n>:AMPLitude:CMODe:RELative? Description Enables or disables the coupling functions between the selected limit line data points and the reference level.
  • Page 36 RIGOL Chapter 2 Command System Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6 Keyword TRACE1|TRACE2|TRACE3 Example The following command builds Limit Line 2 from Trace2. :CALCulate:LLINe2:BUILd TRACE2 :CALCulate:LLINe<n>:CONTrol:INTerpolate:TYPE Syntax :CALCulate:LLINe<n>:CONTrol:INTerpolate:TYPE LOGarithmic|LINear :CALCulate:LLINe<n>:CONTrol:INTerpolate:TYPE? Description Sets the frequency interpolation mode of the selected limit line.
  • Page 37 RIGOL Chapter 2 Command System :CALCulate:LLINe<n>:DATA Syntax :CALCulate:LLINe<n>:DATA <x>,<ampl>,<connect>{,<x>,<ampl>,<connect>} :CALCulate:LLINe<n>:DATA? Description Edits one limit line, and marks it with n. Queries the limit line data that you are editing currently. Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6 <x> Consecutive Real Number 0 Hz to 6.5 GHz...
  • Page 38 RIGOL Chapter 2 Command System :CALCulate:LLINe<n>:DISPlay Syntax :CALCulate:LLINe<n>:DISPlay OFF|ON|0|1 :CALCulate:LLINe<n>:DISPlay? Description Turns on or off the selected limit line. Queries the setting state of the selected limit line. Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6 Bool OFF|ON|0|1 OFF|0 Return Format The query returns 0 or 1.
  • Page 39 RIGOL Chapter 2 Command System frequency. Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6 Bool OFF|ON|0|1 OFF|0 Remarks OFF|0: disables the coupling function. That is, "Fixed" is selected under X to CF, and the frequency of the current limit line editing point is not be affected by the midspan frequency.
  • Page 40 RIGOL Chapter 2 Command System :CALCulate:LLINe<n>:MARGin:STATe Syntax :CALCulate:LLINe<n>:MARGin:STATe OFF|ON|0|1 :CALCulate:LLINe<n>:MARGin:STATe? Description Enables or disables the margin for the selected limit line. Queries the setting state of the margin for the selected limit line. Parameter Name Type Range Default <n> Discrete...
  • Page 41 RIGOL Chapter 2 Command System :CALCulate:LLINe<n>:OFFSet:Y Syntax :CALCulate:LLINe<n>:OFFSet:Y <re_ampl> :CALCulate:LLINe<n>:OFFSet:Y? Description Sets the amplitude offset of the specified limit line. Queries the amplitude offset of the specified limit line. Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6 -50 dB 至 50 dB <re_ampl>...
  • Page 42 RIGOL Chapter 2 Command System :CALCulate:MARker:PEAK:SEARch:THReshold:LINe Syntax :CALCulate:MARker:PEAK:SEARch:THReshold:LINe OFF|ON|0|1 :CALCulate:MARker:PEAK:SEARch:THReshold:LINe? Description Enables or disables the peak threshold line. Queries the status of the peak threshold line. Parameter Name Type Range Default Bool OFF|ON|0|1 OFF|0 Return Format The query returns 0 or 1.
  • Page 43 RIGOL Chapter 2 Command System :CALCulate:MARKer<n>:STATe Syntax :CALCulate:MARKer<n>:STATe OFF|ON|0|1 :CALCulate:MARKer<n>:STATe? Description Enables or disables the specified marker. Queries the status of the specified marker. Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6|7|8 Bool OFF|ON|0|1 OFF|0 Remarks If the specified marker is disabled currently, by default, the marker mode is "Position" when you send the command to enable the marke.
  • Page 44 RIGOL Chapter 2 Command System :CALCulate:MARKer<n>:Y? Syntax :CALCulate:MARKer<n>:Y? Description Queries the amplitude of the specified marker. Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6|7|8 :CALCulate:METer:LIMit:ALL:FAIL? Syntax :CALCulate:METer:LIMit:ALL:FAIL? Description Queries the measurement results of all the limit lines and their associated meters.
  • Page 45 RIGOL Chapter 2 Command System :CALCulate:METer:POWer:PEAK? Syntax :CALCulate:METer:POWer:PEAK? Description Queries the peak power of the meter. Remarks The query returns the minimum data value if the meter is disabled. Return Format The query returns the peak power values of three meters in scientific notation. The values are separated by commas.
  • Page 46 RIGOL Chapter 2 Command System Remarks This command will execute the test no matter whether the meter or the limit line is enabled. Return Format The query returns 0 (indicating that the selected meter is within the limit, and the test is successful) or 1 (indicating that the selected meter exceeds the limit line, and the test is failed).
  • Page 47 RIGOL Chapter 2 Command System :CALibration Commands Command List: :CALibration:[ALL]  :CALibration:AUTO  :CALibration:[ALL] Syntax :CALibration:[ALL] Description Executes self-calibration immediately. Remarks If the self-calibration succeeded, the command :CALibration:[ALL]? returns 0; if failed, the command :CALibration:[ALL]? returns 1. Example The following command executes the self-calibration immediately.
  • Page 48 RIGOL Chapter 2 Command System :COUPle Command Command List: :COUPle  :COUPle Syntax :COUPle ALL Description Sets all the manual/auto settings in the current measurement mode to be "Auto". EMI Programming Guide 2-31...
  • Page 49 RIGOL Chapter 2 Command System :CONFigure Command Command List: :CONFigure?  :CONFigure:FSCan  :CONFigure? Syntax :CONFigure? Description Queries the current measurement function. Return Format The query returns FSCan. :CONFigure:FSCan Syntax :CONFigure:FSCan Description Set the spectrum analyzer to the frequency scanning measurement state.
  • Page 50 RIGOL Chapter 2 Command System :DISPlay Commands Command List: :DISPlay:BACKlight  :DISPlay:ENABle  :DISPlay:FSCan:VIEW:METer:FLINe  :DISPlay:FSCan:VIEW:METer[:STATe]  :DISPlay:FSCan:VIEW:WINDow:TRACe:Y[:SCALe]:PDIVision  :DISPlay:FSCan:VIEW:WINDow:TRACe:Y[:SCALe]:RLEVel  :DISPlay:FSCan:VIEW:WINDow:TRACe:Y[:SCALe]:RLEVel:OFFSet  :DISPlay:FSCan:WINDow:MAMarker[:STATe]  :DISPlay:GRATicule[:STATe]  :DISPlay:HDMI[:STATe]  :DISPlay:METer<n>[:STATe]  :DISPlay:VIEW:WINDow:TRACe:X:SPACing  :DISPlay:WINDow:TRACe:Y:DLINe  :DISPlay:WINDow:TRACe:Y:DLINe:STATe  :DISPlay[:WINDow]:TRACe<n>:MODE  EMI Programming Guide...
  • Page 51 RIGOL Chapter 2 Command System :DISPlay:BACKlight Syntax :DISPlay:BACKlight <integer> :DISPlay:BACKlight? Description Sets the brightness of the backlight of LCD. Queries the brightness of the backlight of LCD. Parameter Name Type Range Default <integer> Integer 1 to 100 Return Format The query returns the brightness of the LCD backlight in integer.
  • Page 52 RIGOL Chapter 2 Command System :DISPlay:FSCan:VIEW:METer:FLINe Syntax :DISPlay:FSCan:VIEW:METer:FLINe OFF|ON|0|1 :DISPlay:FSCan:VIEW:METer:FLINe? Description Enables or disables the display of the meter frequency line. Queries the display status of the meter frequency line. Parameter Name Type Range Default Bool OFF|ON|0|1 ON|1 Return Format The query returns 0 or 1.
  • Page 53 RIGOL Chapter 2 Command System :DISPlay:FSCan:VIEW:WINDow:TRACe:Y[:SCALe]:PDIVision Syntax :DISPlay:FSCan:VIEW:WINDow:TRACe:Y[:SCALe]:PDIVision <rel_ampl> :DISPlay:FSCan:VIEW:WINDow:TRACe:Y[:SCALe]:PDIVision? Description Sets the Y-axis scale type. Queries the Y-axis scale type. Parameter Name Type Range Default <rel_ampl> Consecutive Real Number 0.1 dB to 20 dB 10 dB Return Format The query returns the Y-axis scale value in scientific notation.
  • Page 54 RIGOL Chapter 2 Command System :DISPlay:FSCan:VIEW:WINDow:TRACe:Y[:SCALe]:RLEVel:OFFSet Syntax :DISPlay:FSCan:VIEW:WINDow:TRACe:Y[:SCALe]:RLEVel:OFFSet <rel_ampl> :DISPlay:FSCan:VIEW:WINDow:TRACe:Y[:SCALe]:RLEVel:OFFSet? Description Sets the reference level offset. Queries the reference level offset. Parameter Name Type Range Default <rel_ampl> Consecutive Real Number -300 dB to 300 dB 0 dB Remarks The offset of the reference level only modifies the reference level and amplitude readout of the marker, but does not change the position of the curve.
  • Page 55 RIGOL Chapter 2 Command System :DISPlay:GRATicule[:STATe] Syntax :DISPlay:GRATicule[:STATe] OFF|ON|0|1 :DISPlay:GRATicule[:STATe]? Description Enables or disables the display of the graticule. Queries the display of the graticule. Parameter Name Type Range Default Bool OFF|ON|0|1 ON|1 Return Format The query returns 0 or 1.
  • Page 56 RIGOL Chapter 2 Command System :DISPlay:METer<n>[:STATe] Syntax :DISPlay:METer<n>[:STATe] OFF|ON|0|1 :DISPlay:METer<n>[:STATe]? Description Enables or disables the specified meter. Queries the status of the specified meter. Parameter Name Type Range Default Refer to "Remarks" Bool OFF|ON|0|1 Remarks The meter1 is enabled by default, while the meter2 and meter3 are disabled by default.
  • Page 57 RIGOL Chapter 2 Command System :DISPlay:WINDow:TRACe:Y:DLINe Syntax :DISPlay:WINDow:TRACe:Y:DLINe <ampl> :DISPlay:WINDow:TRACe:Y:DLINe? Description Sets the position of the display line. Queries the position of the display line. Parameter Name Type Range Default <ampl> Consecutive Real Number Current amplitude range 81.99 dBuV Remarks By default, the display line is disabled.
  • Page 58 RIGOL Chapter 2 Command System :DISPlay[:WINDow]:TRACe<n>:MODE Syntax :DISPlay[:WINDow]:TRACe<n>:MODE WRITe|AVERage|MAXHold|MINHold :DISPlay[:WINDow]:TRACe<n>:MODE? Description Sets the type of the specified trace. Queries the type of the specified trace. Parameter Name Type Range Default <n> Discrete 1|2|3 Keyword WRITe|AVERage|MAXHold|MINHold WRITe Remarks WRITe: indicates clear/write.
  • Page 59 RIGOL Chapter 2 Command System :FETCh Command Command List: :FETCh:FSCan?  :FETCh:FSCan? Syntax :FETCh:FSCan? Description Queries the frequency scan measurement results (returns the signal table information). 2-42 EMI Programming Guide...
  • Page 60 RIGOL Chapter 2 Command System :FORMat Commands Command List: :FORMat:BORDer  :FORMat[:TRACe][:DATA]  :FORMat:BORDer Syntax :FORMat:BORDer NORMal|SWAPped :FORMat:BORDer? Description Selects the binary data byte order for data transmission. Queries the binary data byte order for data transmission. Parameter Name Type...
  • Page 61 RIGOL Chapter 2 Command System :FORMat[:TRACe][:DATA] Syntax :FORMat[:TRACe][:DATA] ASCii|INTeger,32|REAL,32|REAL,64 :FORMat[:TRACe][:DATA]? Description Sets the input/output format of the trace data. Queries the input/output format of the trace data. Parameter Name Type Range Default Keyword ASCii|INTeger,32|REAL,32|REAL,64 ASCii Remarks ASCii: ASCII characters, separated by commas.
  • Page 62 RIGOL Chapter 2 Command System IEEE 488.2 Common Commands IEEE 488.2 common commands are used to operate or query the status registers. For the structure of the status register, refer to ":STATus Commands". Command List: *CLS  *ESE  *ESR? ...
  • Page 63 RIGOL Chapter 2 Command System *CLS Syntax *CLS Description Clears all the event registers and status byte registers. *ESE Syntax *ESE <value> *ESE? Description Sets the enable register for the standard event status register. Queries the enable register for the standard event status register.
  • Page 64 The query returns the ID string in the following format: Rigol Technologies,<model>,<serial number>,XX.XX.XX <model>: instrument model <serial number>: serial number of the instrument XX.XX.XX: software version of the instrument Example The following query returns Rigol Technologies,RSA5065,RSA5A010200001,00.02.00. *IDN? *OPC Syntax *OPC *OPC?
  • Page 65 RIGOL Chapter 2 Command System Example The following command recalls Register 1. *RCL 1 *RST Syntax *RST Description Restores the instrument to its factory default settings. *SAV Syntax *SAV <integer> Description Saves the current instrument state to the selected register.
  • Page 66 RIGOL Chapter 2 Command System *SRE 16 The following query returns 16. *SRE? *STB? Syntax *STB? Description Queries the event register for the status byte register. Remarks Bit 0 and bit 1 in the status byte register are not in use, and are regarded as 0. The query returns a decimal value that corresponds to the binary values ranging from 00000000 (0 in decimal) to 11111111 (255 in decimal) and of which bit 0 and bit 1 are 0.
  • Page 67 RIGOL Chapter 2 Command System :INITiate Commands Command List: :INITiate:FSCan:CLEar:IMMediate  :INITiate:PAUSe  :INITiate:RESume  :INITiate1:CONTinuous  :INITiate2:CONTinuous  :INITiate2:IMMediate]  :INITiate2:RESTart  :INITiate:FSCan:CLEar:IMMediate Syntax :INITiate:FSCan:CLEar:IMMediate Description Deletes all the signals in the signal table and launches the selected scan sequence.
  • Page 68 RIGOL Chapter 2 Command System Return Format The query returns 0 or 1. Example The following command sets the measurement mode of the meter to CONTinuous. :INITiate1:CONTinuous ON or :INITiate1:CONTinuous 1 The following query returns 1. :INITiate1:CONTinuous? :INITiate2:CONTinuous Syntax :INITiate2:CONTinuous OFF|ON|0|1...
  • Page 69 RIGOL Chapter 2 Command System :INSTrument Commands Command List: :INSTrument:COUPle:FREQuency:CENTer  :INSTrument:DEFault  :INSTrument:NSELect  :INSTrument[:SELect]  :INSTrument:COUPle:FREQuency:CENTer Syntax :INSTrument:COUPle:FREQuency:CENTer ALL|NONE :INSTrument:COUPle:FREQuency:CENTer? Description Turns on or off the global center frequency of the instrument. Queries the setting status of the global center frequency of the instrument.
  • Page 70 RIGOL Chapter 2 Command System :INSTrument:NSELect :INSTrument[:SELect] Syntax :INSTrument:NSELect 1|2|3|4 :INSTrument:NSELect? :INSTrument[:SELect] SA|RTSA|VSA|EMI :INSTrument[:SELect]? Description Selects the working mode of the instrument. Queries the working mode of the instrument. Parameter Name Type Range Default Discrete 1|2|3|4 Keyword SA|RTSA|VSA|EMI Remarks The above parameters 1|2|3|4 correspond to SA|RTSA|VSA|EMI, respectively.
  • Page 71 RIGOL Chapter 2 Command System :MMEMory Commands Command List: :MMEMory:DELete  :MMEMory:LOAD:CORRection  :MMEMory:LOAD:LIMit  :MMEMory:LOAD:SCAN  :MMEMory:LOAD:SLISt  :MMEMory:LOAD:STATe  :MMEMory:LOAD:TRACe  :MMEMory:LOAD:TRACe:DATA  :MMEMory:MOVE  :MMEMory:STORe:CORRection  :MMEMory:STORe:LIMit  :MMEMory:STORe:SCAN  :MMEMory:STORe:SCReen  :MMEMory:STORe:SLISt  :MMEMory:STORe:STATe  :MMEMory:STORe:TRACe ...
  • Page 72 RIGOL Chapter 2 Command System :MMEMory:DELete Syntax :MMEMory:DELete <file_name> Description Deletes a specified file. Parameter Name Type Range Default <file_name> ASCII String Remarks <file_name> should contain the path and the filename. This operation fails if the file with the specified filename does not exist.
  • Page 73 RIGOL Chapter 2 Command System Remarks This operation fails if the file with the specified filename does not exist. Example The following command loads the limit line file (upp1.csv) to Limit Line 1. :MMEMory:LOAD:LIMit LLINE1,upp1.csv :MMEMory:LOAD:SCAN Syntax :MMEMory:LOAD:SCAN <file_name> Description Loads the specified scan table file (.csv).
  • Page 74 RIGOL Chapter 2 Command System Parameter Name Type Range Default <file_name> ASCII String Remarks This operation fails if the file with the specified filename does not exist. Example The following command loads the state file (state1.sta) to the instrument. :MMEMory:LOAD:STATe state1.sta...
  • Page 75 RIGOL Chapter 2 Command System :MMEMory:MOVE Syntax :MMEMory:MOVE <file_name1>,<file_name2> Description Renames the specified file <file_name1> as <file_name2>. Parameter Name Type Range Default <file_name1> ASCII String <file_name2> ASCII String Remarks <file_name1> and <file_name2> should contain the path and the filename. This operation fails if the file with the specified filename does not exist.
  • Page 76 RIGOL Chapter 2 Command System Parameter Name Type Range Default <label> Keyword LLINE1|LLINE2|LLINE3|LLINE4|LLINE5|LLINE6 <file_name> ASCII String Remarks If the specified file already exists, overwrite it. Example The following command saves Limit Line 1 data with the filename "low" to the folder (/emi/limit).
  • Page 77 RIGOL Chapter 2 Command System Example The following command saves the current screen image with the filename "screen.jpg" to the folder (/emi/screen). :MMEMory:STORe:SCReen screen.jpg :MMEMory:STORe:SLISt Syntax :MMEMory:STORe:SLISt <filename> Description Saves the signal table with a specified filename suffixed with ".csv" by default to the default path (/"mode name"/signaltable).
  • Page 78 RIGOL Chapter 2 Command System :MMEMory:STORe:TRACe Syntax :MMEMory:STORe:TRACe <label>,<file_name> Description Saves the specified trace+state file with filename suffixed with ".trs" to the default path (/"mode name"/tracestate). Parameter Name Type Range Default <label> Keyword TRACE1|TRACE2|TRACE3 <file_name> ASCII String Remarks If the specified file already exists, overwrite it.
  • Page 79 RIGOL Chapter 2 Command System [:SENSe] Commands Command List: [:SENSe]:AVERage:COUNt  [:SENSe]:AVERage:TYPE  [:SENSe]:AVERage:TYPE:AUTO  [:SENSe]:BANDwidth|BWIDth:EMIFilter:STATe  [:SENSe]:BANDwidth|BWIDth[:RESolution]  [:SENSe]:BANDwidth|BWIDth[:RESolution]:AUTO  [:SENSe]:CORRection:CSET:ALL:DELete  [:SENSe]:CORRection:CSET:ALL[:STATe]  [:SENSe]:CORRection:CSET<n>:DATA  [:SENSe]:CORRection:CSET<n>:DATA:MERGe  [:SENSe]:CORRection:CSET<n>:DELete  [:SENSe]:CORRection:CSET<n>[:STATe]  [:SENSe]:CORRection:CSET<n>:X:SPACing  :INPut:IMPedance  [:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude]  [:SENSe]:CORRection:SA[:RF]:GAIN ...
  • Page 80 RIGOL Chapter 2 Command System [:SENSe]:FSCan:SCAN<n>:POINT  [:SENSe]:FSCan:SCAN<n>:POWer:GAIN[:STATe]  [:SENSe]:FSCan:SCAN<n>:STARt  [:SENSe]:FSCan:SCAN<n>:STATe  [:SENSe]:FSCan:SCAN<n>:STOP  [:SENSe]:FSCan:SCAN<n>:TIME  [:SENSe]:FSCan:SCAN<n>:TIME:AUTO  [:SENSe]:FSCan:SEARch:MODE  [:SENSe]:FSCan:SEARch:PEAK:COUNt  [:SENSe]:FSCan:SEARch:PEAK:COUNt:STATe  [:SENSe]:FSCan:SEARch:SUBRange:COUNt  [:SENSe]:FSCan:SEQuence  [:SENSe]:FSCan:SEQuence:REMeasure  [:SENSe]:FSCan:SLISt:COUPle:METer  [:SENSe]:FSCan:TRACe:TYPE  [:SENSe]:METer:DETector:DWELl  [:SENSe]:METer:PHOLd:ADJustable  [:SENSe]:METer:PHOLd:RESet ...
  • Page 81 RIGOL Chapter 2 Command System [:SENSe]:AVERage:COUNt Syntax [:SENSe]:AVERage:COUNt <integer> [:SENSe]:AVERage:COUNt? Description Sets the trace average count of the current measurement. Queries the trace average count of the current measurement. Parameter Name Type Range Default <integer> Integer 1 to 10,000 Return Format The query returns the average count in integer.
  • Page 82 RIGOL Chapter 2 Command System [:SENSe]:AVERage:TYPE:AUTO Syntax [:SENSe]:AVERage:TYPE:AUTO OFF|ON|0|1 [:SENSe]:AVERage:TYPE:AUTO? Description Enables or disables the auto state for the average type of the current measurement. Queries the on/off auto state for the average type of the current measurement. Parameter Name...
  • Page 83 RIGOL Chapter 2 Command System [:SENSe]:BANDwidth|BWIDth[:RESolution] Syntax [:SENSe]:BANDwidth|BWIDth[:RESolution] <freq> [:SENSe]:BANDwidth|BWIDth[:RESolution]? Description Sets the resolution bandwidth (RBW) of the meter frequency. Queries the resolution bandwidth of the meter frequency. Parameter Name Type Range Default <freq> Discrete 100 Hz to 10 MHz (at 1-3-10 step)
  • Page 84 RIGOL Chapter 2 Command System When the EMC measurement standard is "None", this command is invalid. When the EMC measurement standard is "CISPR", select the Auto RBW mode by default. Return Format The query returns 0 or 1. Example The following command enables the auto setting mode of RBW.
  • Page 85 RIGOL Chapter 2 Command System [:SENSe]:CORRection:CSET<n>:DATA Syntax [:SENSe]:CORRection:CSET<n>:DATA <x>,<ampl>,{<x>,<ampl>} [:SENSe]:CORRection:CSET<n>:DATA? Description Creates an amplitude correction curve by using the specified data. Queries the specified amplitude correction data. Parameter Name Type Range Default <n> Discrete 1|2|3|4 <x> Consecutive Real Number 0 Hz to 6.5 GHz <ampl>...
  • Page 86 RIGOL Chapter 2 Command System [:SENSe]:CORRection:CSET<n>:DELete Syntax [:SENSe]:CORRection:CSET<n>:DELete Description Deletes the specified amplitude correction setting. Parameter Name Type Range Default <n> Discrete 1|2|3|4 Remarks <n>: 1 indicates antenna; 2 indicates cable; 3 indicates other, and 4 indicates user. Example The following command deletes the antenna correction setting.
  • Page 87 If the output impedance of the system under measurement is 75 Ω, you should use a 75 Ω to 50 Ω adapter (option) supplied by RIGOL to connect the analyzer with the system under test, and then set the input impedance to 75 Ω.
  • Page 88 RIGOL Chapter 2 Command System [:SENSe]:CORRection:SA[:RF]:GAIN Syntax [:SENSe]:CORRection:SA[:RF]:GAIN <rel_ampl> [:SENSe]:CORRection:SA[:RF]:GAIN? Description Sets the external gain. Queries the external gain. Parameter Name Type Range Default <rel_ampl> Consecutive Real Number -120 dB to 120 dB 0 dB Return Format The query returns the external gain value in scientific notation. The unit is dB.
  • Page 89 RIGOL Chapter 2 Command System [:SENSe]:EMC:STANdard[:SELect] Syntax [:SENSe]:EMC:STANdard[:SELect] NONE|CISPr [:SENSe]:EMC:STANdard[:SELect]? Description Sets the EMC standard. Queries the EMC standard. Parameter Name Type Range Default Discrete NONE|CISPr CISPr Return Format The query returns NONE or CISP. Example The following command sets the EMC standard to CISPr.
  • Page 90 RIGOL Chapter 2 Command System [:SENSe]:FREQuency:MIDSpan Syntax [:SENSe]:FREQuency:MIDSpan <freq> [:SENSe]:FREQuency:MIDSpan? Description Sets the midspan center frequency. Queries the midspan center frequency. Parameter Name Type Range Default <freq> Consecutive Real Number 5 kHz to (Fmax - 5 kHz) 515 MHz Return Format The query returns the midspan center frequency in scientific notation.
  • Page 91 RIGOL Chapter 2 Command System [:SENSe]:FREQuency:STARt Syntax [:SENSe]:FREQuency:STARt <freq> [:SENSe]:FREQuency:STARt? Description Sets the start frequency. Queries the start frequency. Parameter Name Type Range Default <freq> Consecutive Real Number 0 Hz to (Fmax - 10 Hz) midspan frequency - span/2 Return Format The query returns the start frequency in scientific notation.
  • Page 92 RIGOL Chapter 2 Command System [:SENSe]:FREQuency:STOP Syntax [:SENSe]:FREQuency:STOP <freq> [:SENSe]:FREQuency:STOP? Description Sets the stop frequency. Queries the stop frequency. Parameter Name Type Range Default <freq> Consecutive Real Number 10 Hz to Fmax midspan frequency + span/2 Return Format The query returns the stop frequency in scientific notation. The unit is Hz.
  • Page 93 RIGOL Chapter 2 Command System [:SENSe]:FSCan:DETector:TRACe<n> Syntax [:SENSe]:FSCan:DETector:TRACe<n> AVERage|NEGative|POSitive|CAVerage |QPEak|RAVerage [:SENSe]:FSCan:DETector:TRACe<n>? Description Sets the detector type for the specified trace. Queries the detector type for the specified trace. Parameter Name Type Range Default <n> Discrete 1|2|3 AVERage|NEGative|POSitive| Keyword POSitive CAVerage|QPEak|RAVerage Remarks AVERage: indicates the voltage average.
  • Page 94 RIGOL Chapter 2 Command System AVERage: indicates the voltage average. NEGative: indicates the negative peak. OFF: indicates disabling the detector. By default, the detector 1 type is positive peak; the detector 2 type is quasi peak; the detector 3 type is CISPR average.
  • Page 95 RIGOL Chapter 2 Command System [:SENSe]:FSCan:FINal:DETector<n>:LDELta Syntax [:SENSe]:FSCan:FINal:DETector<n>:LDELta <limit_Num> [:SENSe]:FSCan:FINal:DETector<n>:LDELta? Description Sets the limit line used by the specified detector in the final measurement. Queries the limit line used by the specified detector in the final measurement. Parameter Name Type...
  • Page 96 RIGOL Chapter 2 Command System [:SENSe]:FSCan:SCAN:ABORT Syntax [:SENSe]:FSCan:SCAN:ABORT Description Stops the current scan sequence. [:SENSe]:FSCan:SCAN<n>:BANDwidth|BWIDth:EMIFilter:STATe Syntax [:SENSe]:FSCan:SCAN<n>:BANDwidth|BWIDth:EMIFilter:STATe OFF|ON|0|1 [:SENSe]:FSCan:SCAN<n>:BANDwidth|BWIDth:EMIFilter:STATe? Description Enables or disables the EMI filter within the specified range. Queries the status of the EMI filter within the specified range.
  • Page 97 RIGOL Chapter 2 Command System Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6|7|8|9|10 3|4|5 <freq> Discrete 100 Hz to 10 MHz (at 1-3-10 step) 120 kHz Remarks When the EMC measurement standard is "None" and "Gauss" filter is selected, the RBW range is as above.
  • Page 98 RIGOL Chapter 2 Command System Description Sets the attenuation value for the specified range. Queries the attenuation value for the specified range. Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6|7|8|9|10 3|4|5 <rel_ampl> Integer 0 dB to 50 dB 10 dB Return Format The query returns the attenuation in integer.
  • Page 99 RIGOL Chapter 2 Command System Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6|7|8|9|10 3|4|5 <integer> Integer 101 to 10,001 Refer to "Remarks" Remarks The default value of the scan points is determined by the following parameters for the specified range: scan points = (stop frequency –...
  • Page 100 RIGOL Chapter 2 Command System Parameter Name Type Range Default <n> Discrete 1|2|3|4|5|6|7|8|9|10 3|4|5 <freq> Consecutive Real Number 0 Hz to 6.5 GHz 30 MHz Return Format The query returns the start frequency for the specified range in scientific notation. The unit is Hz.
  • Page 101 RIGOL Chapter 2 Command System Return Format The query returns the stop frequency for the specified range in scientific notation. The unit is Hz. Example The following command sets the stop frequency for Range 1 to 100 MHz. :SENSe:FSCan:SCAN1:STOP 100000000 The following query returns 1.000000000e+08.
  • Page 102 RIGOL Chapter 2 Command System Example The following command enables the auto scan time for sweep range 1. :SENSe:FSCan:SCAN1:TIME:AUTO 1 or :SENSe:FSCan:SCAN1:TIME:AUTO ON The following query returns 1. :SENSe:FSCan:SCAN1:TIME:AUTO? [:SENSe]:FSCan:SEARch:MODE Syntax [:SENSe]:FSCan:SEARch:MODE PONLy|PLIMits|SLIMits [:SENSe]:FSCan:SEARch:MODE? Description Sets the signal search criteria in the signal table.
  • Page 103 RIGOL Chapter 2 Command System Return Format The query returns the peak count in integer. Example The following command sets the number of peaks that are required during signal search to 3. :SENSe:FSCan:SEARch:PEAK:COUNt 3 The following query returns 3. :SENSe:FSCan:SEARch:PEAK:COUNt?
  • Page 104 RIGOL Chapter 2 Command System The following query returns 3. :SENSe:FSCan:SEARch:SUBRange:COUNt? [:SENSe]:FSCan:SEQuence Syntax [:SENSe]:FSCan:SEQuence SCAN|SEARch|SSAMeasure|SASearch|SAMeasure|REMeasure [:SENSe]:FSCan:SEQuence? Description Sets the type of the scan sequence. Queries the type of the scan sequence. Parameter Name Type Range Default SCAN|SEARch|SSAMeasure| Keyword SCAN SASearch|SAMeasure|REMeasure Remarks SCAN: indicates the scan only.
  • Page 105 RIGOL Chapter 2 Command System Return Format The query returns CURR, MARK, or ALL. Example The following command sets the type of the final measurement to CURRent. :SENSe:FSCan:SEQuence:REMeasure CURRent The following query returns CURR. :SENSe:FSCan:SEQuence:REMeasure? [:SENSe]:FSCan:SLISt:COUPle:METer Syntax [:SENSe]:FSCan:SLISt:COUPle:METer OFF|ON|0|1 [:SENSe]:FSCan:SLISt:COUPle:METer? Description Enables or disables the coupling function between the meter and the signal table.
  • Page 106 RIGOL Chapter 2 Command System Return Format The query returns WRIT, AVER, MAXH, or MINH. Example The following command sets the type of the current trace to MAXHold. :SENSe:FSCan:TRACe:TYPE MAXHold The following query returns MAXH. :SENSe:FSCan:TRACe:TYPE? [:SENSe]:METer:DETector:DWELl Syntax [:SENSe]:METer:DETector:DWELl <time>...
  • Page 107 RIGOL Chapter 2 Command System The following query returns 8.000000000e-01. :SENSe:METer:PHOLd:ADJustable? [:SENSe]:METer:PHOLd:RESet Syntax [:SENSe]:METer:PHOLd:RESet Description Resets the peak hold lines of all the currently enabled meters to the current signal value. [:SENSe]:METer:PHOLd:TYPE Syntax [:SENSe]:METer:PHOLd:TYPE INFinite|ADJustable [:SENSe]:METer:PHOLd:TYPE? Description Sets the max hold time mode of the meter.
  • Page 108 RIGOL Chapter 2 Command System Parameter Name Type Range Default <n> Discrete 1|2|3 POSitive|QPEak|CAVerage|R Keyword POSitive AVerage|AVERage|NEGative Remarks POSitive: indicates the positive peak. QPEak: indicates the quasi-peak. CAVerage: indicates the CISPR average. RAVerage: indicates the RMS average. AVERage: indicates the voltage average.
  • Page 109 RIGOL Chapter 2 Command System [:SENSe]:POWer[:RF]:GAIN[:STATe] Syntax [:SENSe]:POWer[:RF]:GAIN[:STATe] OFF|ON|0|1 [:SENSe]:POWer[:RF]:GAIN[:STATe]? Description Enable or disable the meter preamplifier. Queries the status of the meter preamplifier. Parameter Name Type Range Default Bool OFF|ON|0|1 OFF|0 Return Format The query returns 0 or 1.
  • Page 110 RIGOL Chapter 2 Command System :STATus Commands The :STATus commands and IEEE 488.2 Common Commands are used to operate or query the status registers. The structure of the status register is shown in the following figure. The STATus commands are used to set and query the questionable status register and operation status register.
  • Page 111 RIGOL Chapter 2 Command System :STATus:OPERation:CONDition? Syntax :STATus:OPERation:CONDition? Description Queries the condition register of the operation status register. Return Format The query returns the condition register in integer. For example, 24. :STATus:OPERation:ENABle Syntax :STATus:OPERation:ENABle <integer> :STATus:OPERation:ENABle? Description Sets the enable register of the operation status register.
  • Page 112 RIGOL Chapter 2 Command System Example The following command sets the enable register of the Operation Status Register to 100. :STATus:OPERation:ENABle 100 The following query returns 100. :STATus:OPERation:ENABle? :STATus:OPERation[:EVENt]? Syntax :STATus:OPERation[:EVENt]? Description Queries the event register of the Operation Status Register.
  • Page 113 RIGOL Chapter 2 Command System Remarks The definition of the Questionable Status Register is shown in the following table. Bit 0-8, bit 13, and bit 14 are reserved. You can set their values but they will not affect the system. Bit 15, bit 12-9 are not used and they are always treated as 0.
  • Page 114 RIGOL Chapter 2 Command System :SYSTem Commands Command List: :SYSTem:BEEPer:STATe  :SYSTem:COMMunicate:LAN[:SELF]:APPLy  :SYSTem:COMMunicate:LAN[:SELF]:AUToip:STATe  :SYSTem:COMMunicate:LAN[:SELF]:DHCP:STATe  :SYSTem:COMMunicate:LAN[:SELF]:IP:ADDRess  :SYSTem:COMMunicate:LAN[:SELF]:IP:DNSBack  :SYSTem:COMMunicate:LAN[:SELF]:IP:DNSPreferred  :SYSTem:COMMunicate:LAN[:SELF]:IP:DNSServer  :SYSTem:COMMunicate:LAN[:SELF]:IP:GATeway  :SYSTem:COMMunicate:LAN[:SELF]:IP:SUBMask  :SYSTem:COMMunicate:LAN[:SELF]:MANuip:STATe  :SYSTem:COMMunicate:LAN[:SELF]:MDNS:STATe  :SYSTem:COMMunicate:LAN[:SELF]:RESet  :SYSTem:CONFigure:INFormation?  :SYSTem:DATE  :SYSTem:FSWitch[:STATe] ...
  • Page 115 RIGOL Chapter 2 Command System :SYSTem:BEEPer:STATe Syntax :SYSTem:BEEPer:STATe OFF|ON|0|1 :SYSTem:BEEPer:STATe? Description Turns on or off the beeper. Queries the on/off status of the beeper. Parameter Name Type Range Default Bool OFF|ON|0|1 OFF|0 Return Format The query returns 0 or 1.
  • Page 116 RIGOL Chapter 2 Command System Example The following command enables the auto IP setting mode. :SYSTem:COMMunicate:LAN:SELF:AUToip:STATe ON or :SYSTem:COMMunicate:LAN:SELF:AUToip:STATe 1 The following query returns 1. :SYSTem:COMMunicate:LAN:SELF:AUToip:STATe? :SYSTem:COMMunicate:LAN[:SELF]:DHCP:STATe Syntax :SYSTem:COMMunicate:LAN[:SELF]:DHCP:STATe OFF|ON|0|1 :SYSTem:COMMunicate:LAN[:SELF]:DHCP:STATe? Description Enables or disables the DHCP configuration mode. Queries the status of the DHCP configuration mode.
  • Page 117 RIGOL Chapter 2 Command System This command is only valid in manual IP setting mode. Return Format The query returns the current IP address in the format of "nnn.nnn.nnn.nnn". Example The following command sets the IP address to "172.16.3.199". :SYSTem:COMMunicate:LAN:SELF:IP:ADDRess 172.16.3.199 The following query returns 172.16.3.199.
  • Page 118 RIGOL Chapter 2 Command System Parameter Name Type Range Default <ip_address> ASCII String Refer to "Remarks" Remarks The format of <ip_address> is "nnn.nnn.nnn.nnn". The range for the first segment (nnn) of the address is from 1 to 223 (except 127); and the range for the other three segments is from 0 to 255.
  • Page 119 RIGOL Chapter 2 Command System :SYSTem:COMMunicate:LAN[:SELF]:IP:SUBMask Syntax :SYSTem:COMMunicate:LAN[:SELF]:IP:SUBMask<ip_address> :SYSTem:COMMunicate:LAN[:SELF]:IP:SUBMask? Description Sets the subnet mask. Queries the subnet mask. Parameter Name Type Range Default <ip_address> ASCII String Refer to "Remarks" Remarks The format of <ip_address> is "nnn.nnn.nnn.nnn". The range for the first segment (nnn) is from 0 to 255.
  • Page 120 RIGOL Chapter 2 Command System The following query returns 1. :SYSTem:COMMunicate:LAN:SELF:MANuip:STATe? :SYSTem:COMMunicate:LAN[:SELF]:MDNS:STATe Syntax :SYSTem:COMMunicate:LAN[:SELF]:MDNS:STATe OFF|ON|0|1 :SYSTem:COMMunicate:LAN[:SELF]:MDNS:STATe? Description Enables or disables the state of the network information sending. Queries the on/off status of the network information sending. Parameter Name Type Range...
  • Page 121 RIGOL Chapter 2 Command System Model:RSA5065 SN:RSA5B192000020 Main Board:00.01.00 Keyboard:00.01.00 CPU:00.01.00 SPU:00.01.02 WPU:00.01.00 BOOT:00.01.00 OS:00.01.00 Firmware:00.01.00 Note: When you use RSA5065-TG/RSA5032-TG, the query also returns information about "TG Board". :SYSTem:DATE Syntax :SYSTem:DATE <year>,<month>,<day> :SYSTem:DATE? Description Sets the date of the instrument.
  • Page 122 RIGOL Chapter 2 Command System Return Format The query returns 0 or 1. Example The following command sets the power switch on the front panel is turned off. :SYSTem:FSWitch:STATe OFF or :SYSTem:FSWitch:STATe 0 The following query returns 0. :SYSTem:FSWitch:STATe? :SYSTem:LANGuage...
  • Page 123 RIGOL Chapter 2 Command System RSA5000-PA@8AD12B8EBC5DF492D1D4289B7CBA5B6150BF6F5D752D645C36D74530B05F39B49C461B2 3A50D6C94A34E06782AC4380070B0D1A86BA84E02768391FFD70C2103 :SYSTem:OPTion:STATe? Syntax :SYSTem:OPTion:STATe? <option name> Description Queries whether an option is activated or not. Parameter Name Type Range Default <option name> ASCII String Return Format The query returns 0 (not activated) or 1 (activated).
  • Page 124 RIGOL Chapter 2 Command System :SYSTem:PRESet Syntax :SYSTem:PRESet Description Recalls the preset settings of the system and recovers the system to the state specified by :SYSTem:PRESet:TYPE command. :SYSTem:PRESet:SAVE Syntax :SYSTem:PRESet:SAVE USER1|USER2|USER3|USER4|USER5|USER6 Description Saves the specified user setting. Parameter Name Type...
  • Page 125 RIGOL Chapter 2 Command System Remarks If the current preset type is "FACTory", save the current user setting to User1. If the current preset type is "User1 through User6", save the current user setting to the specified user. :SYSTem:SCPI:DISPlay Syntax...
  • Page 126 RIGOL Chapter 2 Command System Queries the system-related information. Parameter Name Type Range Default Keyword OFF|SYSTem|OPTion|LICense Remarks OFF: turns off the system information display. SYSTem: displays the system information. OPTion: displays the option information. LICense: displays the registration information. Return Format The query returns OFF, SYST, OPT, or LIC.
  • Page 127 RIGOL Chapter 2 Command System :TRACe Commands Command List: :TRACe[:DATA]  :TRACe<n>:DISPlay[:STATe]  :TRACe<n>:UPDate:STATe  :TRACe[:DATA] Syntax :TRACe[:DATA]? TRACE1|TRACE2|TRACE3 Description Queries the log data of the specified trace. Parameter Name Type Range Default Keyword TRACE1|TRACE2|TRACE3 Remarks If the filter for the specified range in the scan table is EMI filter and RBW is 1 MHz, and the trace detector type is quasi peak, the query of the corresponding trace data returns -1.700000000e+02.
  • Page 128 RIGOL Chapter 2 Command System :TRACe<n>:DISPlay[:STATe] Syntax :TRACe<n>:DISPlay[:STATe] OFF|ON|0|1 :TRACe<n>:DISPlay[:STATe]? Description Enables or disables the display of the specified trace. Queries the setting state for the specified trace. Parameter Name Type Range Default <n> Discrete 1|2|3 Bool OFF|ON|0|1 Refer to "Remarks"...
  • Page 129 RIGOL Chapter 2 Command System :TRIGger Commands Command List: :TRIGger[:SEQuence]:ATRigger  :TRIGger[:SEQuence]:ATRigger:STATe  :TRIGger[:SEQuence]:EXTernal<n>:DELay  :TRIGger[:SEQuence]:EXTernal<n>:DELay:STATe  :TRIGger[:SEQuence]:EXTernal<n>:SLOPe  :TRIGger[:SEQuence]:HOLDoff  :TRIGger[:SEQuence]:HOLDoff:STATe  :TRIGger[:SEQuence]:SOURce  :TRIGger2:MODE  :TRIGger[:SEQuence]:ATRigger Syntax :TRIGger[:SEQuence]:ATRigger <time> :TRIGger[:SEQuence]:ATRigger? Description Sets the time that the analyzer will wait for the trigger to be initiated automatically.
  • Page 130 RIGOL Chapter 2 Command System Parameter Name Type Range Default Bool OFF|ON|0|1 OFF|0 Return Format The query returns 1 or 0. Example The following command enables the auto trigger function. :TRIGger:SEQuence:ATRigger:STATe ON or :TRIGger:SEQuence:ATRigger:STATe 1 The following query returns 1.
  • Page 131 RIGOL Chapter 2 Command System Parameter Name Type Range Default <n> Discrete Bool OFF|ON|0|1 OFF|0 Remarks When the parameter n is set to 1, it indicates External Trigger 1; when set to 2, it indicates External Trigger Return Format The query returns 1 or 0.
  • Page 132 RIGOL Chapter 2 Command System :TRIGger[:SEQuence]:HOLDoff Syntax :TRIGger[:SEQuence]:HOLDoff <time> :TRIGger[:SEQuence]:HOLDoff? Description Sets the trigger holdoff time. Queries the trigger holdoff time. Parameter Name Type Range Default <time> Consecutive Real Number 100 us to 500 ms 100 ms Remarks This command is only valid when the trigger holdoff function is enabled.
  • Page 133 RIGOL Chapter 2 Command System :TRIGger[:SEQuence]:SOURce Syntax :TRIGger[:SEQuence]:SOURce EXTernal1|EXTernal2|IMMediate :TRIGger[:SEQuence]:SOURce? Description Sets the trigger source. Queries the trigger source. Parameter Name Type Range Default Keyword EXTernal1|EXTernal2|IMMediate IMMediate Remarks EXTernal1: indicates External Trigger 1. EXTernal2: indicates External Trigger 2. IMMediate: indicates the free-run trigger.
  • Page 134 RIGOL Chapter 2 Command System :UNIT Command Command List: :UNIT:POWer  :UNIT:POWer Syntax :UNIT:POWer DBM|DBMV|DBUV|V|W :UNIT:POWer? Description Sets the unit of the Y axis. Queries the unit of the Y axis. Parameter Name Type Range Default Keyword DBM|DBMV|DBUV|V|W Refer to "Remarks"...
  • Page 136 RIGOL Chapter 3 Appendix Chapter 3 Appendix Appendix A: Default Settings Sending the *RST command can restore the instrument to default settings, as shown in the table below. Parameter Name EMI Parameter Value FREQ Frequency(Meter) 515 MHz Midspan Freq 515 MHz...
  • Page 137 RIGOL Chapter 3 Appendix Avg Auto Auto Test Limits Select Limit Limit1 Limit State Test Trace Trace1 X to CF Fixed Y to Ref Fixed Margin Off, 0 dB Freq Interpolation Frequency 0 Hz Amplitude 106.99 dBuV Build From Trace1...
  • Page 138 RIGOL Chapter 3 Appendix Select Detector Detector 1 Dwell Time 200 ms Detector Pos Peak Limit for Delta Limit 1 Meas at Mkr Win System Power On Preset Preset Type Default Align Auto LAN Setting Mode DHCP Display Line Off, 81.99 dBuV...
  • Page 139 There is no other warranty, expressed or implied, except such as is expressly set forth herein or other applicable warranty card. There is no implied warranty of merchantability or fitness for a particular purpose. Under no circumstances shall RIGOL be liable for any consequential, indirect, ensuing, or special damages for any breach of warranty in any case.
