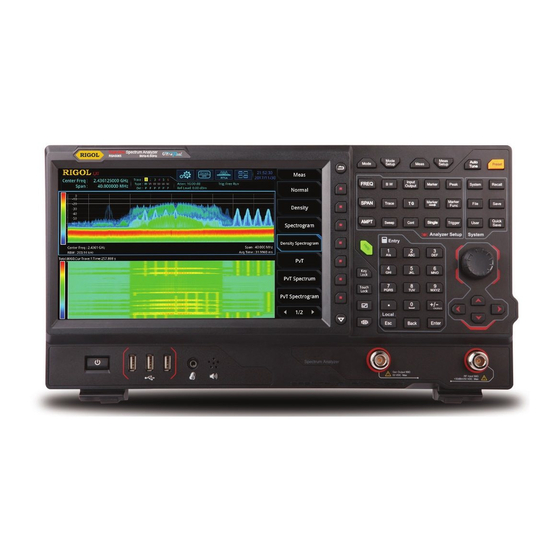

Rigol RSA5065 Quick Manual

Rsa5000 series, real-time spectrum analyzer
Hide thumbs Also See for RSA5065:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
RIGOL
Quick Guide
RSA5000 Series Real-time
Spectrum Analyzer
RIGOL TECHNOLOGIES, INC.
Dec. 2017
English
中文

Advertisement

Table of Contents
loading

Related Manuals for Rigol RSA5065

Summary of Contents for Rigol RSA5065

  • Page 1 RIGOL English Quick Guide 中文 RSA5000 Series Real-time Spectrum Analyzer Dec. 2017 RIGOL TECHNOLOGIES, INC.

  • Page 3: Guaranty And Declaration

    RIGOL products are covered by P.R.C. and foreign patents, issued and  pending. RIGOL reserves the right to modify or change parts of or all the  specifications and pricing policies at the company’s sole decision. Information in this publication replaces all previously released materials.

  • Page 4: General Safety Summary

    RIGOL General Safety Summary English Only the exclusive power cord Use the proper fuse. designed for the instrument Avoid circuit or wire exposure. and authorized for use within Do not operate the instrument with the local country could be suspected failures.

  • Page 5: Care And Cleaning

    RIGOL Safety Symbols on the Product: English Hazardous Safety Protective Earth Chassis Ground Test Ground Voltage Warning Terminal Care and Cleaning Care Do not store or leave the instrument where it may be exposed to direct sunlight for long periods of time.

  • Page 6: Document Overview

    AC power, turn-on checkout, and remote control overview. For the latest version of this manual, download it from the official website of RIGOL (www.rigol.com). Format Conventions in this Manual Keys: The keys on the front panel are usually denoted by the format of "Key Name (Bold) + Text Box".
  • Page 7 Content Conventions in this Manual English The RSA5000 series spectrum analyzer includes the following models. Unless otherwise specified, this manual takes RSA5065 as an example to illustrate the functions and operation methods of RSA5000 series spectrum analyzer. Model Frequency Range RSA5065 9 kHz to 6.5 GHz...

  • Page 8: General Inspection

    The consigner or carrier shall be liable for the damage to the instrument resulting from shipment. RIGOL would not be responsible for free maintenance/rework or replacement of the instrument. 2． Inspect the instrument...
  • Page 9 RIGOL English 14 13 12 11 10 Figure 1 Front Panel Table 1 Front Panel Description Description Description Numeric keyboard Menu softkeys TG output Back to previous menu page Utility function key area Function key area Page Up/Down key Help key...
  • Page 10 RIGOL English Figure 2 Rear Panel Table 2 Rear Panel Description Description Description AC power cord connector TRIGGER IN Fuse holder LAN interface OCXO (option) USB DEVICE interface Handle USB HOST interface 10MHz IN HDMI 10MHz OUT IF OUT TRIGGER IN/OUT ——...
  • Page 11 RIGOL 6 7 8 10 11 12 13 14 English 24 23 22 17 16 Figure 3 User Interface Table 3 User Interface Icons Name Description Reference level Displays the reference level value. Measurement Displays the current measurement results for...
  • Page 12 RIGOL Information : indicates messages, such as the prompt English setting messages, alarm messages, and error messages. : indicates the speaker. You can tune it up and down to increase and decrease the speaker volume, or set it to mute.
  • Page 13 RIGOL frequency channel can be expressed by the combination English of center frequency and span or the combination of start frequency and stop frequency. Y scale Indicates the scale indication in the Y axis. Note The display of the trace indicator is shown in the following figure:...

  • Page 14: To Prepare For Use

    RIGOL To Prepare for Use English To Adjust the Supporting Legs You can unfold the supporting legs to use them as stands to tilt the instrument upwards for easier operation and observation. You can also fold the supporting legs for easier storage or shipment when the instrument is not in use.

  • Page 15: Turn-On Checkout

    RIGOL English CAUTION To avoid electric shock, ensure that the instrument is correctly grounded. Turn-on Checkout After connecting the instrument to the power source properly, press the Power on the front panel to start the spectrum analyzer. Then, you will see an initial splash screen.

  • Page 16: Basic Operations

    RIGOL Basic Operations English Mouse/Keyboard/Touch Screen Operation Rule Mouse Operation Rule Connect the mouse (note that only the left-click operation is supported; the scroll and right-click operations with the mouse are not supported) to the spectrum analyzer via the USB HOST interface to perform the following operations: Click to select the menu and window.
  • Page 17 RIGOL Input Output Shift + i English Shift + g Cont Marker Shift + m Marker -> Shift + k Single Peak Shift + p Marker Function Shift + u Trigger Shift + r System Shift + y File Ctrl + f...
  • Page 18 RIGOL Touch Screen Operation Rule English RSA5000 has a 10.1-inch capacitive multi-touch screen that supports touch gestures. When operating on the menus other than the Marker menu: Tap the trace window, then slide left and right to modify the center ...
  • Page 19 RIGOL Enter Lower-level Menu (with parameter) English Press the corresponding menu key to enter the lower-level menu and change the currently selected option. The parameter type in the upper-level menu will be changed when you return to the upper-level menu again.

  • Page 20: Parameter Setting

    RIGOL Parameter Setting English You can enter the desired parameter values by using the numeric keys, the knob, or arrow keys on the front panel. Also, you can set the parameters by using the touch screen, the keyboard or the mouse. This section takes an example (set the center frequency to 800 MHz) to describe six methods of parameter setting.
  • Page 21 RIGOL English Figure 6 Arrow Keys Use the touch screen Touch the screen to select the function keypad icon at the upper-right corner. Then, the function keypad is displayed. Touch "FREQ"; Click Center Freq; Then the numeric keypad is displayed. Input 800, and select the desired unit "MHz".

  • Page 22: To Use The Built-In Help System

    RIGOL To Use the Built-in Help System English The built-in help system provides information about every function key on the front panel and every menu softkey. Get the built-in help information Press Help and a prompt message about how to obtain help information will be shown on the screen.

  • Page 23: Fuse Replacement

    RIGOL Fuse Replacement English If you need to replace the fuse, use only the specified fuse (AC 250 V, T3.15 A; 5.2 mm×20 mm) and perform the following operations: 1． Turn off the instrument, cut off the power, and remove the power cord.

  • Page 24: Working Mode Setting

    RIGOL Working Mode Setting English RSA5000 provides two working modes: GPSA (general purpose spectrum analyzer) and RTSA (real-time spectrum analyzer). Press Mode to select the working mode. Note: In different working modes, the functions of the keys on the front panel may be different.

  • Page 25: Remote Control

    For more information about this instrument, refer to the relevant manuals by logging in to the official website of RIGOL (www.rigol.com) to download them. RSA5000 User's Guide : introduces the functions of the instrument and the operation methods, remote control methods, possible failures and solutions in using the instrument, the technical specifications, and order information.
