Wired Connection
In this configuration, the Modena Hub/Hub+ base unit is connected to the company LAN via its
Network port. Users connect to Modena via their devices that are connected to the corporate LAN.
These devices may be connected to the corporate LAN wirelessly or via Ethernet connection. Guest
access to Modena can be provided with guest access to the corporate LAN.
Access to Modena and any of its specific features will depend upon permissions granted to the user.

Wired Connection Set-Up

1. Connect Modena's Network port to
the corporate LAN.
• Make sure the Modena has both
a pathway and access to an active
DHCP server on the network.
Modena is set to DHCP by default
and will need to obtain an IP
address from DHCP server.
2. Connect Modena's power supply to
power on the unit.
• If power is already connected but
the unit is powered off, press and
release the Power button on the
front of the unit to turn it back
on.
3. Get the Modena's IP address one of
the following methods:
• Connect a display to Modena's
HDMI port. The device's IP
address will be displayed on the
"Welcome" screen.
• Use a network tool to discover
what IP address has been
assigned to the device.
4. Type the device's IP address into the
URL field of a web browser to access
Modena's web admin console.
Webcam HDMI TV
Wireless Devices on a Corporate Network

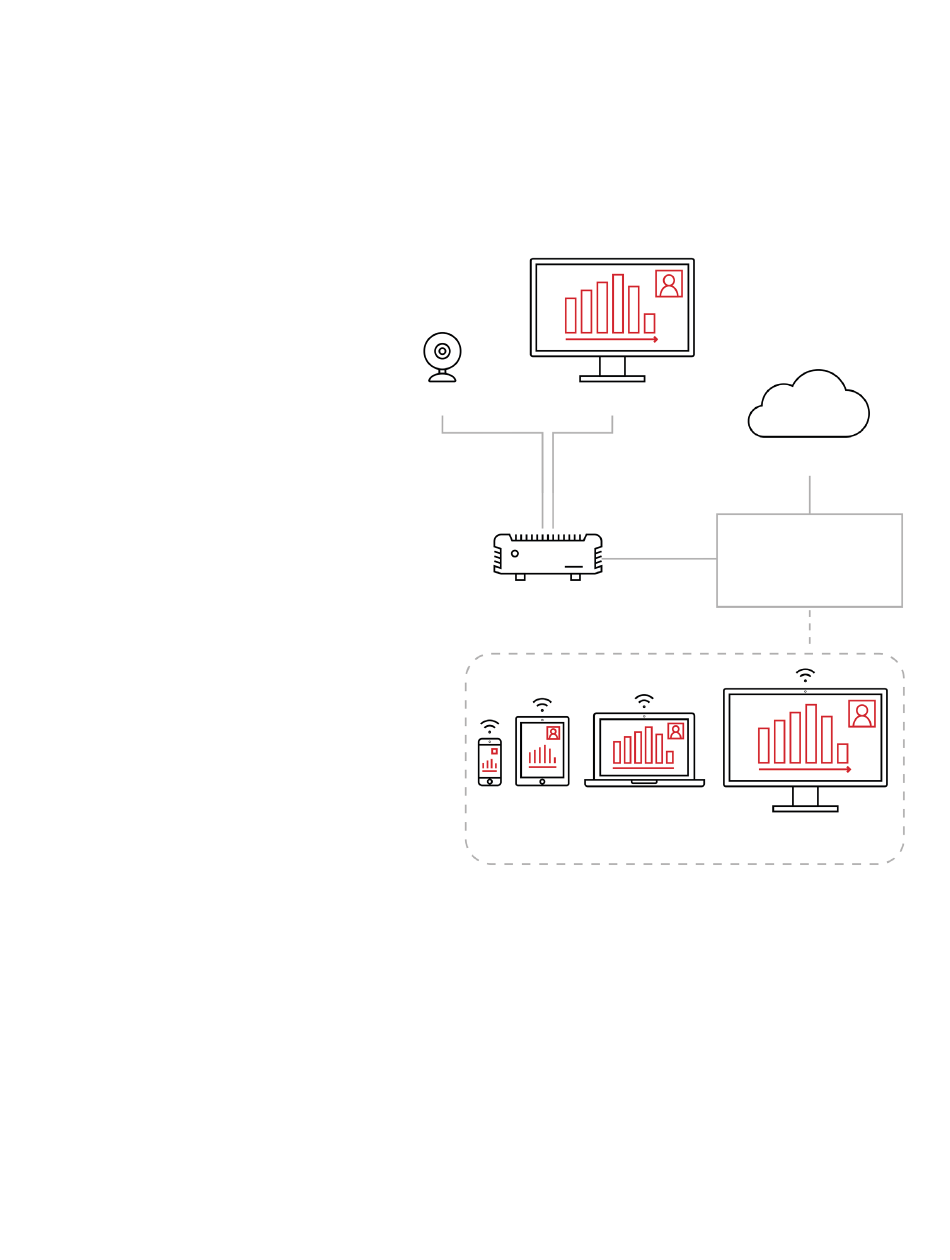

Figure 1. Wired Connection
Internet
Ethernet
Corporate Network
