Summary of Contents for Jaco Ultralite 100 Series

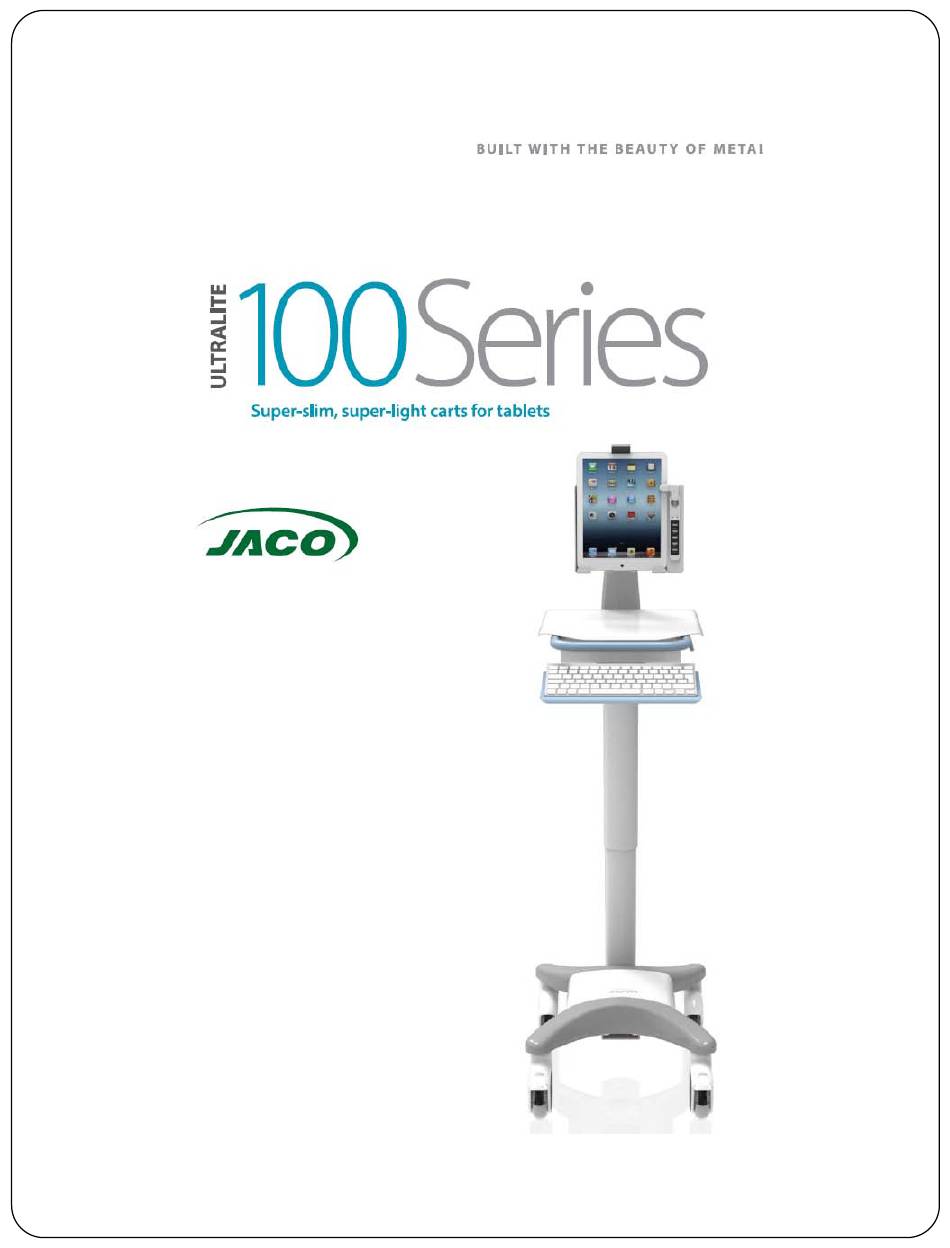

- Page 1 25-0183 Rev 01...
-
Page 2: Table Of Contents
105 C ................8 NSTALLING ABLET OLDER ONTO : ................9 NSTALLING AND LOCKING YOUR ABLET ’ AVE A QUESTION RE HERE TO HELP 1-800-649-2278 ALL US AT OR VISIT JACOINC SUPPORT JACO I . 140 C MA, USA ONSTITUTION RANKLIN... -
Page 3: 100 Series, Model & Part Numbers

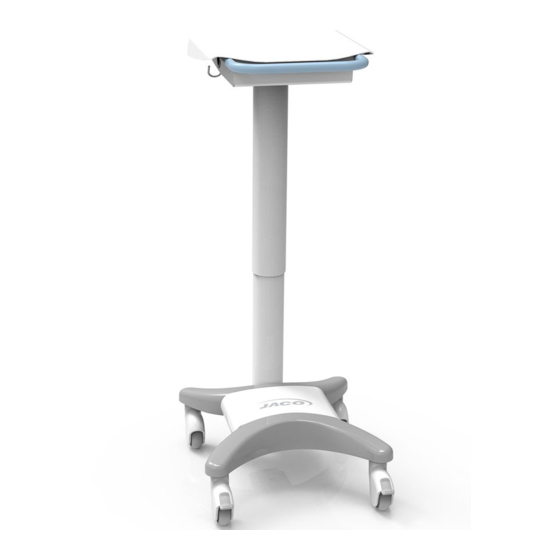

100 Series, Model & Part Numbers Model: 100, Podium Laptop Cart Model: 105, Tablet Cart... -
Page 4: Symbol Information
The 100 Series Mobile Cart is shipped with a P/N & Serial Number label for tracking and service assistance. This label is located on the rear Post Assembly. The information on this label is needed when contacting JACO Technical Service. -
Page 5: General Specification
General Specification Mobile Cart Work Surface Height: 28.5" to 44.5" Keyboard Height: 25.5" to 41.5" (Keyboard tray is optional) 100 Podium Carts - 17" wide x 12.75" Work Surface: 105 Tablet Cart - 13" wide x 12.75" Casters: 3" Single Wheel, Front Locking Wheel Base: 13.5"... -
Page 6: Safety Recommendations And Warnings
Proper Operation, Care & Maintenance Most of the surfaces of your JACO product are finished using a durable, antimicrobial powder coat finish. It is recommended that the surface areas that are in contact with day to day use be cleaned regularly. Always review the cleaning products that are being used and verify that it is safe to use on the powder coat finish. -
Page 7: Basic Mobile Cart Integration & Operation
Unpacking & Assembly: Your JACO Mobile Cart may be delivered stacked with one container on top of another. Please use caution when removing the top Cart for unpacking. This is a two person lift and the top Cart must be placed on the ground before unpacking. - Page 8 Once the top surface is removed, the open bay area is available for cable management. If you did not order the optional retractile extension power cord with your order, rout both the laptop wall power cord and the laptop DC power cord through the side opening as shown. Leave enough length on the laptop DC cable so that it will reach the laptop power port when the laptop is placed on top of the Cart for use.
-
Page 9: Installing Optional Scanner Mount
Installing Optional Scanner Mount If you have ordered a Scanner Holder option, you may need to install this onto the Cart. Remove the work surface as shown above and place the Scanner Holder so that the (2) threaded studs will insert into the hole at on the rear surface. -
Page 10: Installing And Locking Your Tablet
Installing and locking your Tablet: To install your Tablet into the JACO Tablet Holder, place the bottom of the Tablet into the bottom catch flanges and push the Tablet back into the holder. For the style of Locking Tablet Holder shown below, rotate the combination lock clockwise while holding the Tablet in the holder. - Page 11 Place the locking tab back in the same position as it was and fasten using the Phillips Head screw removed earlier. Alternative Tablet Holder The 1 generation of JACO locking tablet holders included a 4 digit electronic push button lock as shown. This combination lock is battery operated (batteries included) and the combination can be changed as needed.
- Page 12 You will need to contact JACO and provide the serial number of the lock which is etched along the side of the front edge as shown below.
