Summary of Contents for Jaco Ultralite 200 Series
- Page 1 25-0184 Rev 01...
-
Page 2: Table Of Contents
: ..................8 NSTALLING THE ONITOR TAND : ..................9 NSTALLING CANNER OUNTS : ............. 9 NSTALLING EYBOARD AND OUSE ONTO THE JACO P ™ W : ............9 PTIONAL ATENTED HEEL TEERING : ..................10 PTIONAL EYBOARD IGHT : ................. 10... -
Page 3: 200 Series

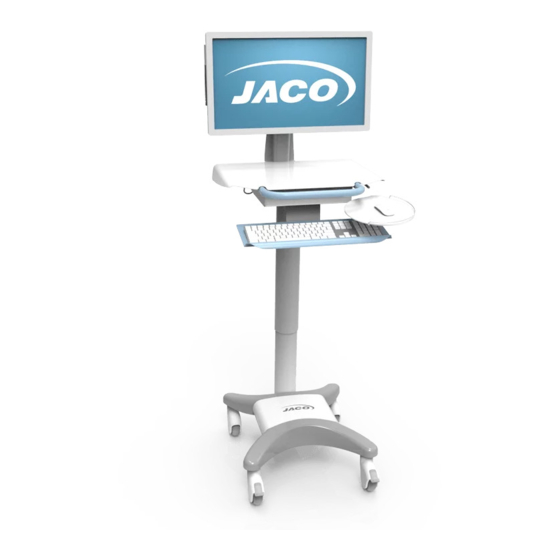

200 Series, Model & Part Numbers Model: 200, Podium Laptop Cart Model: 210, Laptop Secure Cart Model: 220, PC & LCD Cart Model: 225-40, Simplicity 22” LCD Cart Model: 225-41, Simplicity 24” LCD Cart... -
Page 4: Symbol Information
Symbol Information The following symbols are used within this Users Guide and / or on the JACO product. Symbol Meaning This symbol indicates that Caution should be taken. This symbol indicates ATTENTION, consult the accompanying documents Product Labeling All 200 Series Mobile Carts The 200 Series Mobile Cart is shipped with a P/N &... -
Page 5: General Specification
General Specification Mobile Cart Work Surface Height: 30" to 46" Keyboard Height: 25.5" to 41.5" 200 & 210 Laptop Carts - 20" x 18.5" (210 Laptop opening 16.5" x 2.75") Work Surface: 220 PC Cart - 20" x 16" 225-40 & 225-41 PC Carts - 20” x 18.5” Internal Laptop 200 &... -
Page 6: Safety Recommendations And Proper Operation , Care & M
WARNING: If your JACO Mobile Cart has a Drawer System option, limit weight per drawer to 2 lbs max, close drawers when moving and do not transport at more than a 5 degree slope. WARNING: The JACO 225-40 and 225-41 Carts contain a lithium ion prismatic battery pack and as with all batteries, has specific shipping restrictions that must be addressed. -
Page 7: Aintenance
Most of the surfaces of your JACO product are finished using a durable, antimicrobial powder coat finish. It is recommended that the surface areas that are in contact with day to day use be cleaned regularly. Always review the cleaning products that are being used and verify that it is safe to use on the powder coat finish. -
Page 8: Basic Mobile Cart Integration
Unpacking & Assembly: Your JACO Mobile Cart may be delivered stacked with one container on top of another. Please use caution when removing the top Cart for unpacking. This is a two person lift and the top Cart must be placed on the ground before unpacking. -
Page 9: Installing The Monitor
Installing the Monitor Stand: To attach the monitor stand to the Cart you will need a 3/8 nut driver to tighten the 4 nuts. Place the monitor stand so that the 4 threaded studs drop into the 4 holes on the mounting plate that is attached to the rear handle of the Cart. -
Page 10: Installing Scannerm
Optional JACO Patented Trac™ Wheel Steering: The optional Trac Wheel is designed to add true steering to the JACO Mobile Cart. With 4 swivel casters, keeping the Mobile Cart moving in one direction may be challenging as the momentum of the Cart will want to continue in the direction of motion. -
Page 11: Optional Keyboard Light
Touch Pad Access, Keyboard Light Optional Locking Drawer Operation: Optional storage systems for the JACO 200 Series include Non-Locking, Push Button-Locking and Touch- Pad Electronic-Locking options in single 3” high and 7” high drawers as well as dual 3” high drawers. -
Page 12: Aptop Into The Simplicity Cart
If for some reason the electronic pass code system were to fail, there is a rescue key lock located at the back of the drawer system as shown below. Insert, turn and hold key in the unlocked position to allow the drawers to be opened when by-passing the electronic drawer lock system. - Page 13 Once the work surface is opened, you will see the battery and cable management bay as shown below. The laptop power brick should be installed first and plugged into the power cube also shown below. The power brick for the battery pack will already be installed in the cable management area.
- Page 14 For warranty issues with the battery pack or the LCD monitor, please contact the original equipment manufacturer for prompt response. ’ AVE A QUESTION RE HERE TO HELP 1-800-649-2278 ALL US AT OR VISIT JACOINC SUPPORT JACO I . 140 C MA, USA ONSTITUTION RANKLIN...
